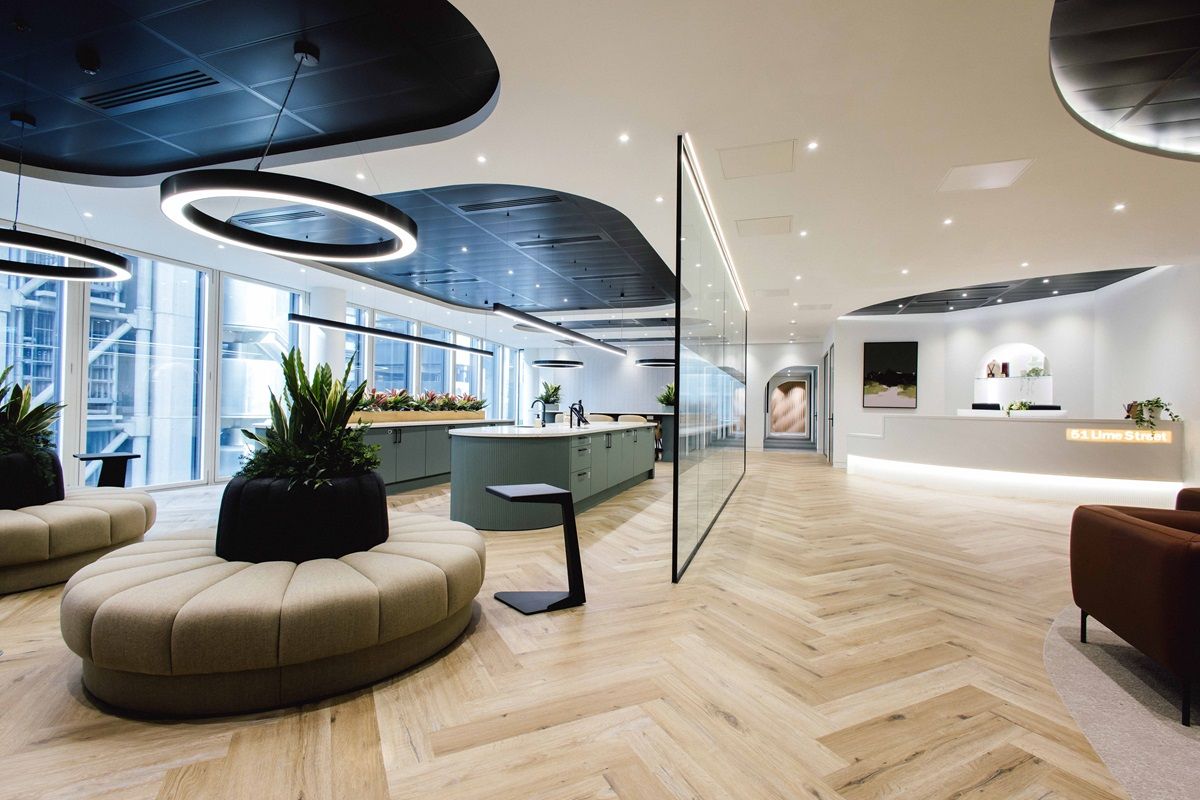

51 Lime Street breakout space with HALO BOYA 90 ring pendants and linear lighting

Specification LED lighting manufacturer

Technically brilliant.

High-specification LED luminaires for consultants, specifiers and lighting designers, supported with Relux-verified calculations, DALI-2 controls and emergency to BS 5266-1.

Explore products Request a lighting design See our projects
Made in Britain

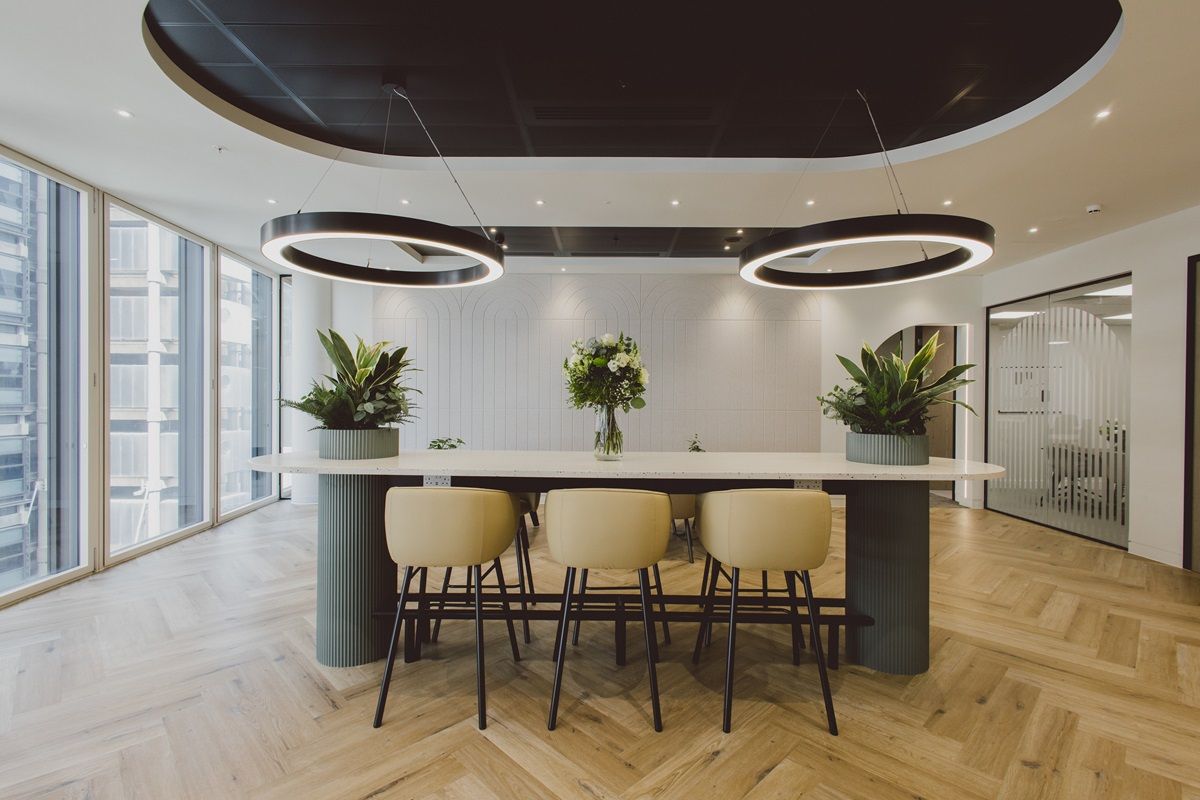

51 Lime Street, London EC3 · HALO BOYA 90 · Lighting design & supply by diVa

01 Specifiers & consultants LDT files, a part-code builder, compliance data and datasheets in one consistent format. Register once for photometrics. Technical resources 02 Lighting design support Send us the reflected ceiling plan. We lay it out with diVa luminaires, calculate in Relux and return a scheduled markup. Request a layout 03 Projects Offices, schools, care homes and circulation spaces, with the products and part codes that went into each. View case studies
Trusted by

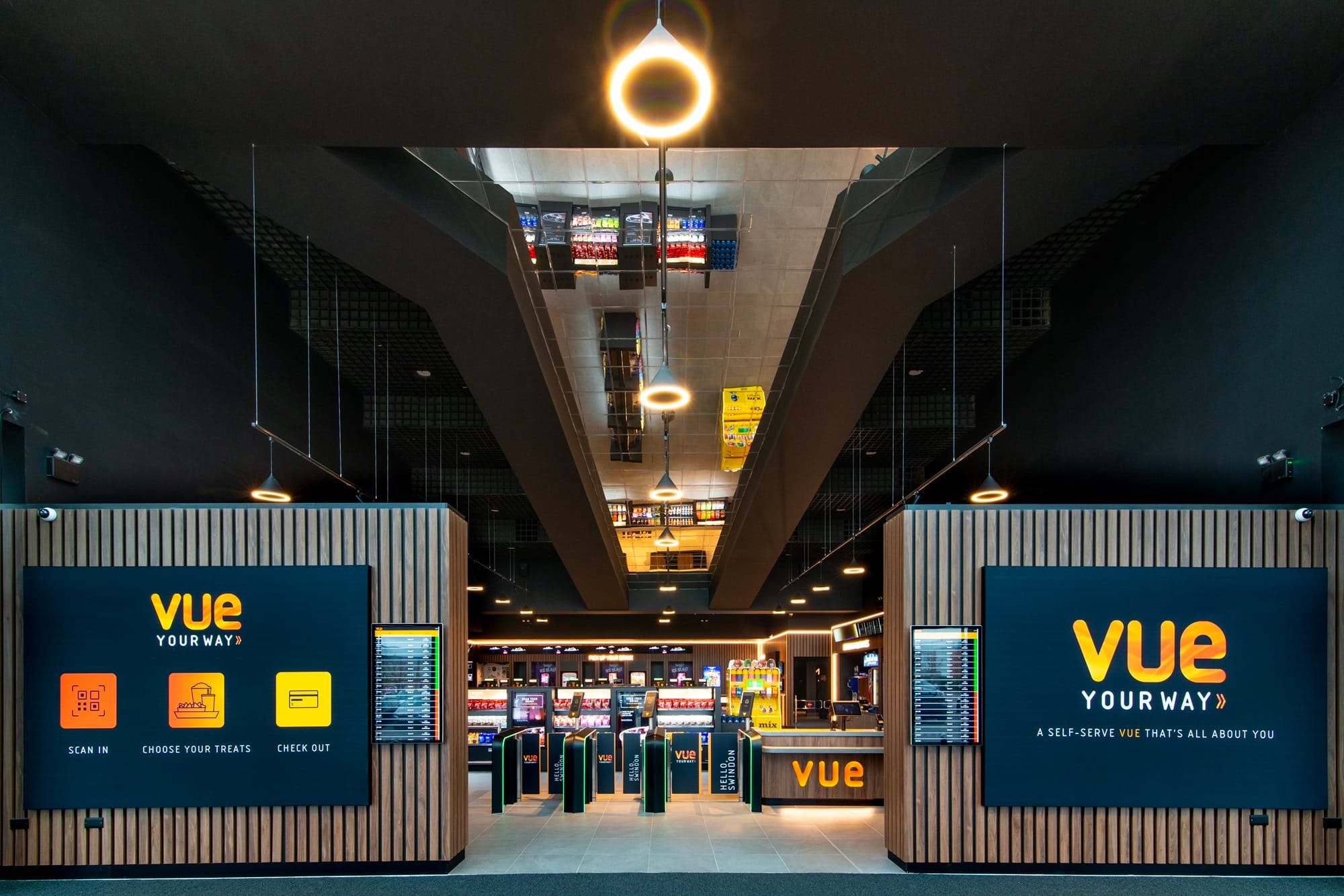

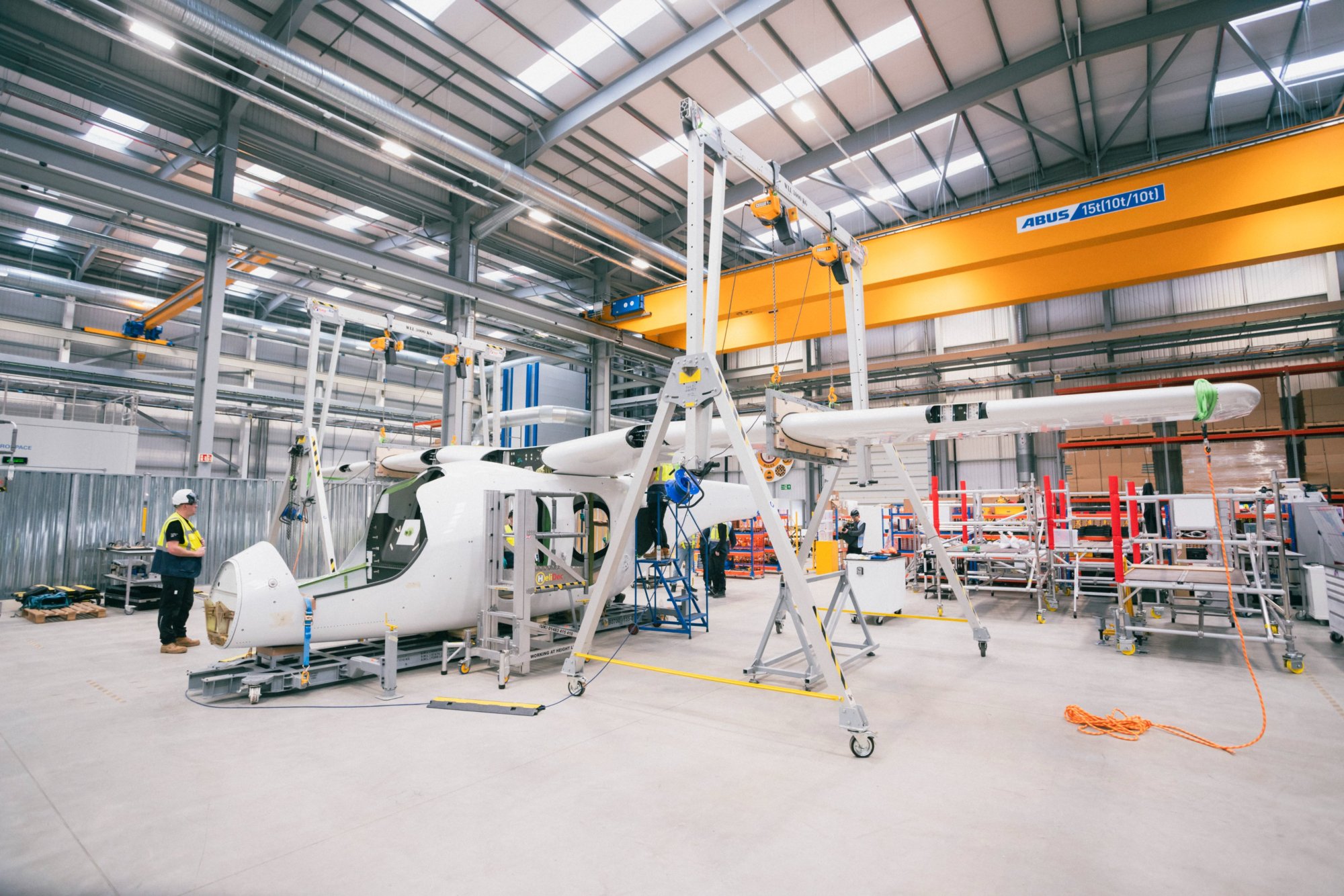

PwC Sky Deloitte National Theatre Telehouse Vue Nationwide University of Surrey Viacom Eton College Vertical Aerospace Cranleigh School Vega Controls
Contact us

Talk to our technical team.

Specification questions, layouts, samples or project pricing: speak to the people who know the products inside out.

Call us Email us

Featured Luminaires

All products

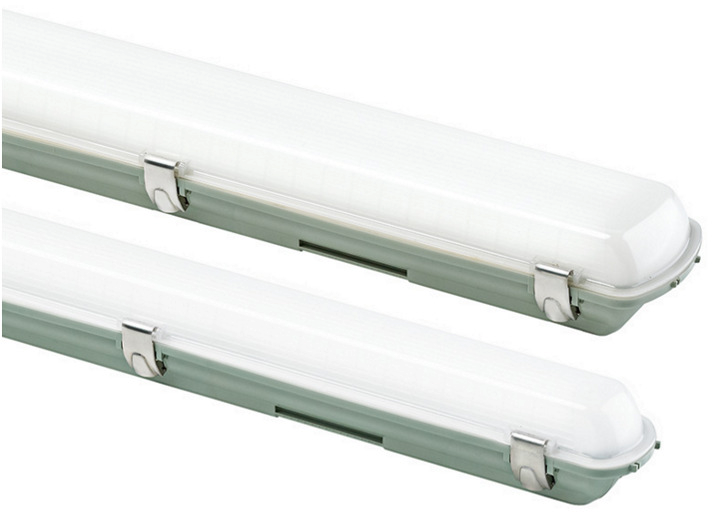

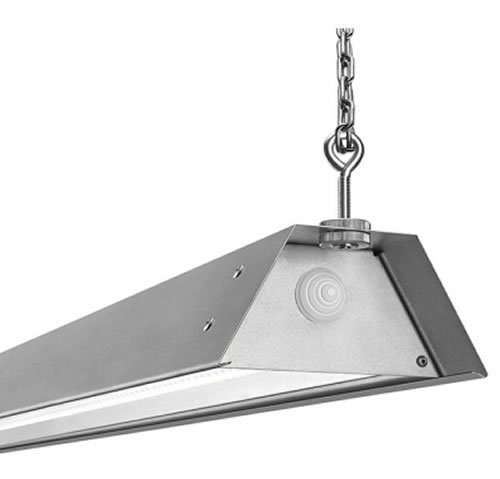

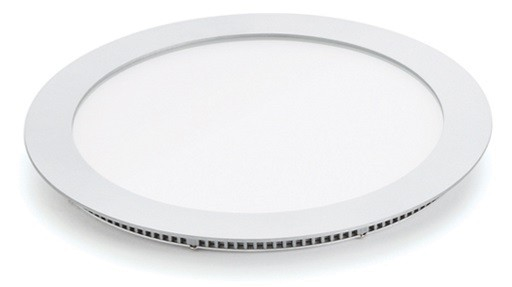

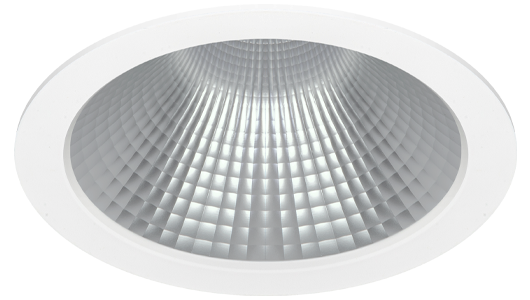

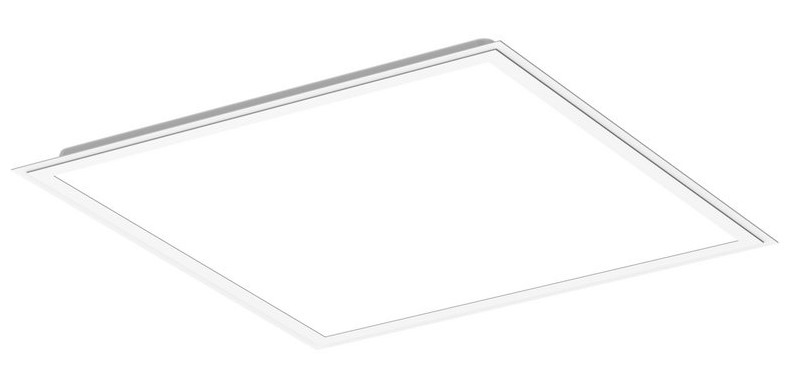

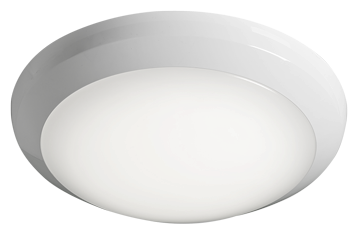

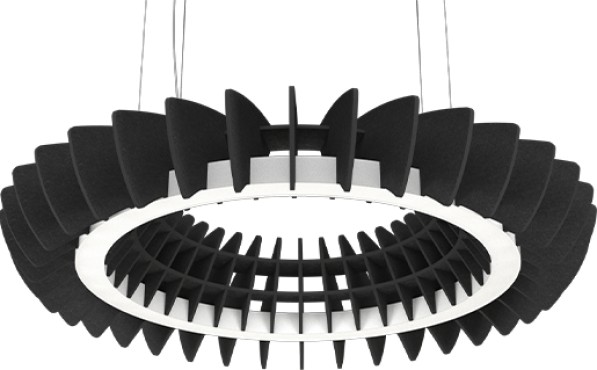

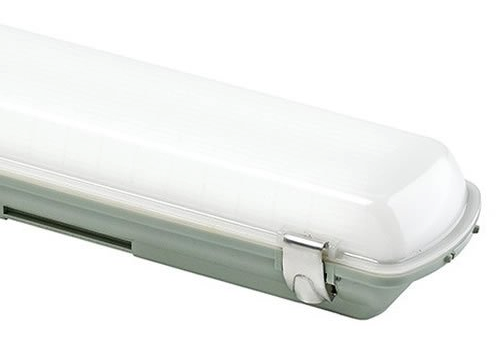

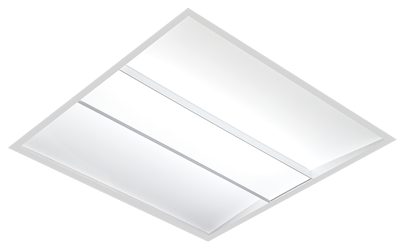

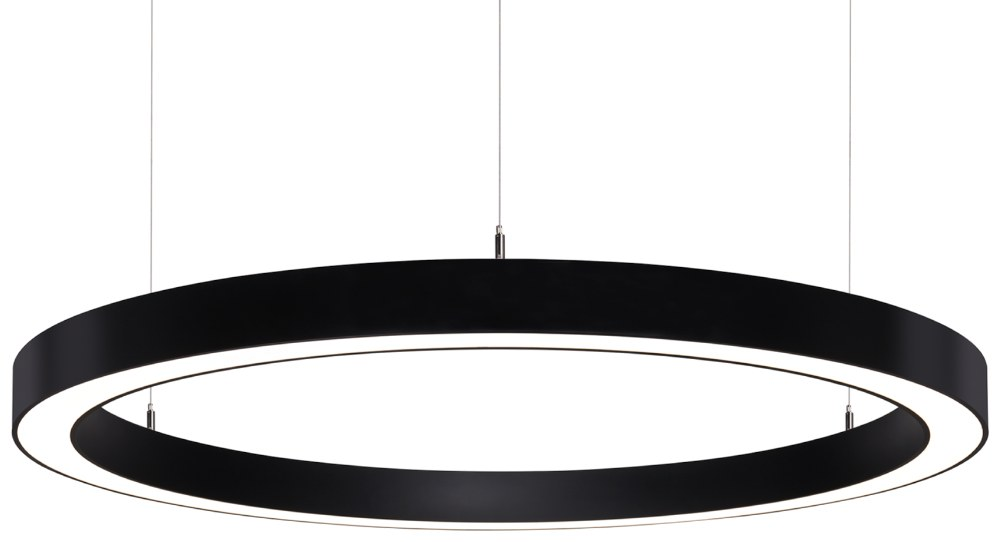

TYRO G4 UGR 600 x 600 back-lit LED panel PANELS & MODULAR TYRO G4 UGR 170 lm/W UGR<19 34 mm deep ≤ 6000 lm PLUTO LED circular LED panel DOWNLIGHTS PLUTO LED 22 mm deep Ø175–500 830 / 840 ≤ 3600 lm VENUS HALO 2 LED ceiling and wall bulkhead, white, clear base CEILING & WALL VENUS HALO 2 LED IP65 · IK10 ≤ 4500 lm (board) 2700–6500 K · TW Ø380 mm HERCULES LED IP65 linear luminaire INDUSTRIAL & HIGH BAY HERCULES LED 212 lm/W IP65 · IK10 75 mm deep ≤ 13000 lm APHRODITE PRO recessed indirect LED luminaire PANELS & MODULAR APHRODITE PRO 113 lm/W UGR<19 100 mm deep ≤ 5125 lm ATHENA ELITE recessed LED downlight DOWNLIGHTS ATHENA ELITE 139 lm/W ≤ 10300 lm IP20 / IP54 / IP65 Ø176 cut-out GLAUCOS industrial LED luminaire on chain suspension INDUSTRIAL & HIGH BAY GLAUCOS ≤ 29000 lm Chain / suspended 4000 / 5700 K 1490 mm MYTI shielded exterior wall luminaire, anthracite OUTDOOR & EXTERIOR MYTI 140 lm/W IP66 · IK10 97.5% downward 3000 / 4000 K HALO BOYA 90 DOWN suspended LED ring, black finish ARCHITECTURAL PENDANTS HALO BOYA 90 DOWN Ø600–1800 90 × 90 mm 3000 / 4000 K ≤ 14656 lm BOYA TORUS acoustic LED ring pendant with felt shade ACOUSTIC BOYA TORUS NRC 0.4 Ø1500–1900 mm 16 felt colours ≤ 11185 lm EXIT LED 1 bulkhead exit sign EMERGENCY & EXIT EXIT LED 1 20 m viewing IP65 · Class II 3 h LiFePO4 150 lm EXIT 3 LED BOX exit sign EMERGENCY & EXIT EXIT 3 LED BOX 36 m viewing 45 mm deep 3 h emergency IP20 · Class II

The detail behind
the light.

Photometrics, controls, emergency and warranty are documented the same way on every range, so your calculations, schedules and compliance statements rest on data you can check.

PHOTOMETRICS Ready for Relux LDT files checked against the datasheet flux and wattage and named by part code, so the right file goes straight into your calculation.
CONTROLS Control, your way Fixed output, DALI and DALI-2, DT8 tunable white, mains dimming, corridor function or Casambi wireless. Tridonic driver as standard.

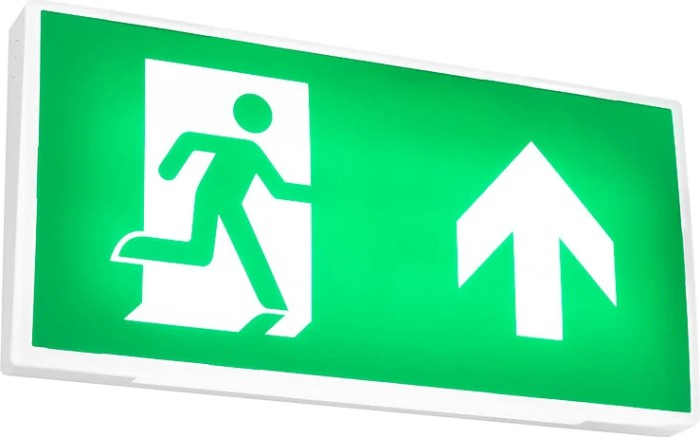

EMERGENCY Emergency, built in 3hr, self-test or DALI-2 emergency, integral or remote, to suit BS 5266-1 schemes and coded the same way on every range.
WARRANTY Five years, in writing Every diVa luminaire carries a five-year warranty, stated on its datasheet.
Free lighting design service

Send us the drawings.
We'll light them.

Our lighting design team turns architects' ceiling plans and floor plans into a complete, calculated scheme with diVa luminaires, general and emergency, ready to drop into your specification. Free of charge, with an industry-leading turnaround.

Relux render of a timber-framed barn café, with suspended linear luminaires between the trusses over dining tables and the servery Relux 3D render · Interior
Converted barn café Timber-framed barn with LIGHT LINE 50 hung between the trusses and PLUTO LED; cylindrical illuminance calculated alongside the horizontal levels.
False-colour illuminance plot of the café floor, mostly in the 300 to 750 lux bands
False-colour illuminance · Café floor
Café floor
480lx
Cylindrical
230lx
Till counter
636lx
Power density
6.94W/m²
Calculation areaEm lxEmin lxUo
Till counter6363220.51
Café floor (0.75 m)4801610.34
Café floor, cylindrical (1.20 m)2301060.46

12 × PLUTO (PLLED/1750/830/240) and 23 × LIGHT LINE 50 (LL50/10000/2000/830/DALI) · 999.2 W over 143.88 m² (1.45 W/m²/100 lx) · MF 0.80

Relux night render of a public transport interchange: column-lit roadways and pathways with bollards around landscaped areas Relux 3D render · Exterior

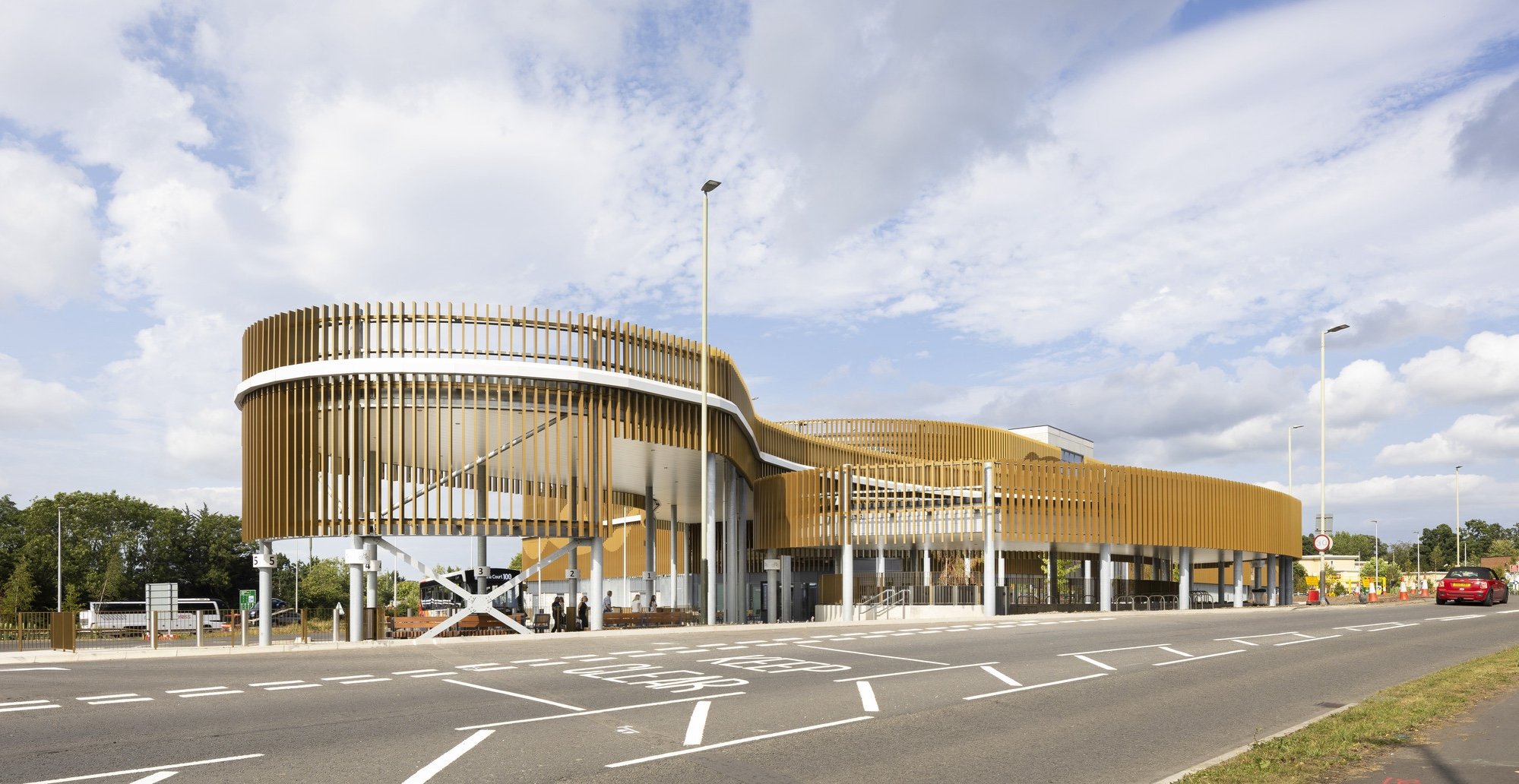

Public transport interchange Roadways, bus stands, car parks and pathways across a 20,650 m² site, with a protected bat corridor calculated in its own right.
Site plan of the interchange with calculation areas outlined and the service yard illuminance shown in false colour
False-colour illuminance · Service yard
Service yard
25.6lx
Uniformity Uo
0.33
Bat corridor
0.51lx
Power density
0.10W/m²
Calculation areaEm lxEmin lxUo
Service yard25.68.30.33
External car park19.06.40.34
Car park entrance15.54.90.32
Roadway 125.47.00.27

Includes 32 × PTEROS 40 W (4,410 lm) columns and 20 × BOUTES LED bollards · 2,028 W over 20,652.71 m² · 8 pathways calculated separately · MF 0.80

Example diVa lighting markup: ground-floor reflected ceiling plan with luminaire symbols, legend, area schedule and building totals Example markup · luminaire key · area schedule · totals

How it works

  1. 01 Send your drawingsReflected ceiling plans or floor plans as PDF, with room uses and any target lux levels.
  2. 02 Layout and calculationLuminaires placed at true scale and verified in Relux against EN 12464-1: maintained illuminance, uniformity and UGR.
  3. 03 Emergency and exitEscape-route, open-area and exit signage positions to BS 5266-1.
  4. 04 Marked-up plans and scheduleMarked-up drawings back with a luminaire key, per-area schedule, building totals and full part codes.
Request a lighting design What a report can include

Featured projects

All case studies

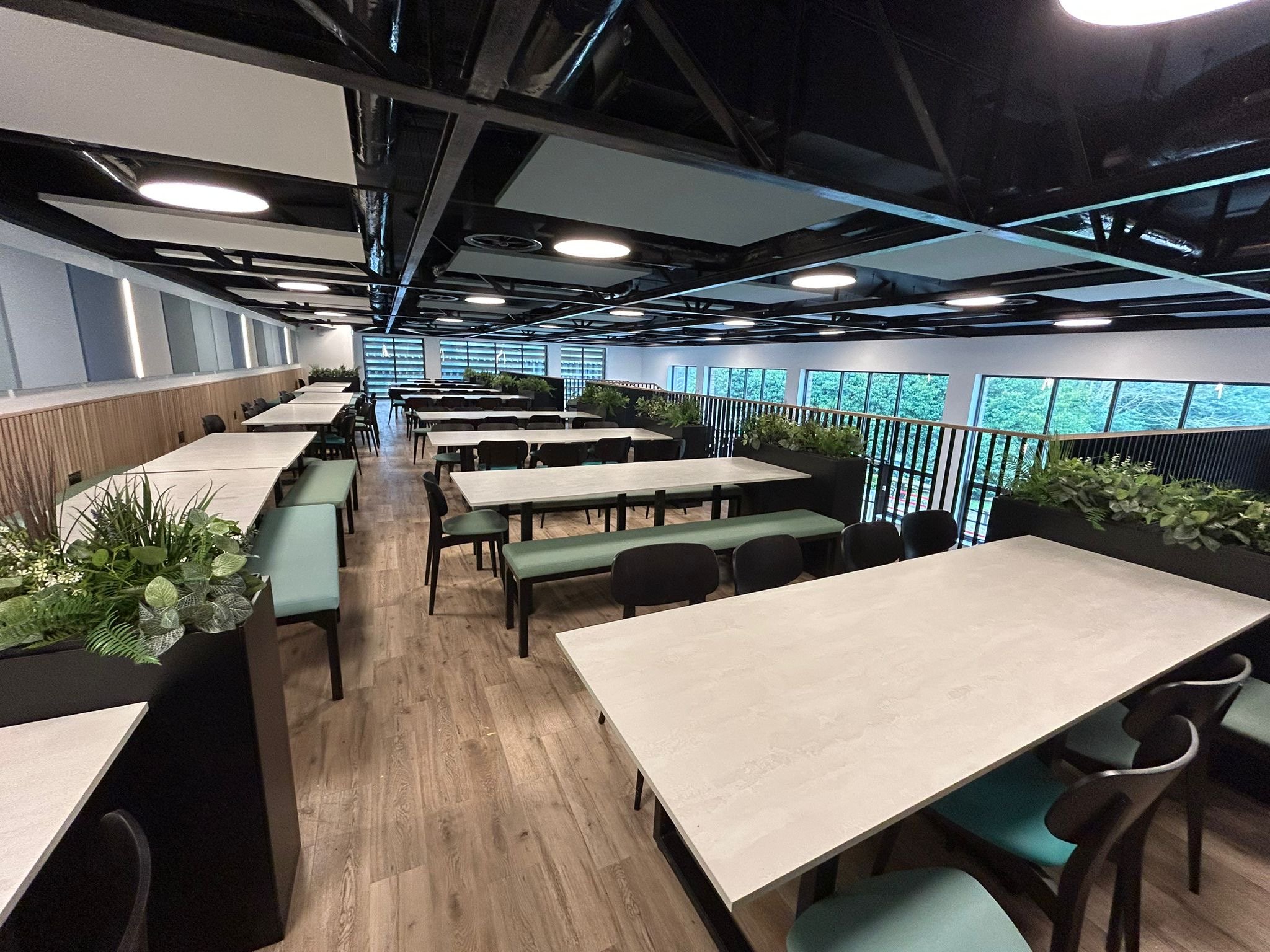

Lingfield College dining hall mezzanine lit by diVa PLUTO XL SUSPENDED pendants set among acoustic rafts EDUCATION · LINGFIELD, SURREY · LIGHTING DESIGN & SUPPLY Lingfield College A senior school dining hall redeveloped around PLUTO XL SUSPENDED in bespoke diameters to co-ordinate with the acoustic rafts, with surface LIGHT LINE 50 made to 3.4 m lengths for a pain-free install.

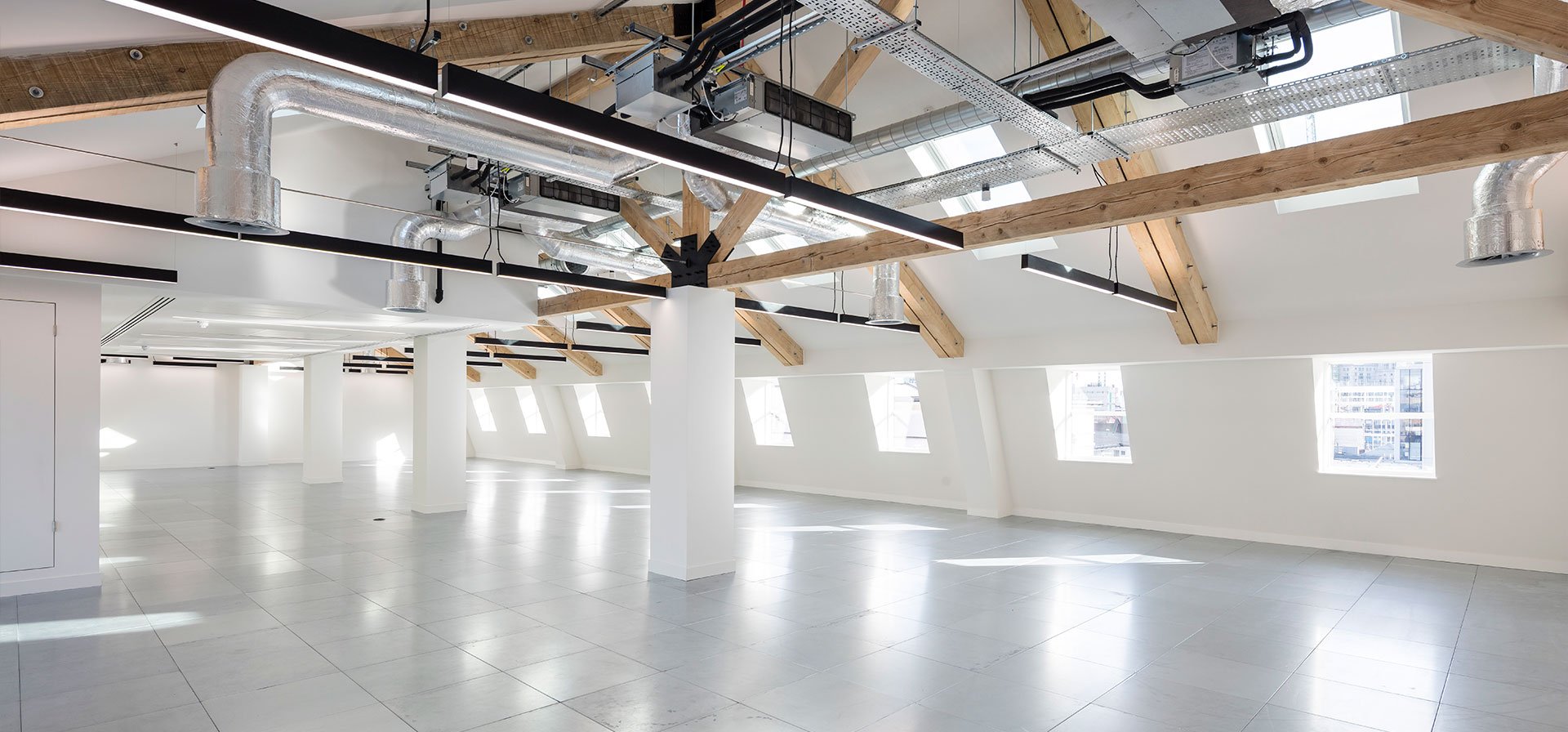

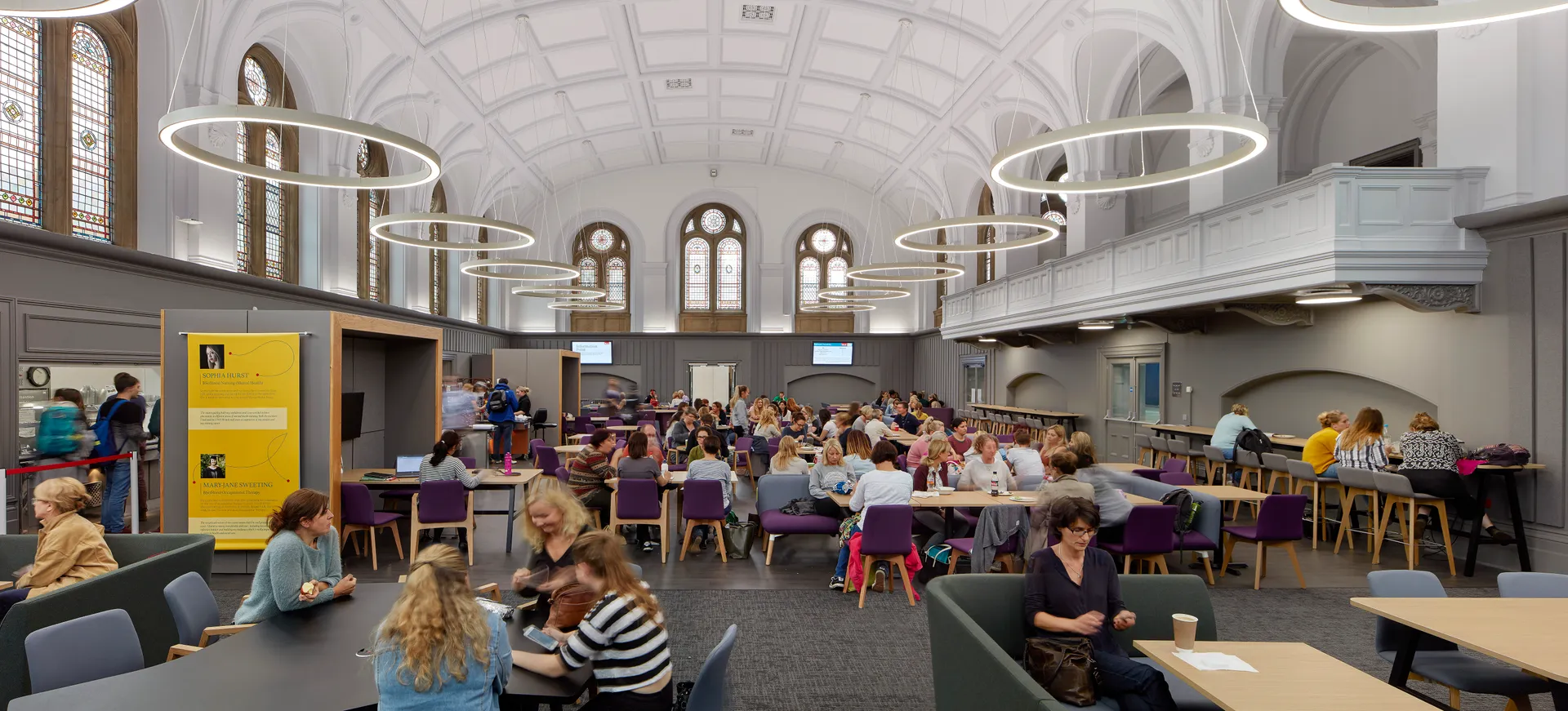

UWE Glenside Hub social learning space lit by 2.4 metre diameter diVa HALO ring pendants EDUCATION · BRISTOL UWE Glenside Hub HALO rings at 2.4 m diameter · direct and indirect light 45 Folgate Street open-plan office with suspended LIGHT LINE 50 under exposed timber trusses OFFICES · SPITALFIELDS 45 Folgate Street LIGHT LINE 50 · LIGHT LINE 60 · runs up to 4.5 m

Browse by category

Panels & Modular Downlights Linear Architectural Pendants Decorative Pendants Track & Spotlights Ceiling & Wall Acoustic LED Strip & Profiles Industrial & High Bay Emergency & Exit Outdoor & Exterior Bespoke & Specials Sensors, Switches & Accessories Bespoke

Browse by application

Each application page sets out the EN 12464-1 targets, the ranges that meet them and the emergency approach.

Workplace Schools & universities Healthcare Retail Hospitality & leisure Culture & civic Corridors & circulation Residential & care homes Industry & warehousing Data centres Cleanrooms & hazardous areas Exterior & transport
Photometrics Register once. Photometrics on tap. Name, company, role and email. We send a sign-in link; set a password later if you prefer. Datasheets and installation instructions stay open to everyone.
Register for photometrics
