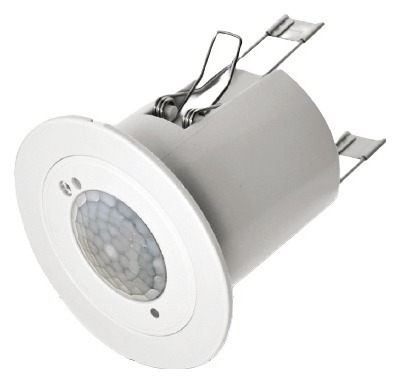

PIR/CBU-CEFL is the Danlers flush ceiling PIR occupancy detector and photocell for Casambi: it reports movement and daylight to the Casambi network, and the Casambi luminaires do the rest. Set time lag and daylight threshold in the free Casambi app; push it into a 73 / 75mm hole and the room runs itself.
Ordering code
Build your part code from the key below, or ask us and we’ll specify it for you.
Example: PIR/CBU-CEFL
Features
- 01Danlers PIR occupancy detector and photocell for Casambi
- 02Works only with Casambi enabled luminaires and controls
- 03Flush ceiling mount through a Ø73 / 75mm hole
- 04Daylight threshold 5 to 2,000 lux
- 05Time lag and daylight threshold set in the Casambi app
- 06Recommended mounting height 2.4 to 5 m
- 07Loop in / loop out terminals, 0.5 to 2.5mm²
- 08Class II, IP20; matt white RAL 9003, 95 g
Specification
- IP
- IP20
- Controls
- Casambi (bDW): occupancy and daylight to the Casambi network
- Mounting
- Flush ceiling, spring clips
- Supply
- 220-240 V AC 50 Hz
- Electrical class
- Class II
- Dimensions
- Ø85mm, 79mm overall; Ø73 / 75mm hole; ceiling void at least 78mm; 95 g
- Warranty
- Danlers 5-year warranty from the date of manufacture.
Control gear, standards & warranty
- UKCA
- CE
- Class II
- IP20
Danlers CBU-CEFL Casambi PIR occupancy detector and photocell for flush ceiling mounting; works only with Casambi enabled equipment. EN 60669-2-1. Danlers 5-year warranty from the date of manufacture.
Warranty: Danlers 5-year warranty from the date of manufacture. Sensors, controls, switches, sockets and accessories carry their own warranty, product by product. See the warranty policy.
Downloads
- Datasheet PIR-CBU-CEFL.pdf Open Download
- Installation instructions CBU-CEFL-INSTALLATION.pdf Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
