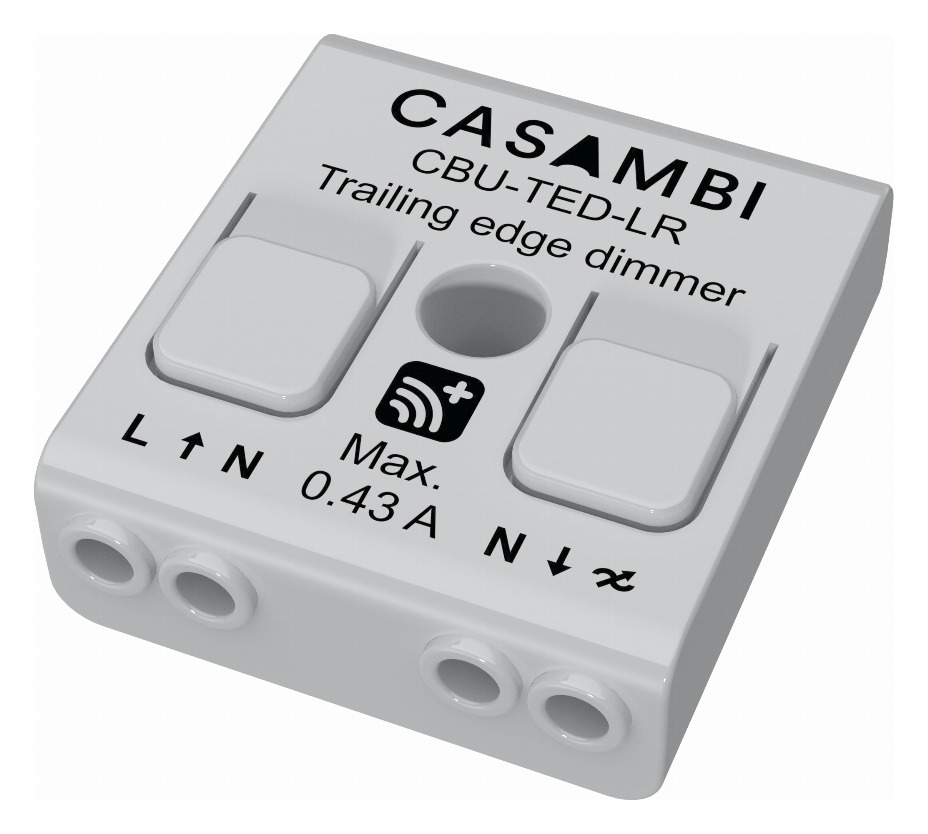

CBU-TED-LR is the Casambi long-range trailing edge dimmer that brings any dimmable mains load into a Casambi network: dimmable LED lamps, trailing edge LED drivers, halogen and incandescent, up to 100 W. Small enough to sit behind a wall switch, inside a luminaire or in a ceiling outlet box.
Ordering code
Build your part code from the key below, or ask us and we’ll specify it for you.
Example: CBU-TED-LR
Features
- 01Casambi long-range Bluetooth trailing edge dimmer
- 02Dims mains loads up to 100 W at 230 V AC
- 03Dimmable LED lamps, LED drivers, halogen and incandescent
- 04Behind a wall switch, in a luminaire or a ceiling box
- 05Dims from a standard wall switch without the app
- 06Can act as a mains-activated presence or switch input
- 07Overcurrent and over temperature protection
- 08IP20; 40.4 x 36.3 x 14mm, 15 g
Specification
- IP
- IP20
- Controls
- Casambi (bDW); trailing edge mains dimming up to 100 W at 230 V AC
- Mounting
- Behind a wall switch, inside a luminaire or in a ceiling outlet box (2 x Ø3.5mm fixing holes)
- Supply
- 85-240 V AC 50 / 60 Hz
- Dimensions
- 40.4 x 36.3 x 14mm; 15 g
- Warranty
- Three-year warranty on this product.
Control gear, standards & warranty
- UKCA
- CE
- RED
- IP20
Casambi CBU-TED-LR long-range Bluetooth trailing edge dimmer for dimmable mains loads up to 100 W at 230 V AC; minimum load 1 W; no inductive loads. Three-year warranty on this product.
Warranty: Three-year warranty on this product. Sensors, controls, switches, sockets and accessories carry their own warranty, product by product. See the warranty policy.
Downloads
- Datasheet CBU-TED-LR.pdf Open Download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
