CLIO SQUARE

Range code CLSQ
CLIO SQUARE

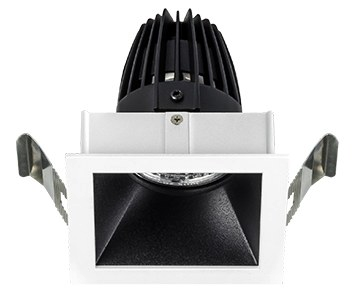

CLIO SQUARE takes the CLIO's low-glare optic into a crisp 85mm square: a matt black darklight baffle holds UGR below 10, as a downlight or a tiltable asymmetric wall washer. Tridonic engines from 650 to 1,300 lm, an IP44 lens and a plaster-in trim; twin and triple heads in CLIO SQUARE MULTI. Square deal, round numbers.

UGR<10 Darklight baffle, symmetric
Up to1,300lm Output (840)
81 × 81mm Cut-out; bezel 85 x 85mm
IP44 Protective lens, front
Cut-out 81 × 81mm (also plaster-in), bezel 85 × 85mm; 95mm deep (asymmetric 105mm); ceilings up to 30mm; 0.3 kg IP44 840 · 830 · 927 White RAL 9003
Datasheet (PDF) Technical data Part-code builder
Applications
Reception areas Meeting rooms Offices Corridors Lift lobbies Retail Feature walls

Technical information

Enter the bold lumen value in Relux.

Higher emergency outputs (3 W and 6 W) on request.

Single, asymmetric 40°
Output lmWlm/WEmergency lm (2 W)Photometric file
5506.584.6180 CLSQ-650-840-ASY-40-BB.LDT
7508.588.2185 CLSQ-900-840-ASY-40-BB.LDT
110012.091.7195 CLSQ-1300-840-ASY-40-BB.LDT

Light distribution

cd/klm
50010001500200025003000
C0–C180 C90–C270

Intensities in cd/klm, so the shape applies to every output.

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range
CLIO SQUARE
2 Output
900 output (8.5 W; 927 10.0 W)
3 Colour temperature
80 CRI, 4000 K
4 Control gear
Fixed output
5 Bezel colour
White RAL 9003
6 Distribution
Symmetric downlight
7 Beam
40 deg reflector
8 Baffle
Matt black darklight baffle
9 Installation
Standard TLT: Only with asymmetric wall washer
10 Emergency
No emergency
Your part code The output code is the 840 symmetric 40° figure and covers all colour temperatures; see the technical table for each lumen value. Asymmetric: narrow beam or white baffle files on request. Twin and triple heads: CLIO SQUARE MULTI (CLSQ/2/900...).
Add to schedule

Also in the range

CLIO DOWNLIGHTS · RECESSED, WALL WASHER OPTION CLIO UGR<10 Up to 1,300 lm Ø81 mm IP44 CLIO SQUARE MULTI DOWNLIGHTS · RECESSED, TWIN AND TRIPLE CLIO SQUARE MULTI UGR<10 Up to 3,850 lm 2 or 3 IP44
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with CLIO SQUARE, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

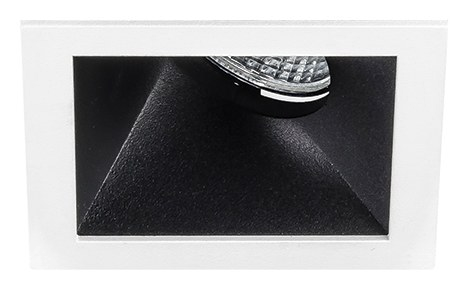

  1. 01Single-head square downlight (SY) or asymmetric wall washer (ASY)

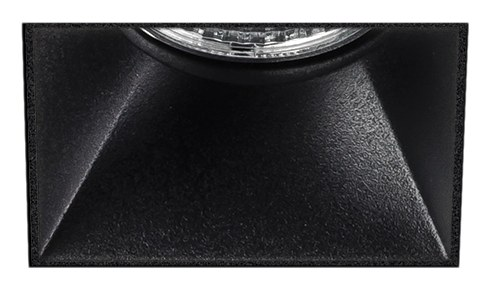

  2. 02Matt black darklight baffle RAL 9005, UGR<10; white softlight baffle option
  3. 03Precision moulded 40° reflector, or 20° narrow beam

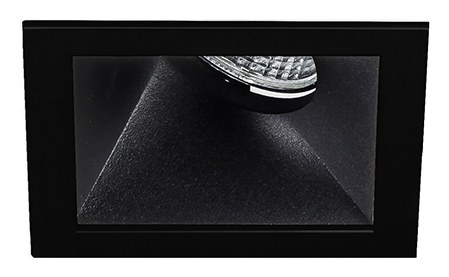

  4. 04Die-cast aluminium bezel, white RAL 9003; black or any RAL to order
  5. 054000 K or 3000 K at CRI >80, or 2700 K at CRI 90
  6. 06Tridonic driver: fixed output, DALI (also DSI), switchDIM, mains dimming or Casambi
  7. 07Emergency on every version: 3hr manual test, self-test or DALI-2 (EMD2)

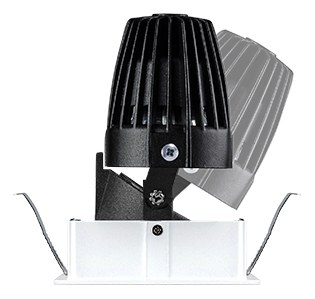

  8. 08IP44 protective lens; plaster-in trim; tiltable wall washer; L90/F10 >55,000 h

Specification

IP
IP44
UGR
<10 (symmetric)
Lifetime
55,000 h
Colour options
840, 830, 927
Controls
FI, DALI (also DSI), swDIM, MDIM, bDW
Emergency
EM, EMST, EMD2 (every version)
Mounting
Recessed or plaster-in; asymmetric version tiltable (TLT)
Finish
WH White (RAL 9003), BL Black (RAL 9005)
Supply
230 V 50 Hz
Electrical class
Class II
Dimensions
Cut-out 81 × 81mm (also plaster-in), bezel 85 × 85mm; 95mm deep (asymmetric 105mm); ceilings up to 30mm; 0.3 kg
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE
  • RoHS
  • WEEE
  • 230 V 50 Hz
  • Class II
  • IP44
  • Emergency BS 5266-1

Tridonic driver as standard. Fixed output, DALI (also DSI), switchDIM, mains dimming or Casambi wireless (bDW). Emergency on every version. IP44 front, IP20 rear.

diVa five year warranty

Downloads

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
