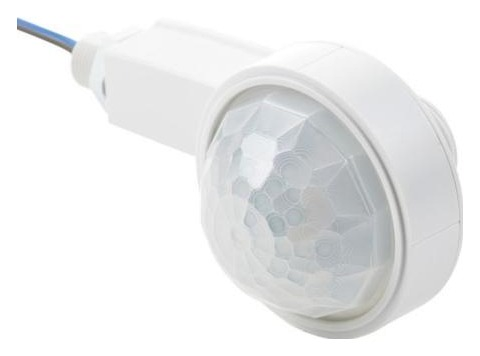

PIR/EBDHS-MB-DD is CP Electronics' patented long range high bay PIR: mounted on the luminaire through an M20 hole, it covers Ø40 m of floor from 15 m and works up to 20 m. DALI / DSI dimming for up to 10 drivers, daylight sensing and IP65, so warehouse and factory lighting only runs where people are.
Ordering code
Build your part code from the key below, or ask us and we’ll specify it for you.
Example: PIR/EBDHS-MB-DD

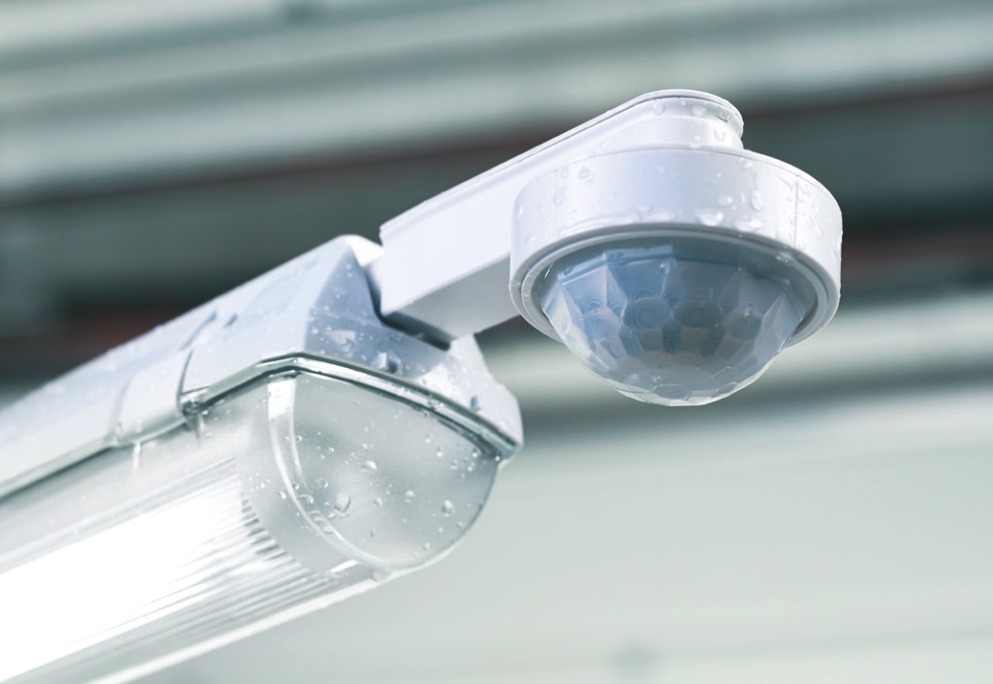

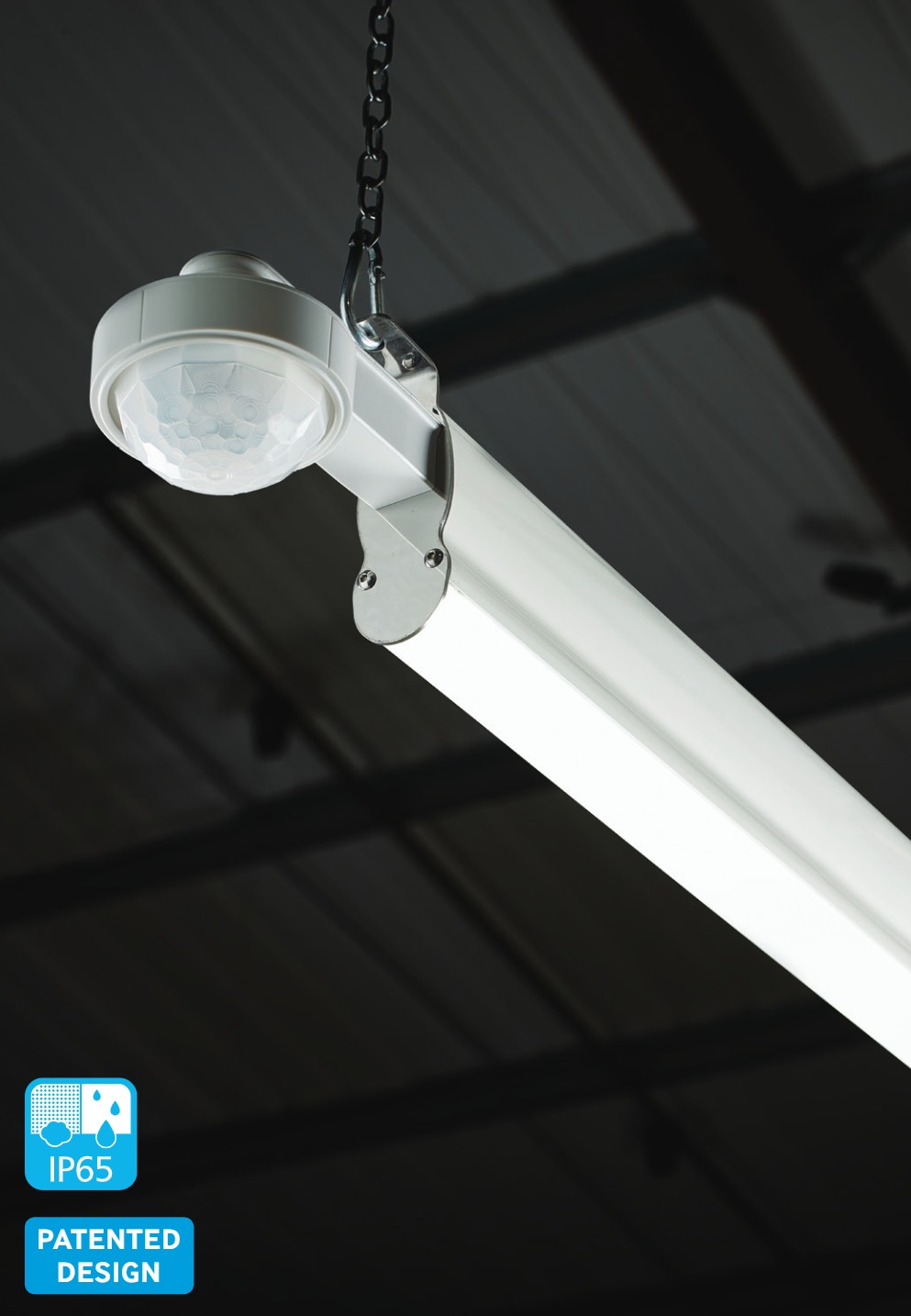

Installation images
Features
- 01CP Electronics long range high bay PIR, luminaire mounted
- 02Ø40 m detection on the floor from 15 m; up to 20 m mounting
- 03DALI / DSI digital dimming, up to 10 drivers
- 04Switched output 2 A for the luminaire load
- 05Daylight sensing, 0 to 2,000 lux
- 06Retrofits to commercial luminaires and basic battens
- 07M20 x 1.5 fixing; IP65, IK05
- 08Set up with the CP Electronics handsets
Specification
- IP
- IP65
- Controls
- DALI / DSI digital dimming, up to 10 drivers; 2 A switched output
- Mounting
- Luminaire mounted through an M20 hole
- Supply
- 230 V AC 50 Hz
- Electrical class
- Class II
- Dimensions
- 172 x 74mm; body 151mm; M20 x 1.5 boss 33mm; 0.15 kg
- Warranty
- CP Electronics 5-year warranty.
Control gear, standards & warranty
- UKCA
- CE
- Class II
- IP65
CP Electronics EBDHS-MB-DD luminaire mounted high bay PIR presence detector with DALI / DSI digital dimming (up to 10 drivers) and daylight sensing. EMC 2014/30/EU, LVD 2014/35/EU. CP Electronics 5-year warranty.
Warranty: CP Electronics 5-year warranty. Sensors, controls, switches, sockets and accessories carry their own warranty, product by product. See the warranty policy.
Downloads
- Datasheet PIR-EBDHS-MB-DD.pdf Open Download
- Installation instructions EBDHS-MB-DD-INSTALLATION.pdf Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
