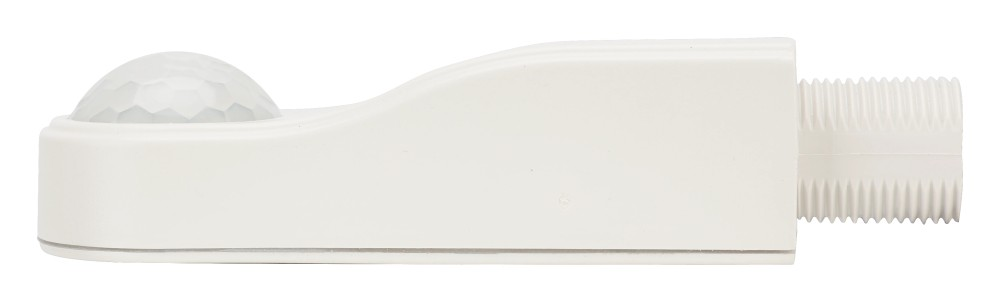

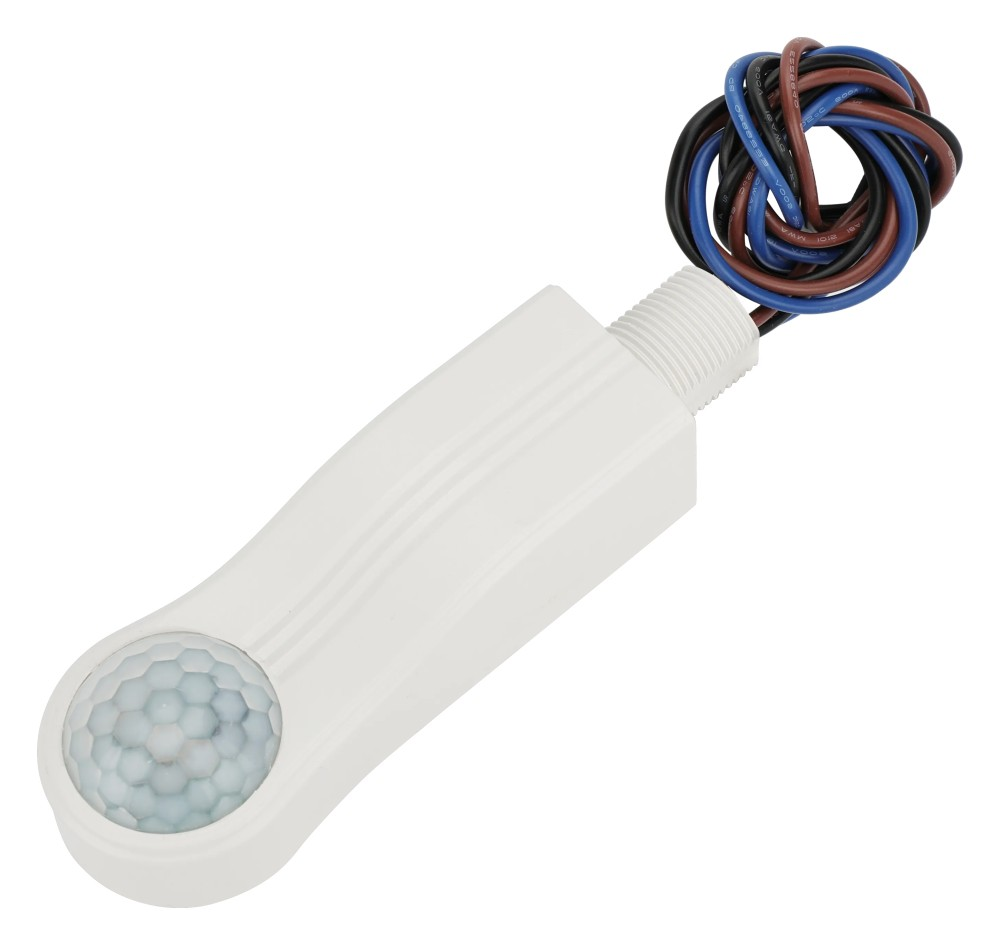

PIR/HC049S is Hytronik's batten-fit high bay PIR with a relay output: up to 12 m mounting height, zero-cross switching of up to 800 W resistive or 400 VA capacitive, and a daylight sensor that keeps the lights off when there is enough daylight. Simple, standalone switching for fixed-output (FI) industrial battens.
Ordering code
Build your part code from the key below, or ask us and we’ll specify it for you.
Example: PIR/HC049S
Features
- 01Hytronik high bay PIR, batten-fit, relay on / off output
- 02Mounting heights to 12 m; detection across up to 20 m
- 03Switches up to 800 W resistive, 400 VA capacitive
- 04Zero-cross relay switching, 80 A inrush withstand
- 05Built-in daylight sensor; twilight (dusk / dawn) mode
- 06Set up by IR remote HRC-11; optional shielding cap
- 07M20 x 1.5 fixing with IP spacer and gasket; IP65
- 08107 x 34 x 28.2mm, 600mm flying leads; Class II
Specification
- IP
- IP65
- Controls
- Relay on / off (fixed-output gear)
- Mounting
- Batten-fit / bolt-on through an M20 hole in the luminaire
- Supply
- 220-240 V AC 50 / 60 Hz
- Electrical class
- Class II
- Dimensions
- 107 x 34 x 28.2mm; Ø40mm lens; M20 x 1.5 fixing; 600mm leads
- Warranty
- Hytronik 5-year warranty (Hytronik standard guarantee policy).
Control gear, standards & warranty
- UKCA
- CE
- ENEC
- Class II
- IP65
Hytronik HC049S high bay PIR motion sensor with zero-cross relay on / off output for fixed-output (FI) gear and built-in daylight sensor. EMC EN 55015, EN 61547, EN 61000-3-2 / -3-3; LVD EN 61347-1, EN 61347-2-11; ENEC. Hytronik 5-year warranty (Hytronik standard guarantee policy).
Warranty: Hytronik 5-year warranty (Hytronik standard guarantee policy). Sensors, controls, switches, sockets and accessories carry their own warranty, product by product. See the warranty policy.
Downloads
- Datasheet PIR-HC049S.pdf Open Download
- Installation instructions HC049S-INSTALLATION.pdf Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
