HYPERION BLIND

Range code HYPERION BLIND
HYPERION BLIND

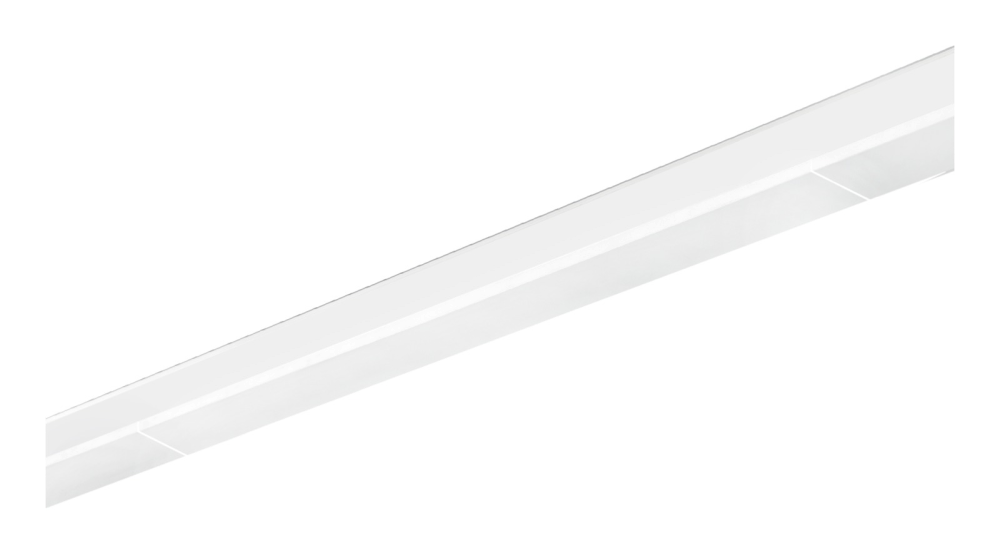

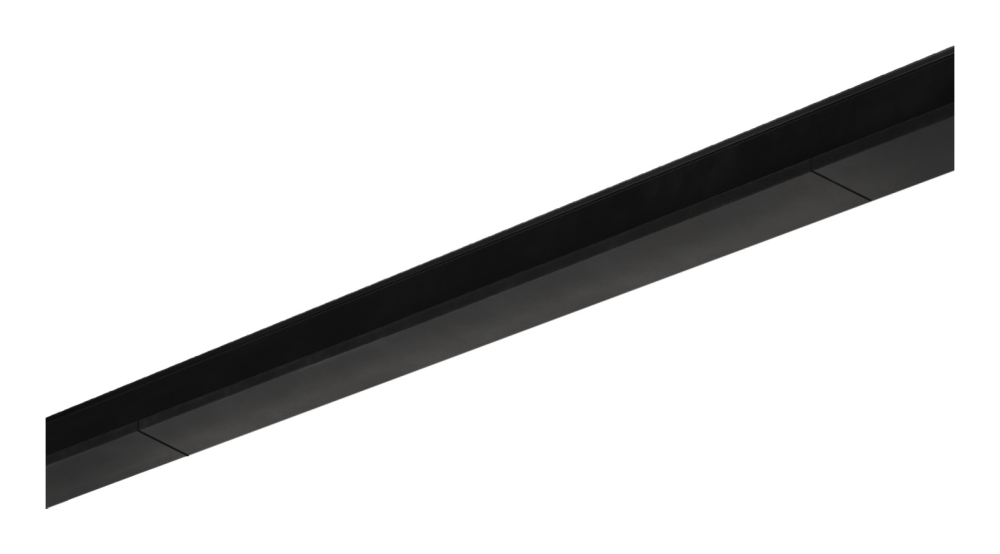

HYPERION BLIND closes the HYPERION trunking rail wherever no light is needed: a 14mm aluminium cover in matt white or matt black that clicks into the rail between modules, so the run stays continuous and clean. The quiet part of the line.

14mm Cover depth
1435 / 2007mm Lengths
Datasheet (PDF) Part-code builder Downloads
Applications
Supermarkets Retail Warehouses Logistics Showrooms Manufacturing

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range
HYPERION
2 Product
Blind cover
3 Length
1435mm cover
4 Finish
Matt white RAL 9003
Your part code Fits the HYPERION TRUNKING rail; order rails, couplers, end caps and suspension on their own lines. Plan a complete run in the HYPERION system builder
Add to schedule

Also in the range

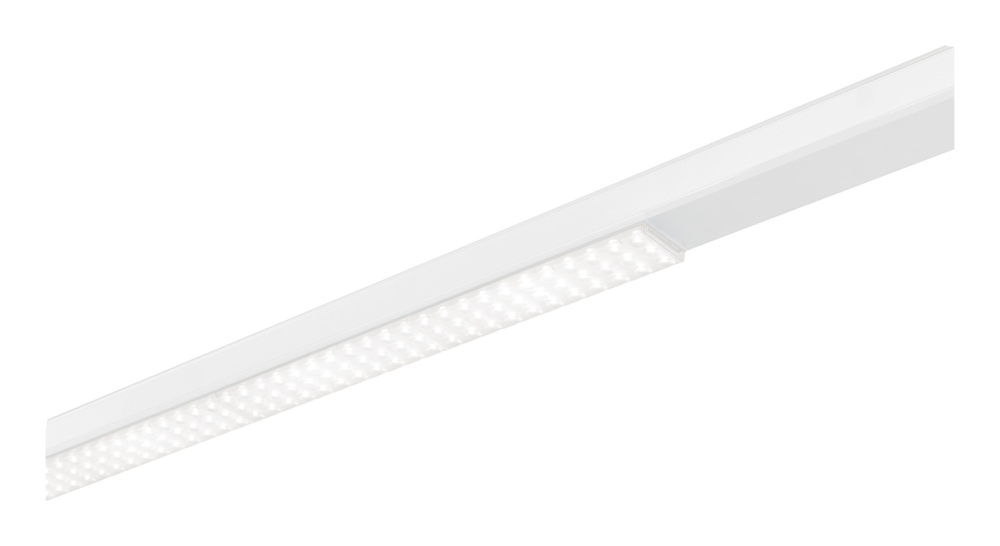

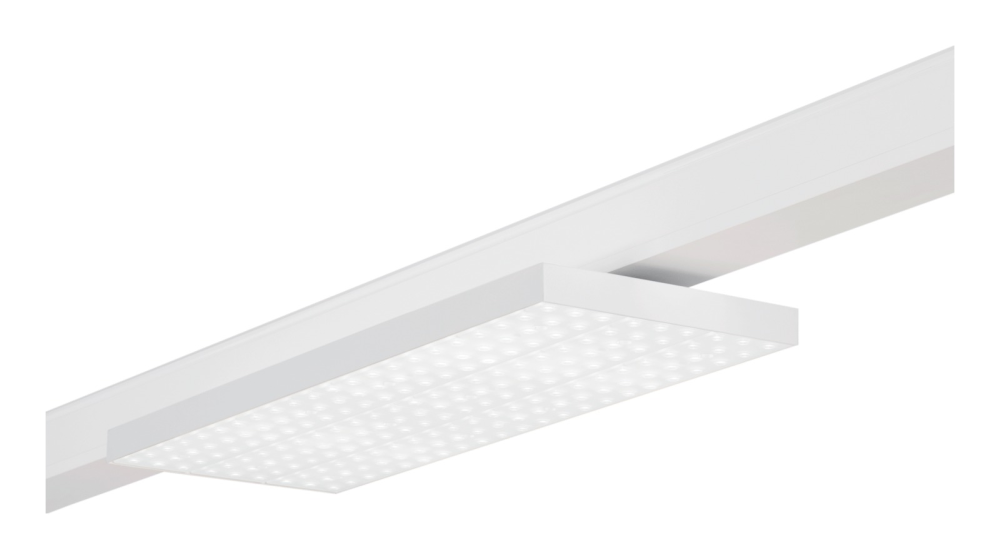

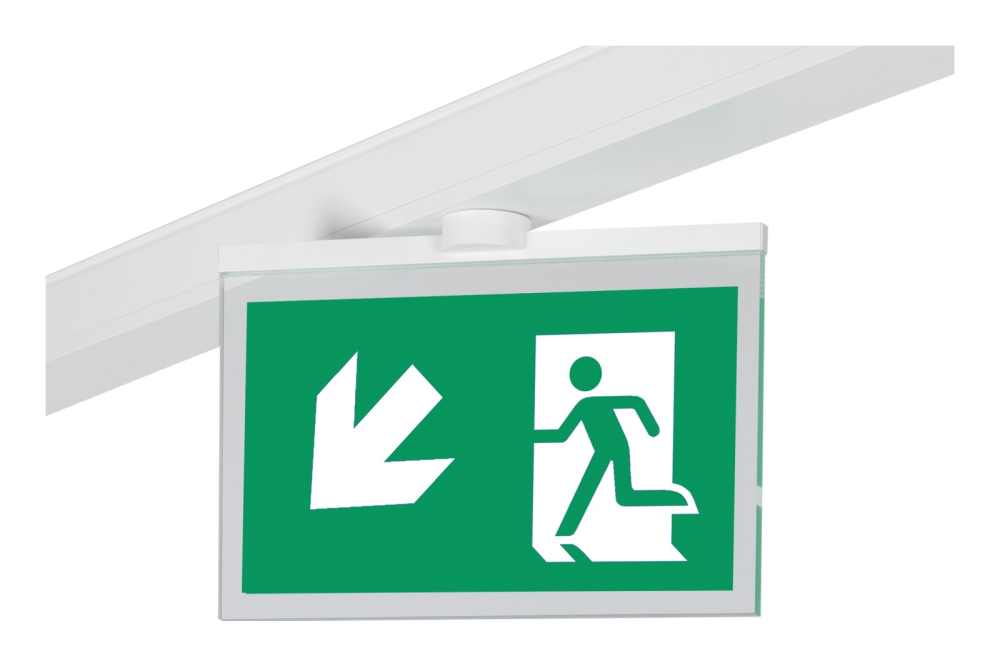

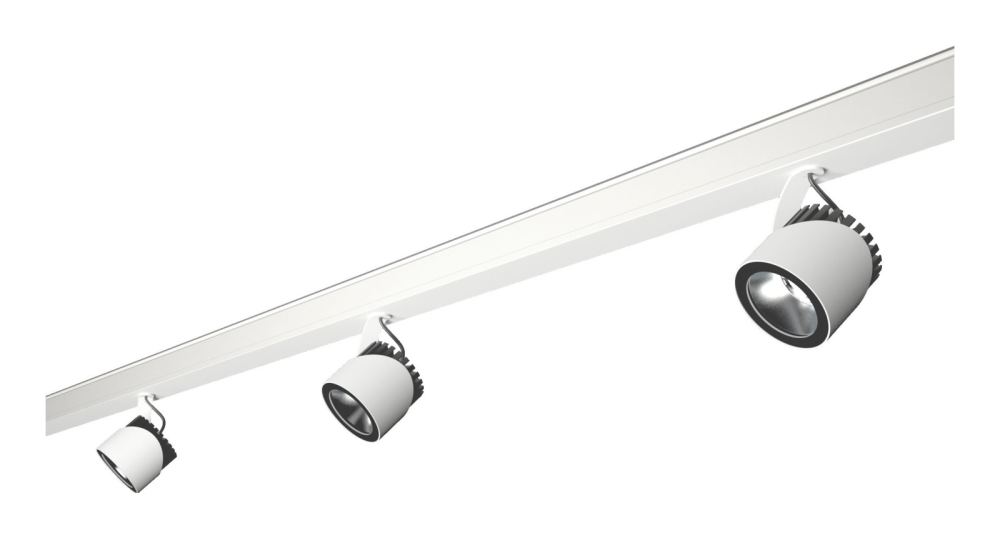

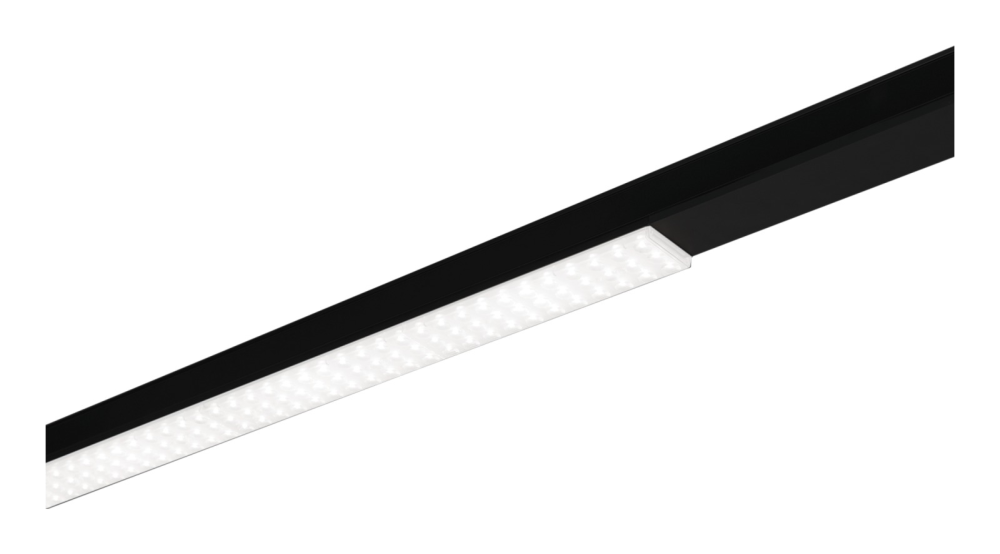

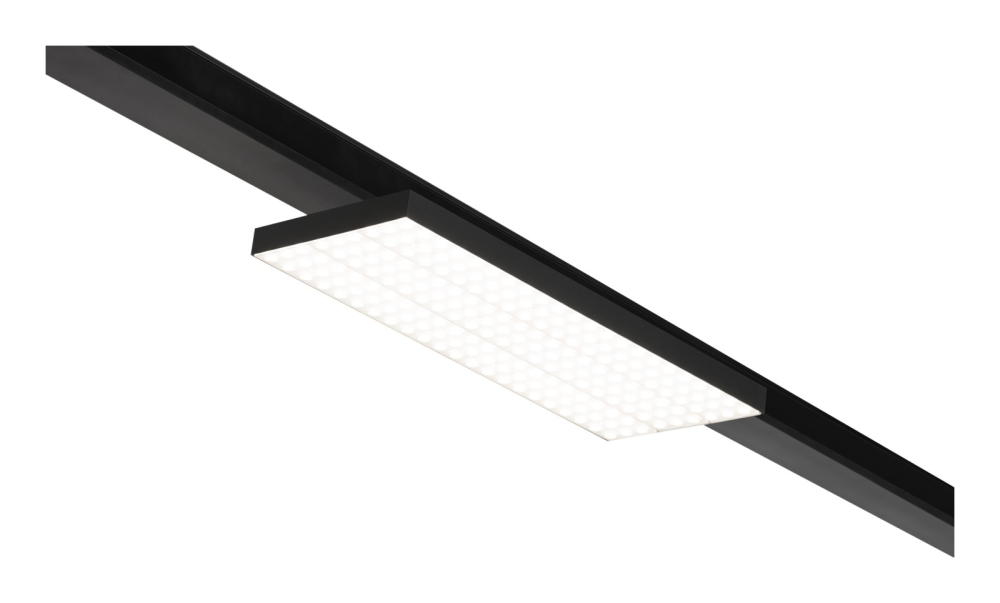

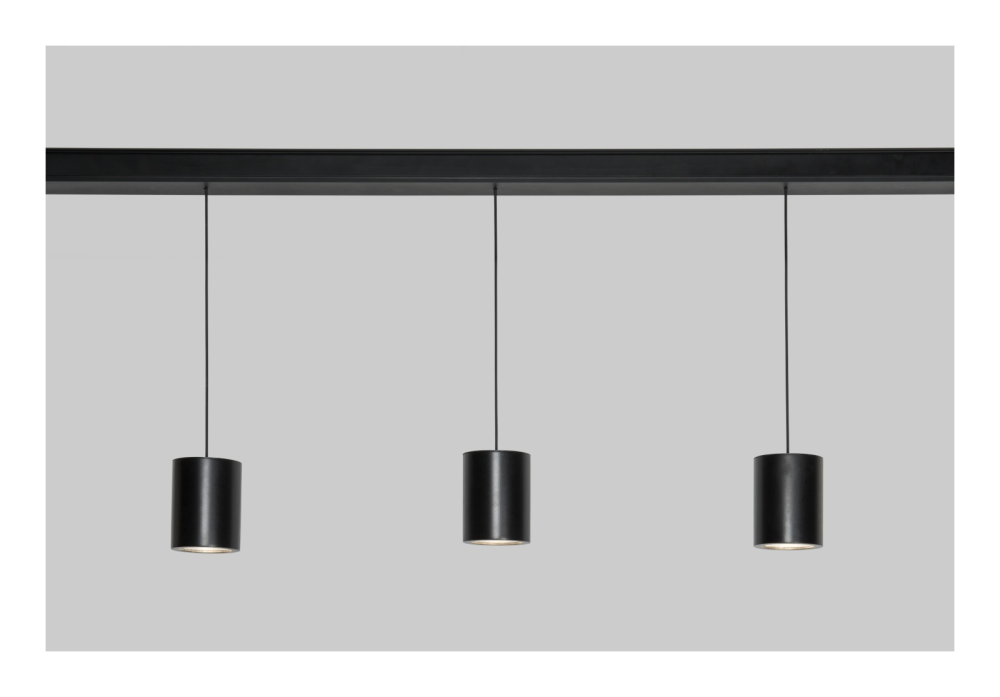

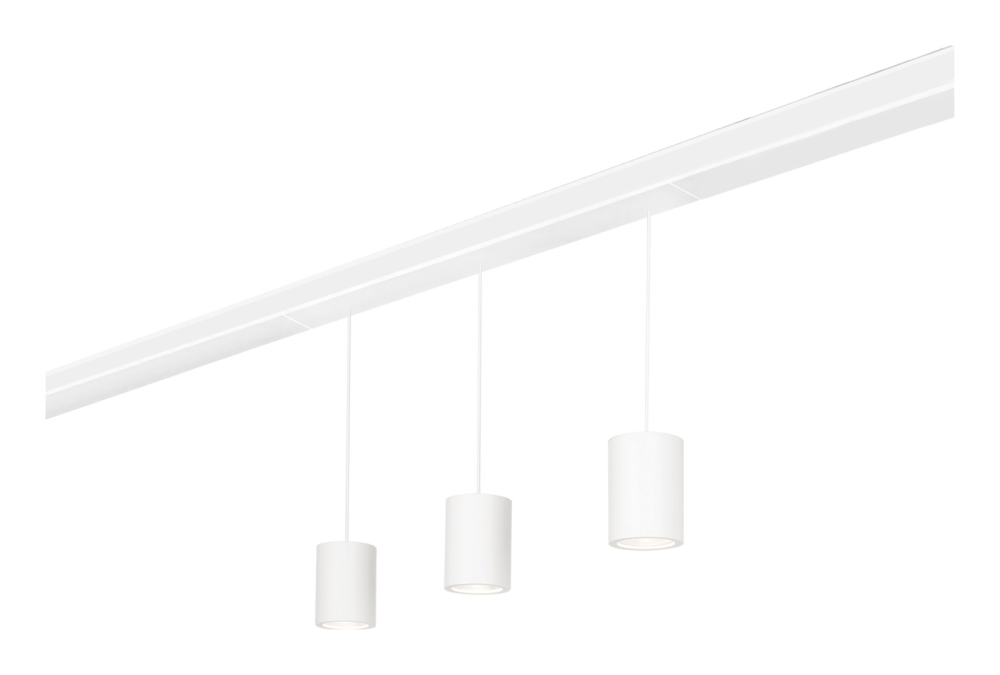

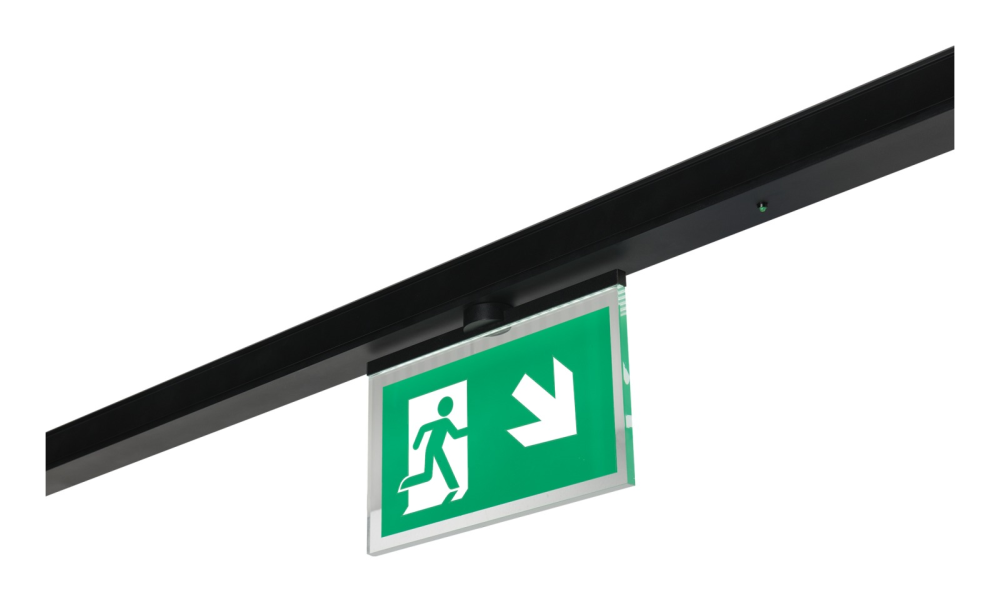

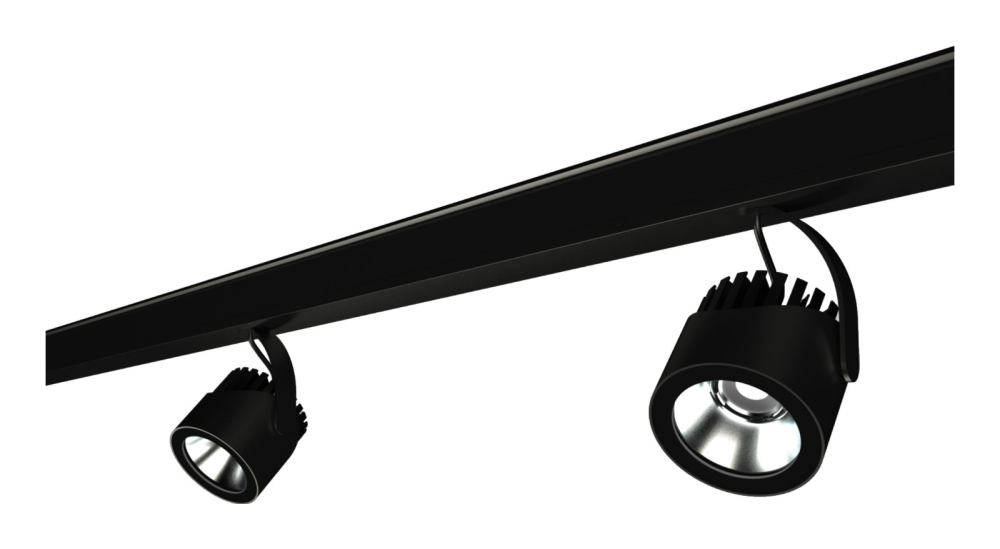

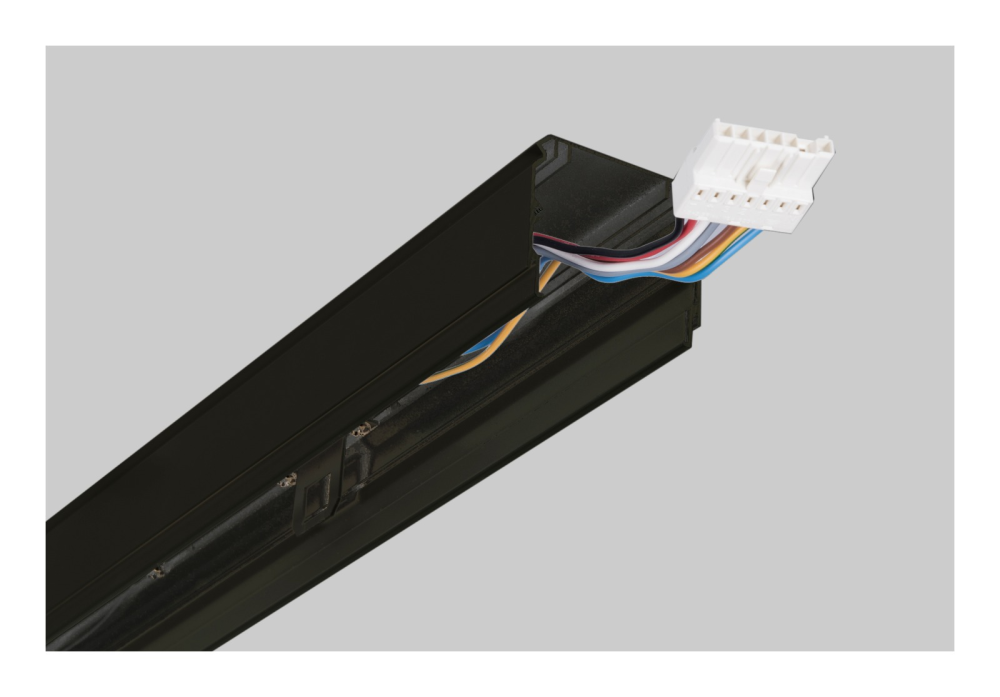

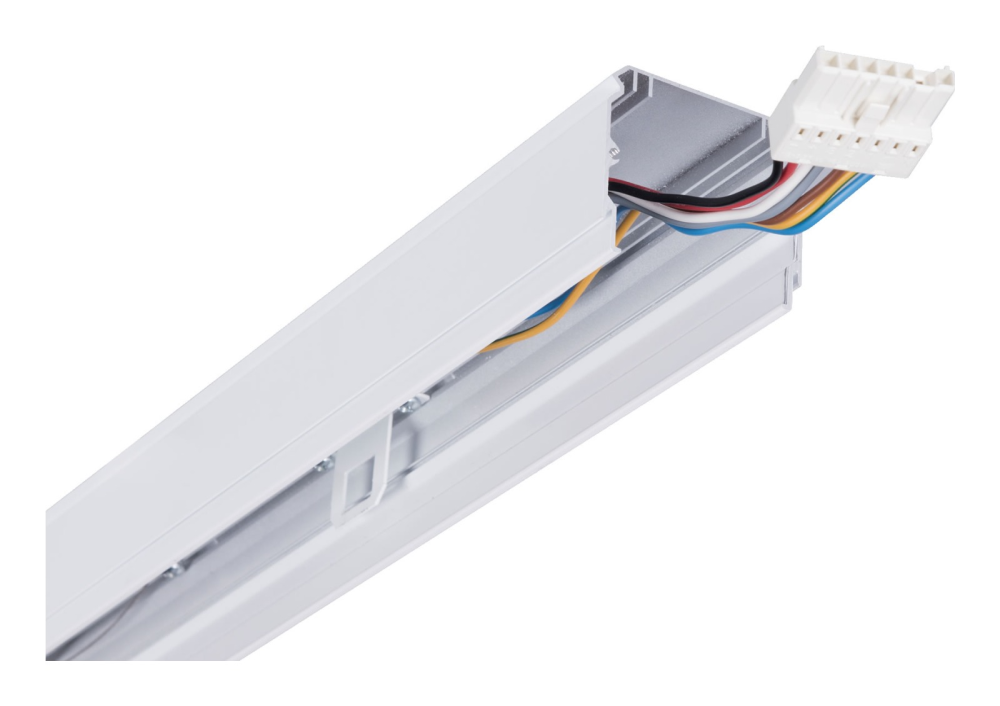

HYPERION TRUNKING TRUNKING SYSTEMS · TRUNKING RAIL HYPERION TRUNKING 64 mm 4017 mm 7G / 11G HYPERION OPTIC TRUNKING SYSTEMS · LED OPTIC MODULE HYPERION OPTIC Up to 24,724 lm 164 lm/W 5 HYPERION PANEL TRUNKING SYSTEMS · LENS PANEL MODULE HYPERION PANEL Up to 7,665 lm 153 lm/W 180 ° HYPERION SPOT TRUNKING SYSTEMS · TRACK SPOT MODULE HYPERION SPOT Up to 8,402 lm 2 / 3 27-60 ° HYPERION PENDANT TRUNKING SYSTEMS · PENDANT SPOT MODULE HYPERION PENDANT Up to 8,402 lm 2 / 3 27-60 ° HYPERION ESCAPE TRUNKING SYSTEMS · EXIT SIGN MODULE HYPERION ESCAPE 20 m 3 h 1.4 W
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with HYPERION BLIND, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

  1. 01Blind cover for the HYPERION TRUNKING rail
  2. 021435mm or 2007mm, 14 x 64mm aluminium
  3. 03Keeps runs continuous through unlit sections
  4. 04Clicks into the rail between modules
  5. 05Matt white RAL 9003 or matt black RAL 9005
  6. 06Covers match the module lengths

Specification

Mounting
Clicks into the HYPERION TRUNKING rail
Finish
WHITE Matt white (RAL 9003), BLACK Matt black (RAL 9005)
Supply
230 V 50 Hz
Dimensions
14 x 64 x 1435 / 2007mm
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE

Unlit aluminium cover, polyester powder coated; no electrical parts. Not suitable for covering with thermal insulation.

diVa five year warranty

Downloads

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
