HYPERION HI LINE

Range code HYPERION HI
HYPERION HI LINE

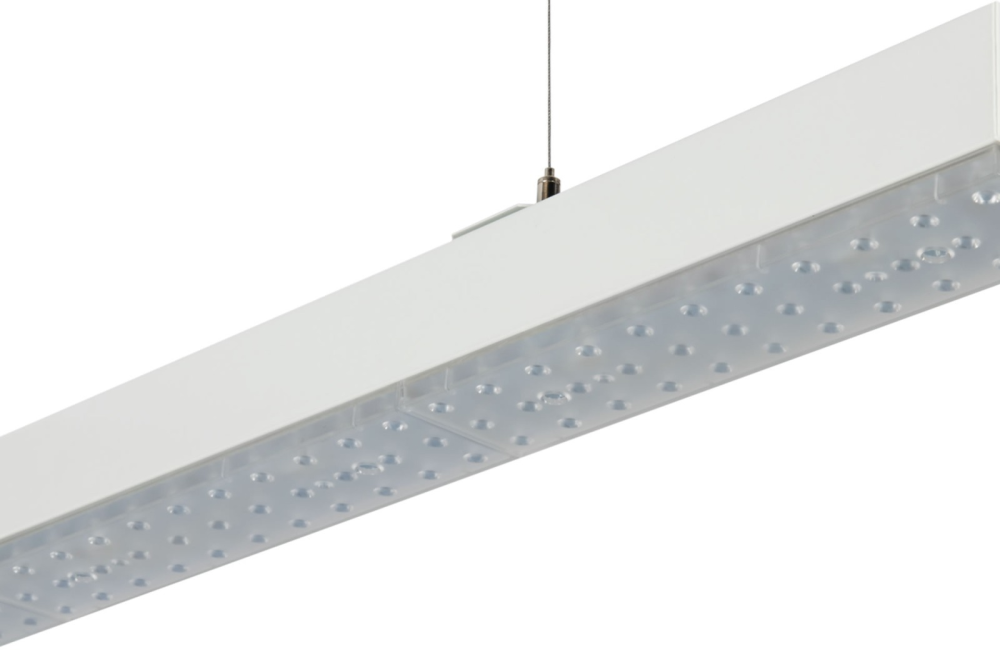

HYPERION HI LINE is the high-output continuous line: three rows of precision lens optics in a 64mm sheet steel body, up to 33,324 lm from a single 2293mm module. Runs join without light leaks over warehouses, sports halls and big open spaces, with 60°, 90° and asymmetric optics. Big rooms, one line.

Up to33,324lm Output (2293mm module, 4000 K)
174lm/W Efficacy
64 × 61mm Sheet steel body
72kh L80B10
Datasheet (PDF) Continuous line builder Technical data Downloads
Applications
Warehouses Logistics Sports halls Manufacturing Supermarkets Retail Exhibition halls Atriums

Technical information

Enter the bold lumen value in Relux.

Photometric file format:

1435mm Asymmetric
Output lmWlm/WPhotometric file
705542168.0 HYPERION-HI-42W-840-ASY-1435mm.LDT
971660161.9 HYPERION-HI-60W-840-ASY-1435mm.LDT
16042107149.9 HYPERION-HI-107W-840-ASY-1435mm.LDT
2293mm Asymmetric
Output lmWlm/WPhotometric file
1411184168.0 HYPERION-HI-84W-840-ASY-2293mm.LDT
19432121160.6 HYPERION-HI-121W-840-ASY-2293mm.LDT
32083213150.6 HYPERION-HI-213W-840-ASY-2293mm.LDT

Light distribution

cd/klm
200400600800
C0–C180 C90–C270

Intensities in cd/klm, so the shape applies to every output.

HYPERION continuous line builder

Start from the length of the run. The HYPERION HI LINE modules are fitted to it, you choose a lit or blind module for each position, and every coupler, end cap and through-wiring kit is counted for you.

Need a slimmer line? The one-row HYPERION LO LINE has its own builder.

1 Run

Runs are made of whole modules (1435 and 2293mm), so the run is the longest that fits within your length. Every module follows the finish.

2 Module types

Set up each kind of module you need (A, B, C ...), for example the standard module, the same module with emergency, and a blind (unlit) module. The output follows the module length: the first figure is the 1435mm module, the second the 2293mm module.

3 Module positions

Choose the module type for each position along the run. Thick lines mark the couplers between modules.

4 Suspension & through-wiring

5 Summary of component selection

CodeItemQty
Quantities are for all 1 run(s). Other lighting controls, such as PIR presence and daylight sensors, can be incorporated upon request: discuss with the diVa sales office.
Add to schedule

Also in the range

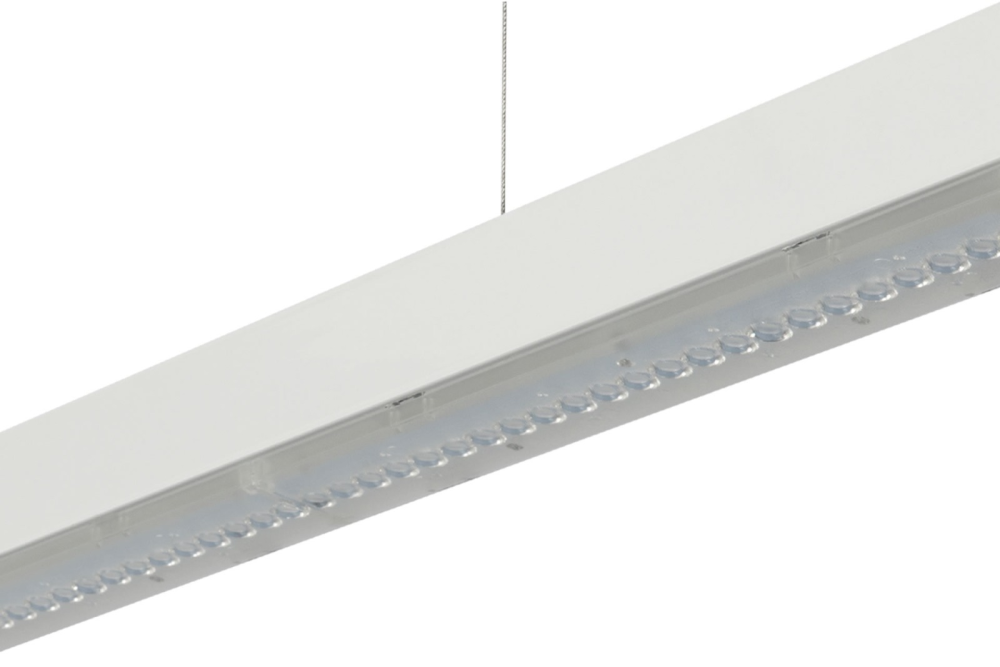

HYPERION LO LINE LINEAR · CONTINUOUS LINE, SLIM HYPERION LO LINE Up to 13,670 lm 162 lm/W 45 × 56 mm 72k h
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with HYPERION HI LINE, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

  1. 01High-output continuous line: three rows of PMMA lens optics
  2. 0264 × 61mm sheet steel body, matt white or black; screwless end caps
  3. 03Modules 1435mm or 2293mm; up to 33,324 lm per module
  4. 04Optics 60°, 90°, asymmetric or double asymmetric
  5. 05Linear couplers: no light leaks at the joints; blind modules
  6. 06Fixed output or DALI; integral emergency
  7. 07Two cables: tool-less height and position adjustment
  8. 08IP40, IK08, Class I; L80B10 72,000 h; Ta −20 to +35 °C

Specification

IP
IP40
IK
IK08
Lifetime
72,000 h
Colour options
840, 830
Controls
FI, DALI
Emergency
EM, EMST, EMD2 (integral, 3 W)
Mounting
Suspended on two stainless steel cables per module (1, 3 or 5 m); continuous runs with linear couplers, end caps, blind modules and through-wiring
Finish
WHITE Matt white (RAL 9003), BLACK Matt black (RAL 9005)
Supply
230 V 50 Hz
Electrical class
Class I
Dimensions
64 x 61mm sheet steel profile; modules 1435 / 2293mm; continuous runs with linear couplers
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE
  • RoHS
  • WEEE
  • 230 V 50 Hz
  • Class I
  • IP40
  • Emergency BS 5266-1

Tridonic control gear as standard, integral to the luminaire: fixed output or DALI. Integral emergency: 3hr manual test, self-test or DALI-2 (3 W). IP40, IK08, ambient −20 to +35 °C.

diVa five year warranty

Downloads

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
