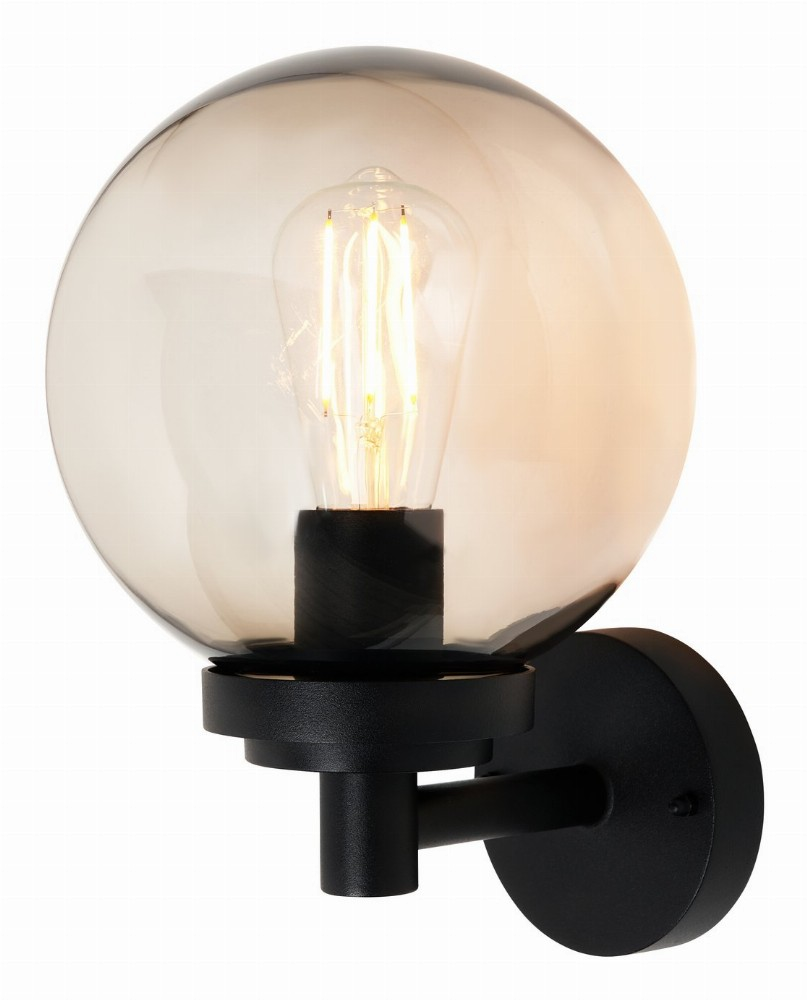

IREMOS LANTERN sets a smoked globe on a slim black arm: a modern lantern for porches, patios and entrances, where a visible filament glows softly through the tinted shade. Black aluminium, Ø200mm smoke PMMA globe, IP44. One E27 LED lamp, 806 lm in 2700 K, 3000 K or 4000 K, fixed or mains dimmable. A little atmosphere at the door.
E27 Single lamp, replaceable
IP44 Class I
Ø200mm Smoke globe
Applications
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Your part code Supplied with an E27 LED lamp in the chosen colour temperature; other lamps on request. Lamped fitting: no photometric files.

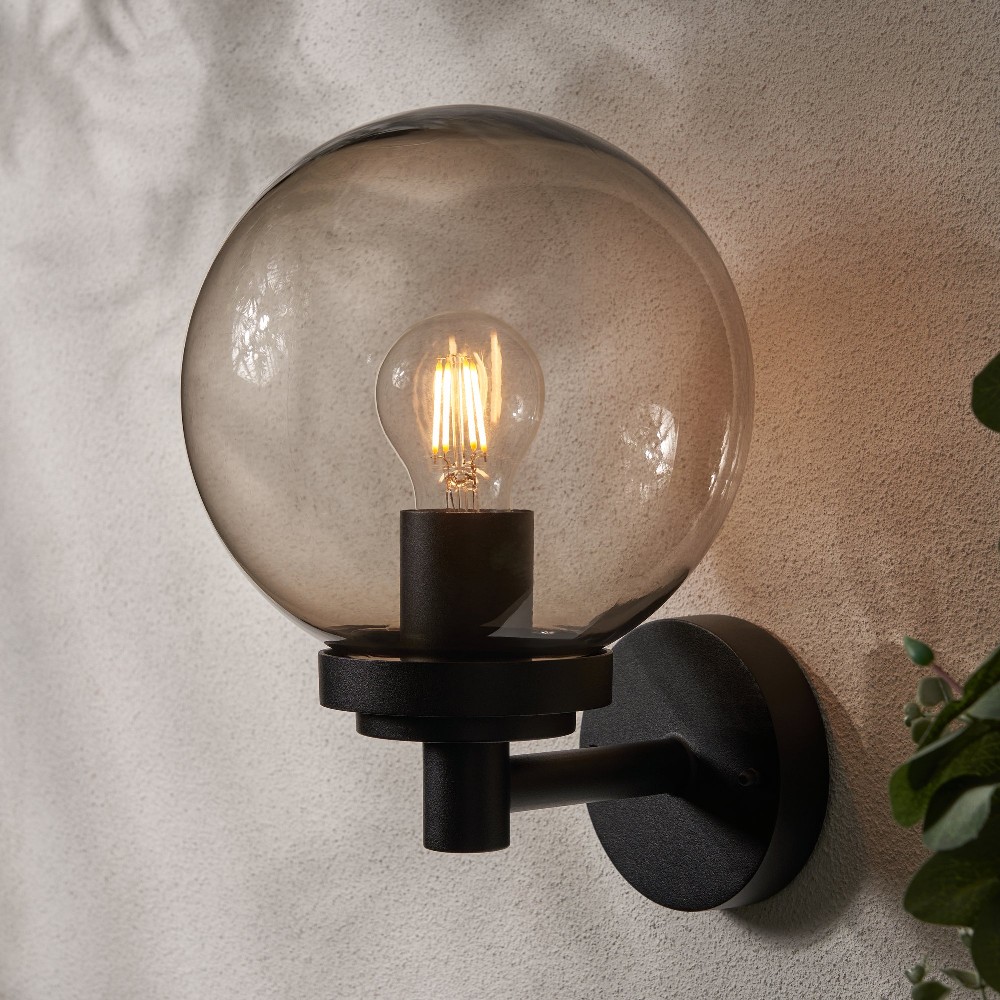

Installation images
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with IREMOS LANTERN, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting designFeatures
- 01Globe wall lantern, smoke tinted shade
- 02Black aluminium arm and back plate
- 03Ø200mm smoke PMMA globe
- 04Single E27 lamp, replaceable; 10 W max
- 05E27 LED lamp 806 lm, 2700 / 3000 / 4000 K
- 06Fixed output or mains dimming (dimmable lamp)
- 07290mm high, 227mm projection; IP44
- 08Class I; screw terminal connection
Specification
- IP
- IP44
- Colour options
- 827, 830, 840 (lamp)
- Lamp
- E27, 10 W max (replaceable lamp)
- Controls
- FI, MDIM (dimmable lamp)
- Mounting
- Wall mounted
- Finish
- BL Black, smoke globe
- Supply
- 230 V 50 Hz
- Electrical class
- Class I
- Dimensions
- Height 290mm; globe Ø200mm; projection 227mm
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class I
- IP44
Single E27 lamp holder, 10 W max; supplied with an E27 LED lamp.
Downloads
- Datasheet IREMOS-LANTERN.pdf Open Download
- UKCA / CE Declaration IREMOS-LANTERN-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
