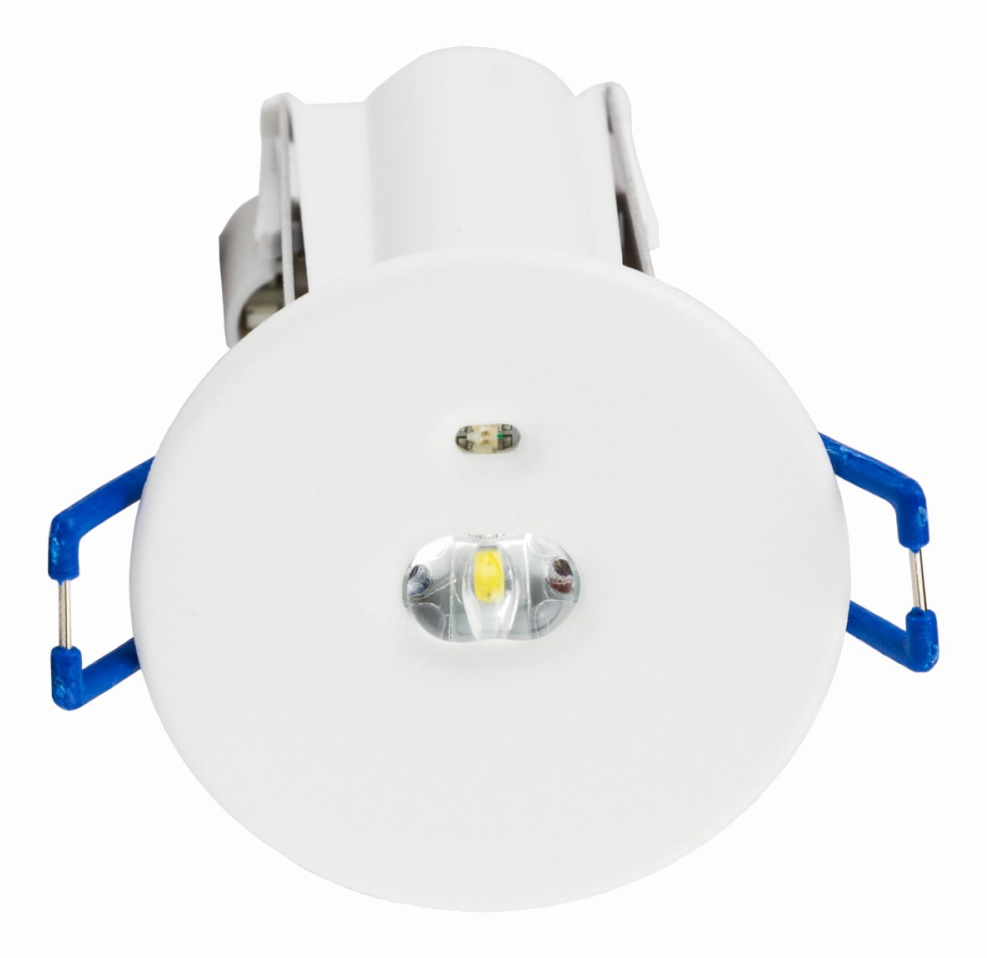

LED3EM is the emergency light you barely notice: a Ø60mm LED head in a 50mm hole, with its LiFePO4 battery built into the head and the gear in a slim remote box. A corridor or open area lens gives up to 185 lm for 3 hours, non-maintained with manual test or self-test, or maintained with DALI-2, in white or black.
Up to185lm 3 hours
3h Emergency, LiFePO4
IP20 Class II
Head diameter 60mm, 80mm deep, 50mm cut-out; gear box 245 x 37 x 26mm, 220mm lead IP20 White
Technical information
Enter the bold lumen value in Relux.
Higher emergency outputs (3 W and 6 W) on request.
Corridor lens
| Output lm | W | lm/W | Photometric file |
|---|---|---|---|
| 185 | 3.00 | 61.7 | LED3EM-CORR.LDT |
Open area lens
| Output lm | W | lm/W | Photometric file |
|---|---|---|---|
| 181 | 3.00 | 60.3 | LED3EM-OA.LDT |
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Your part code Non-maintained with manual test or self-test; maintained with DALI-2. Wireless version on request. Photometric files by lens.
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with LED3EM, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting designFeatures
- 01Discreet recessed head, Ø60mm, 50mm cut-out
- 02LiFePO4 battery in the head; slim remote gear box
- 03Corridor (185 lm) or open area (181 lm) lens
- 043 hours, constant power output, deep discharge protection
- 05Non-maintained: manual test or self-test (BS EN 62034)
- 06Maintained: DALI-2 addressable
- 07Bi-colour status LED in the bezel
- 08White or black; IP20, Class II
Specification
- IP
- IP20
- Controls
- MT, ST (NM); DALI-2 (M)
- Emergency
- NM or M, 3 hours
- Mounting
- Recessed, 50mm cut-out
- Finish
- WH White, BL Black
- Supply
- 230 V 50 Hz
- Electrical class
- Class II
- Dimensions
- Head diameter 60mm, 80mm deep, 50mm cut-out; gear box 245 x 37 x 26mm, 220mm lead
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class II
- IP20
- Emergency BS 5266-1
Self-contained emergency gear, 3 W, 3 hours, LiFePO4 battery; manual test, self-test or DALI-2.
Downloads
- Datasheet LED3EM.pdf Open Download
- Photometric files (LDT) 2 files Registered Sign in to download
Show all 2 files
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
