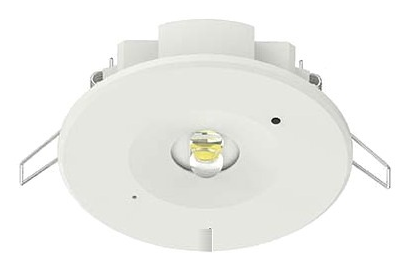

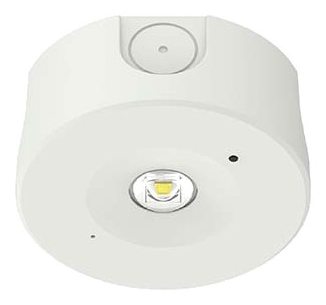

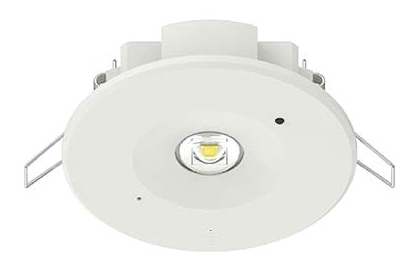

LEDEM-ECO is the all-in-one emergency downlight: one compact Ø98mm unit that recesses into a 75mm cut-out in a 100mm ceiling void or surface mounts on solid ceilings, with both kits and both lenses in the box. Up to 150 lm for 3 hours from a LiFePO4 battery, non-maintained, with manual test or self-test set by a switch on the head. Simple to specify, simple to fit.
Technical information
Enter the bold lumen value in Relux.
Photometric file format:
Higher emergency outputs (3 W and 6 W) on request.
| Output lm | W | lm/W | Photometric file |
|---|---|---|---|
| 110 | 1.00 | 110.0 | LEDEM-ECO-CORR.LDT |
| Output lm | W | lm/W | Photometric file |
|---|---|---|---|
| 150 | 1.00 | 150.0 | LEDEM-ECO-OA.LDT |
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Features
- 01Recessed or surface mounted: both kits supplied
- 02Open area and corridor lenses supplied, interchangeable
- 03Up to 150 lm (open area), 110 lm (corridor)
- 04Non-maintained, 3 hours, LiFePO4 battery
- 05Manual test or self-test, set by a switch on the head
- 0675mm cut-out, fits 100mm ceiling voids; Ø97.8mm
- 07White polycarbonate RAL 9016; 137 g
- 08IP20, Class II
Specification
- IP
- IP20
- Controls
- Manual test or self-test (switch on the head)
- Emergency
- NM, 3 hours
- Mounting
- Recessed or surface (both kits supplied)
- Finish
- WH White (9016)
- Supply
- 230 V 50 Hz
- Electrical class
- Class II
- Dimensions
- Diameter 97.8mm; surface 50.5mm deep; recessed 33.5mm above the ceiling in a 75mm cut-out (100mm voids)
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class II
- IP20
- Emergency BS 5266-1
Self-contained emergency gear, non-maintained, 3 hours, LiFePO4 battery; manual test or self-test.
Downloads
- Datasheet LEDEM-ECO.pdf Open Download
- UKCA / CE Declaration LEDEM-ECO-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download
- Photometric files (LDT) 2 files Registered Sign in to download
Show all 2 files
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
