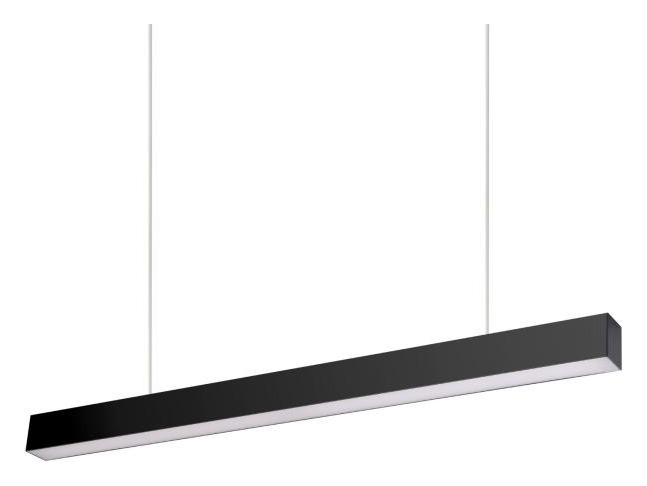

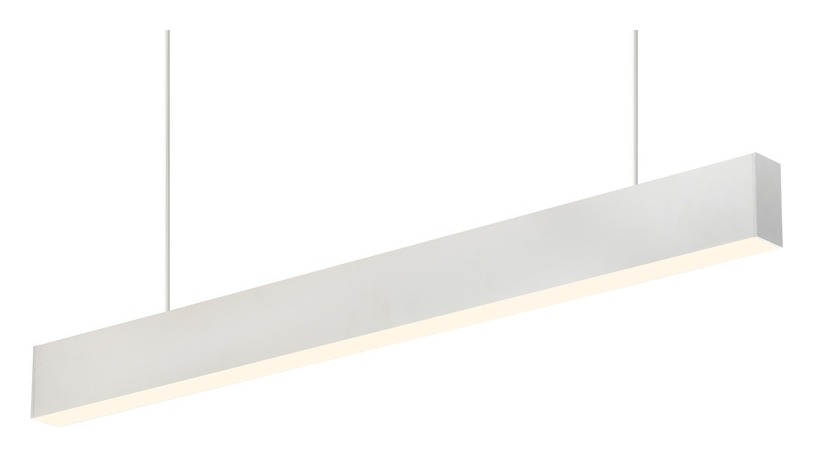

LIGHT LINE ECO is a clean-lined suspended linear with direct and indirect light in one 61 × 77mm aluminium profile. The up / down split, the wattage and the colour temperature are all set on the fitting, so one stock item covers the office, the meeting room and the breakout space. 1200 or 1500mm, black or white, 115 lm/W. Simple to stock, easy to set.
Up to6,900lm 1500mm
115lm/W Every output
0-100% Uplight, set on the fitting
IP44 IK08, Class I
Applications
Technical information
Enter the bold lumen value in Relux.
1200mm
| Output lm | W | lm/W |
|---|---|---|
| 3450 | 30.00 | 115.0 |
| 4600 | 40.00 | 115.0 |
| 5750 | 50.00 | 115.0 |
1500mm
| Output lm | W | lm/W |
|---|---|---|
| 4600 | 40.00 | 115.0 |
| 5750 | 50.00 | 115.0 |
| 6900 | 60.00 | 115.0 |
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Your part code The wattage, colour temperature and up / down split are set on the fitting; the output code is the top step for each length. Standalone fitting. Photometric files on request.
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with LIGHT LINE ECO, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting designFeatures
- 01Suspended linear, direct and indirect light
- 02Up / down split set on the fitting: 0, 30, 50, 70 or 100% up
- 03Wattage set on site: three outputs per length
- 04Colour temperature set on the fitting: 2700 to 5000 K
- 05115 lm/W, CRI >80, 120° beam
- 06Aluminium body, PC diffuser, TP(a) rated (850 °C)
- 071200 or 1500mm, black or white; standalone
- 08IP44, IK08, Class I; L70 100,000 h
Specification
- IP
- IP44
- IK
- IK08
- Colour options
- 2700 / 3000 / 3500 / 4000 / 5000 K set on the fitting (CCT), CRI >80
- Controls
- FI
- Mounting
- Suspended (cable kit, 1.5 m as standard) or wall bracket
- Finish
- WH White, BL Black
- Supply
- 220-240 V 50 Hz
- Electrical class
- Class I
- Dimensions
- 61 x 77mm (W x H); 1200 or 1500mm long; suspension cables 1.5 m as standard
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class I
- IP44
Integral driver, fixed output; wattage, colour temperature and up / down split set on the fitting.
Downloads
- Datasheet LIGHT-LINE-ECO.pdf Open Download
- UKCA / CE Declaration LIGHT-LINE-ECO-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
