MINOS GU10 SURFACE - diVa lighting ltd

MINOS GU10 SURFACE is the compact adjustable spot that goes where track cannot: a Ø60mm cylinder on a slim ceiling or wall plate, single or twin, that tilts and turns to put a GU10 LED lamp exactly on target. 400 or 650 lm in 2700 K, 3000 K or 4000 K, fixed or mains dimmable, with a white or black body and a black, white or gold baffle.

Single / Twin Ceiling or wall

Ø60mm 117mm projection

GU10 Replaceable lamp

Datasheet (PDF) Part-code builder Downloads

Applications

Retail Galleries & museums Hotels & hospitality Restaurants Residential Showrooms

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range

MINOS GU10 SURFACE

2 Version

Single, 1 x GU10

3 Lamp output

GU10 LED lamp, 650 lm (other lamps on request)

4 Colour temperature

80 CRI, 2700 K

5 Control

Fixed output

6 Body

White

7 Baffle

Black

Your part code Supplied with a GU10 LED lamp in the chosen colour temperature; other lamps on request. Lamped fitting: no photometric files.

Add to schedule

Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with MINOS GU10 SURFACE, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.

Request a lighting design

Features

01Fully adjustable surface spot, ceiling or wall

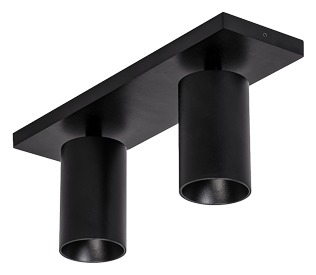

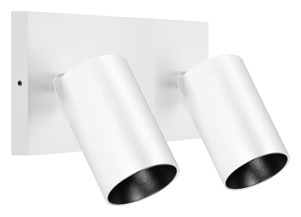

02Single (110 x 90mm plate) or twin (305 x 90mm plate)
03Ø60mm head, 117mm from the mounting surface
04GU10 LED lamp 400 or 650 lm, 2700 / 3000 / 4000 K
05Fixed output or mains dimming (dimmable lamp)
06White or black body; black, white or gold baffle
07Replaceable GU10 lamp
08Class I, IP20; matching MINOS GU10 track spot

Specification

IP: IP20
Colour options: 827, 830, 840 (lamp)
Lamp: GU10 (replaceable lamp)
Controls: FI, MDIM (dimmable lamp)
Mounting: Surface, ceiling or wall
Finish: WH White body, BL Black body
Supply: 230 V 50 Hz
Electrical class: Class I
Dimensions: Head Ø60mm, 117mm from the mounting surface; plate 110 x 90mm (single), 305 x 90mm (twin)
Warranty: 5 years

Control gear, standards & warranty

UKCA
CE
RoHS
WEEE
230 V 50 Hz
Class I
IP20

GU10 lamp holder; supplied with a GU10 LED lamp.

Downloads

Datasheet MINOS-GU10-SURFACE.pdf Open Download
UKCA / CE Declaration MINOS-GU10-SURFACE-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
