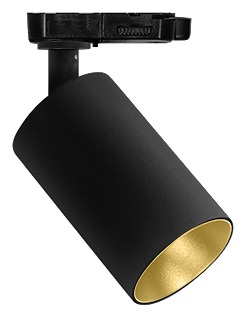

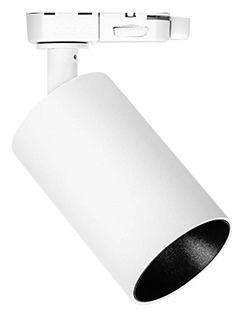

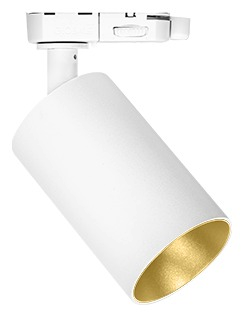

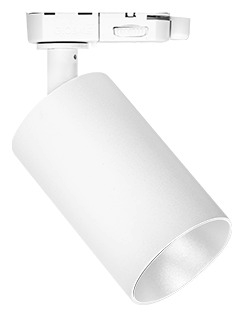

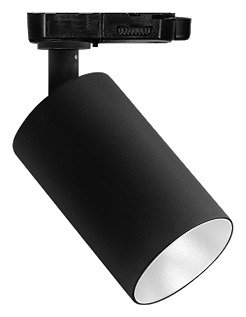

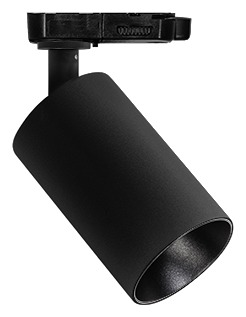

MINOS GU10 brings the GU10 to track in style: a Ø60mm adjustable cylinder on a three-circuit track adaptor, fitting our ONETRACK system, with a GU10 LED lamp you can change in seconds. 400 or 650 lm in 2700 K, 3000 K or 4000 K, fixed or mains dimmable, with a white or black body and a black, white or gold baffle. Small spot, big flexibility.
Ø60mm 135mm overall
3-circuit Track adaptor
GU10 Replaceable lamp
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Your part code Supplied with a suitable adaptor for the specified track system. Supplied with a GU10 LED lamp in the chosen colour temperature; other lamps on request. Lamped fitting: no photometric files.

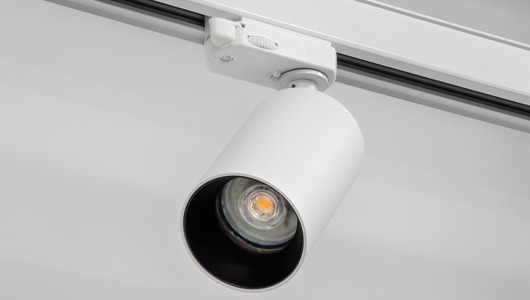

Installation images
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with MINOS GU10, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting designFeatures
- 01Fully adjustable GU10 track spot
- 02Three-circuit track adaptor; fits ONETRACK
- 03Ø60mm head, 135mm overall from the track
- 04GU10 LED lamp 400 or 650 lm, 2700 / 3000 / 4000 K
- 05Fixed output or mains dimming (dimmable lamp)
- 06White or black body; black, white or gold baffle
- 07Replaceable GU10 lamp; 0.3 kg
- 08Class II, IP20; matching MINOS GU10 SURFACE
Specification
- IP
- IP20
- Colour options
- 827, 830, 840 (lamp)
- Lamp
- GU10 (replaceable lamp)
- Controls
- FI, MDIM (dimmable lamp)
- Mounting
- Three-circuit track
- Finish
- WH White body, BL Black body
- Supply
- 230 V 50 Hz
- Electrical class
- Class II
- Dimensions
- Head Ø60mm, 135mm overall from the track
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class II
- IP20
GU10 lamp holder; supplied with a GU10 LED lamp.
Downloads
- Datasheet MINOS-GU10.pdf Open Download
- UKCA / CE Declaration MINOS-GU10-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
