MINOS MAXI is the big brother of MINOS ELITE: a Ø90mm minimalist track spot with a COB LED module and in-track driver, giving up to 5,225 lm for high ceilings and big displays. Four beams from 18° to 60°, CRI >90 options, 3 SDCM and snoots and a honeycomb louvre to put the light exactly where it sells.
Up to5,225lm Four outputs, 840
167lm/W At 1,925 lm, 840
Ø90mm Head 158mm long
18–60° Four beam angles
Head Ø90 x 158mm; 185mm overall height; track adaptor 158 to 250mm; 0.7 kg IP20 840 · 830 · 940 · 930 White
Applications
Technical information
Enter the bold lumen value in Relux.
Luminaire lumens · 840, 830, 940 and 930
Light distribution
cd/klm C0–C180 C90–C270
Intensities in cd/klm, so the shape applies to every output.
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Your part code One output code covers all colour temperatures and beams; see the technical table for each lumen value. No emergency version.
Also in the range
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with MINOS MAXI, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting designFeatures
- 01Minimalist track spotlight, Ø90 × 158mm head, 90° tilt
- 02COB LED module with in-track driver; four outputs to 5,225 lm
- 0340° medium beam as standard; 18°, 24° and 60° options
- 044000 K or 3000 K at CRI >80, or CRI >90; 3 SDCM
- 05Fixed output, DALI, mains dimming or Casambi wireless

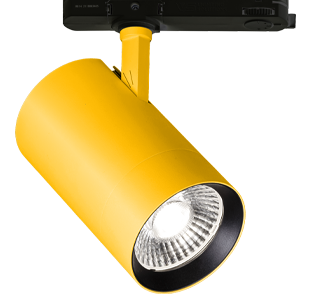

- 06White as standard; black or any RAL to order

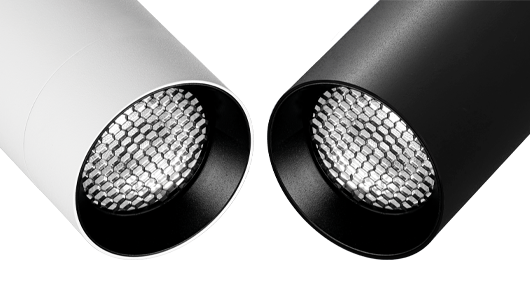

- 07Long and asymmetric snoots, honeycomb louvre
- 08L90/F50 55,000 h; 0.7 kg; IP20
Specification
- IP
- IP20
- Lifetime
- 55,000 h
- Colour options
- 840, 830, 940, 930
- Controls
- FI, DALI, MDIM, bDW
- Emergency
- Not available
- Mounting
- Track mounted
- Finish

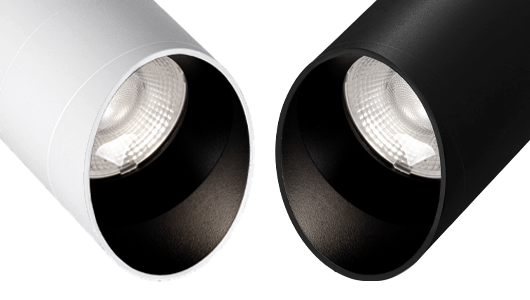

- WH White, BL Black
- Supply
- 230 V 50 Hz
- Electrical class
- Class II
- Dimensions
- Head Ø90 x 158mm; 185mm overall height; track adaptor 158 to 250mm; 0.7 kg
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class II
- IP20
In-track driver. Fixed output, DALI, mains dimming or Casambi wireless (bDW). No emergency version.
Downloads
- Datasheet MINOS-MAXI.pdf Open Download
- Photometric files (LDT) 64 files Registered Sign in to download
Show all 64 files
- MIMX-1925-830-18.LDT
- MIMX-1925-830-24.LDT
- MIMX-1925-830-40.LDT
- MIMX-1925-830-60.LDT
- MIMX-1925-840-18.LDT
- MIMX-1925-840-24.LDT
- MIMX-1925-840-40.LDT
- MIMX-1925-840-60.LDT
- MIMX-1925-930-18.LDT
- MIMX-1925-930-24.LDT
- MIMX-1925-930-40.LDT
- MIMX-1925-930-60.LDT
- MIMX-1925-940-18.LDT
- MIMX-1925-940-24.LDT
- MIMX-1925-940-40.LDT
- MIMX-1925-940-60.LDT
- MIMX-3025-830-18.LDT
- MIMX-3025-830-24.LDT
- MIMX-3025-830-40.LDT
- MIMX-3025-830-60.LDT
- MIMX-3025-840-18.LDT
- MIMX-3025-840-24.LDT
- MIMX-3025-840-40.LDT
- MIMX-3025-840-60.LDT
- MIMX-3025-930-18.LDT
- MIMX-3025-930-24.LDT
- MIMX-3025-930-40.LDT
- MIMX-3025-930-60.LDT
- MIMX-3025-940-18.LDT
- MIMX-3025-940-24.LDT
- MIMX-3025-940-40.LDT
- MIMX-3025-940-60.LDT
- MIMX-4350-830-18.LDT
- MIMX-4350-830-24.LDT
- MIMX-4350-830-40.LDT
- MIMX-4350-830-60.LDT
- MIMX-4350-840-18.LDT
- MIMX-4350-840-24.LDT
- MIMX-4350-840-40.LDT
- MIMX-4350-840-60.LDT
- MIMX-4350-930-18.LDT
- MIMX-4350-930-24.LDT
- MIMX-4350-930-40.LDT
- MIMX-4350-930-60.LDT
- MIMX-4350-940-18.LDT
- MIMX-4350-940-24.LDT
- MIMX-4350-940-40.LDT
- MIMX-4350-940-60.LDT
- MIMX-5225-830-18.LDT
- MIMX-5225-830-24.LDT
- MIMX-5225-830-40.LDT
- MIMX-5225-830-60.LDT
- MIMX-5225-840-18.LDT
- MIMX-5225-840-24.LDT
- MIMX-5225-840-40.LDT
- MIMX-5225-840-60.LDT
- MIMX-5225-930-18.LDT
- MIMX-5225-930-24.LDT
- MIMX-5225-930-40.LDT
- MIMX-5225-930-60.LDT
- MIMX-5225-940-18.LDT
- MIMX-5225-940-24.LDT
- MIMX-5225-940-40.LDT
- MIMX-5225-940-60.LDT
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
