MS/SFI40/bDW is Tridonic's Casambi Ready HF motion sensor for building into the luminaire: it sees through glass and plastic, drives the luminaire's DALI gear from its own 20 mA supply and joins the Casambi network with no gateway. Bright-out keeps the light off when the daylight is enough. Hidden inside, working all day.
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Features
- 01Tridonic HF motion sensor for Casambi (Casambi Ready)
- 02Built into the luminaire; detects through glass and plastic
- 03Standalone DALI output with a switchable 20 mA DALI supply
- 04Bright-out: stays off when there is enough daylight
- 05Mounting heights to 5 m; detection area 10 to 100%
- 06Set up in the 4remote BT app; up to 250 nodes, no gateway

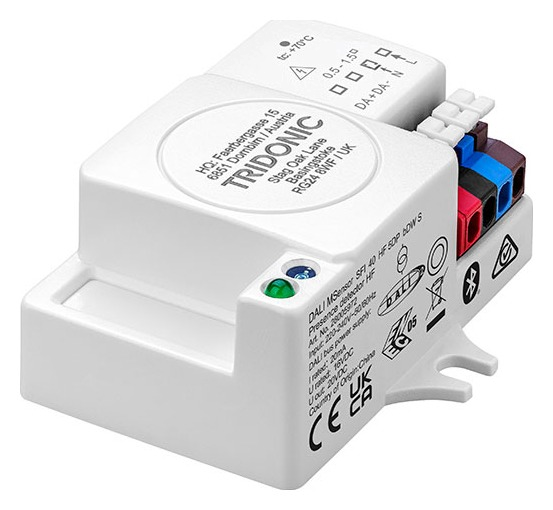

- 07Two housing formats: 70 x 36.5mm or 58 x 52mm
- 08Class II, IP20; 50,000 h; glow wire 850 °C
Specification
- IP
- IP20
- Controls
- Casambi (bDW); standalone DALI output with 20 mA supply
- Mounting
- Built into the luminaire
- Supply
- 220-240 V AC 50 / 60 Hz
- Electrical class
- Class II
- Dimensions
- 70 x 36.5 x 24.5mm or 58 x 52 x 24.5mm (S); 0.04 kg
- Warranty
- Tridonic 5-year guarantee (Tridonic guarantee conditions).
Control gear, standards & warranty
- UKCA
- CE
- Class II
- IP20
Tridonic DALI MSensor SFI 40 HF 5DP bDW, Casambi Ready HF motion sensor for luminaire installation with standalone DALI output and 20 mA DALI supply. EN 55015, EN 61547, EN 61347-2-11, EN 300 328, EN 300 440, EN 62386-101 / -103. Tridonic 5-year guarantee (Tridonic guarantee conditions).
Warranty: Tridonic 5-year guarantee (Tridonic guarantee conditions). Sensors, controls, switches, sockets and accessories carry their own warranty, product by product. See the warranty policy.
