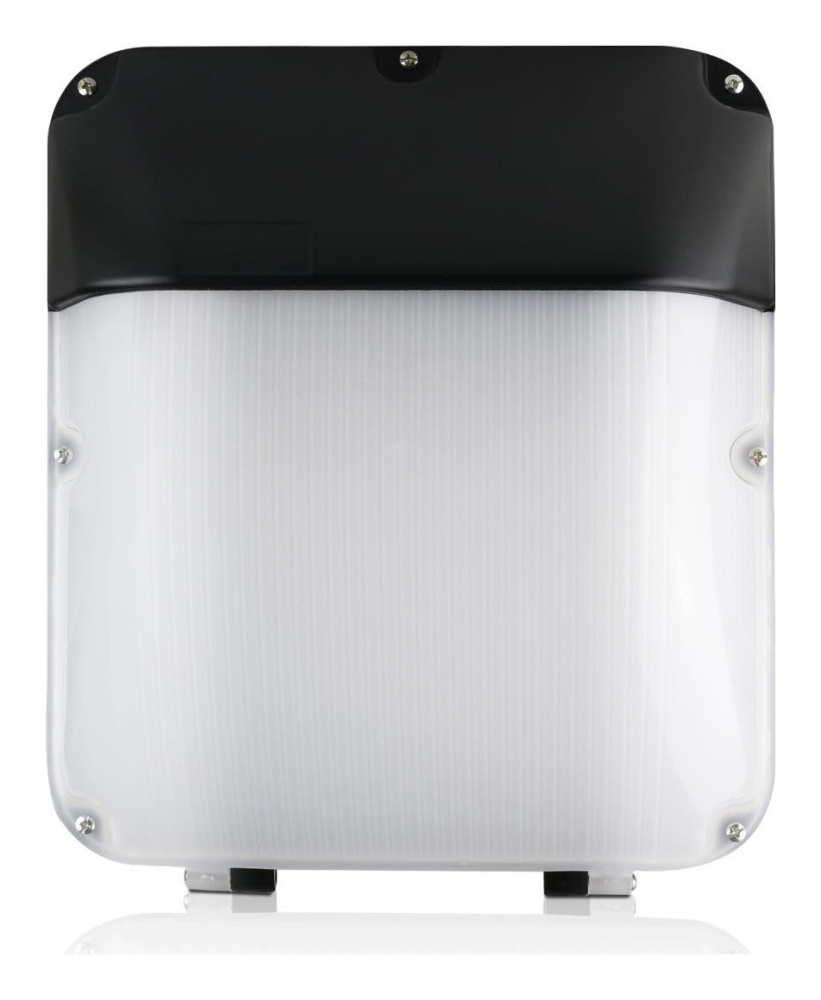

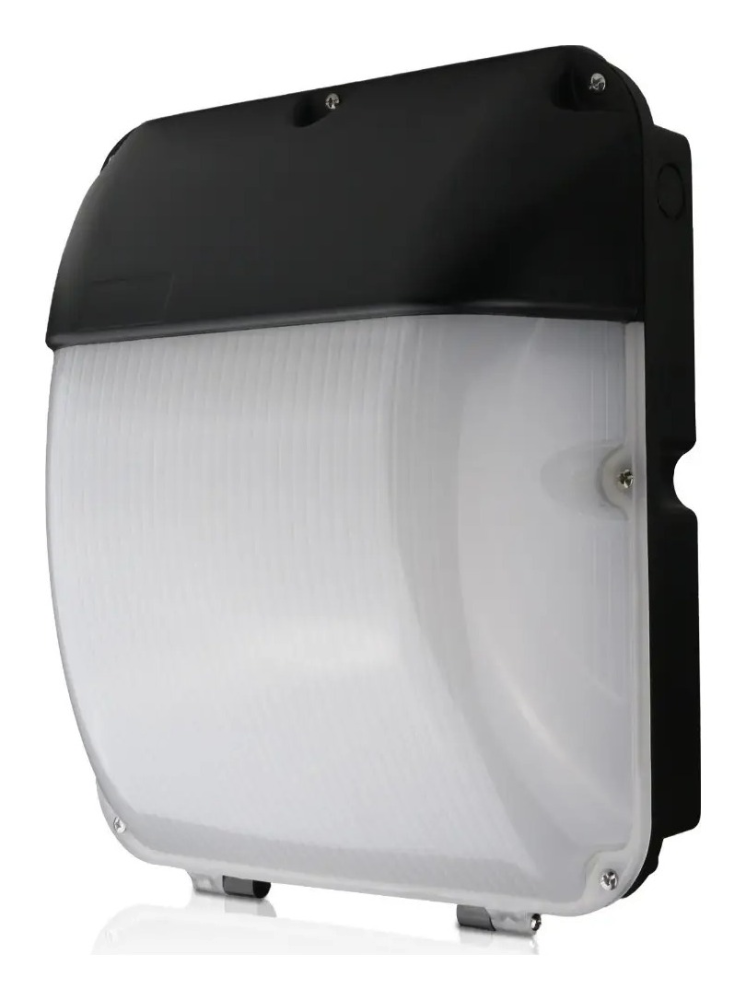

NELEUS is a slim 30 W wall pack for building perimeters, entrances, yards and service routes: 2,200 lm from a die-cast aluminium body with an opal polycarbonate lens, IP65 and IK10. Colour temperature switchable on the fitting, fixed output, DALI or Casambi, with microwave or photocell control and integral emergency. A straight swap for a 70 W SON wall pack.
Up to2,200lm 30 W
3000 / 4000 / 6000K Switchable
IP65 IK10
Applications
Technical information
Enter the bold lumen value in Relux.
Higher emergency outputs (3 W and 6 W) on request.
| Output lm | W | lm/W | Emergency lm (2 W) |
|---|---|---|---|
| 2200 | 30.00 | 73.3 | 145 |
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Your part code Colour temperature selected on the fitting. Photometric files on request.

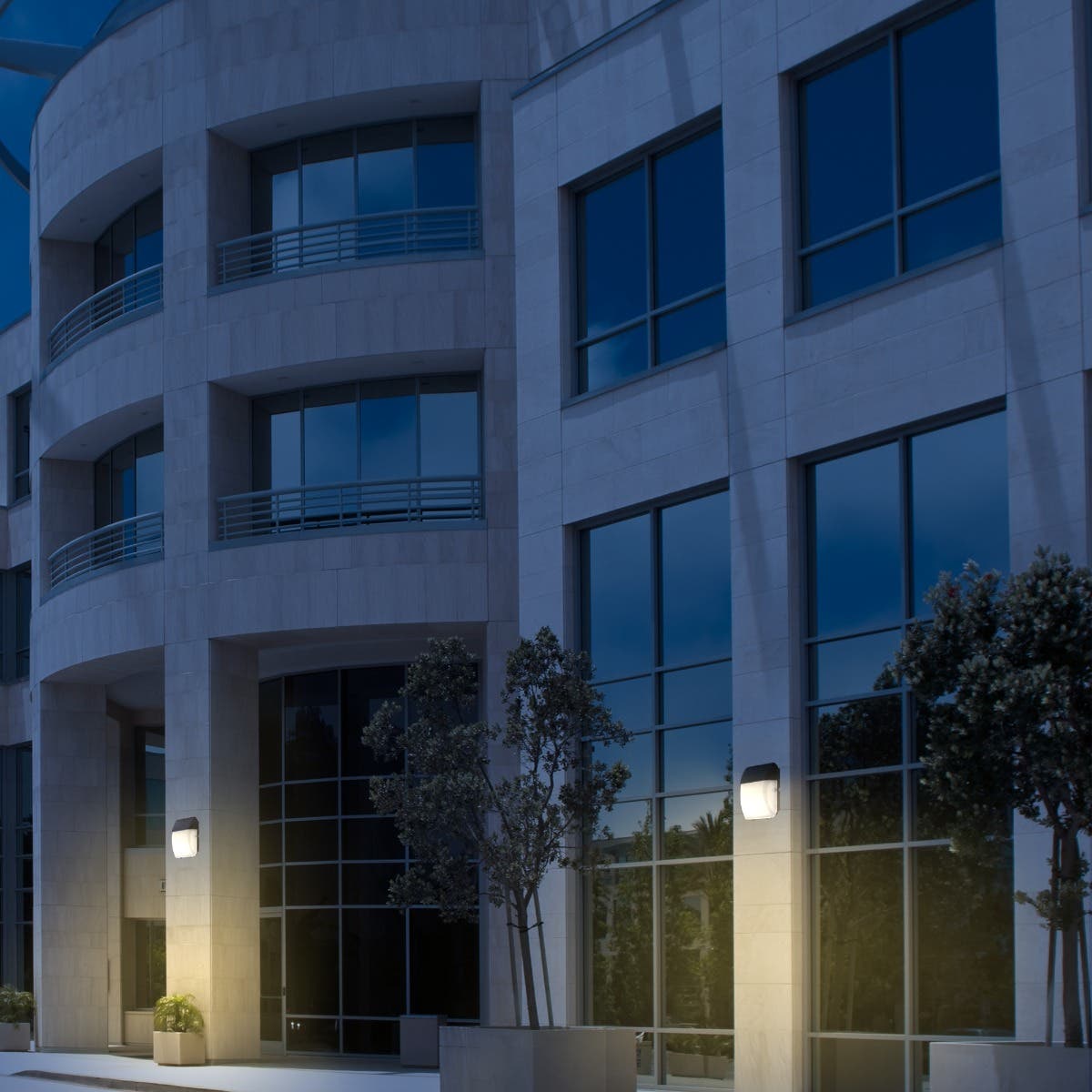

Installation images
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with NELEUS, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting designFeatures
- 01Slim wall pack, 310 x 265 x 122mm
- 022,200 lm from 30 W; replaces a 70 W SON wall pack
- 033000 / 4000 / 6000 K, switchable on the fitting; CRI >80
- 04Black die-cast aluminium body, opal polycarbonate lens
- 05Fixed output, DALI or Casambi (bDW)
- 06Microwave sensor or photocell (fixed output)
- 07IP65, IK10; -30 to +35 °C; 50,000 h
- 08Integral emergency EM, EMST or EMD2
Specification
- IP
- IP65
- IK
- IK10
- Colour options
- 3000 / 4000 / 6000 K switchable (CCT)
- Controls
- FI, DALI, bDW; MS, PC (FI)
- Emergency
- EM, EMST, EMD2
- Mounting
- Wall mounted
- Finish
- BL Black
- Supply
- 230 V 50 Hz
- Electrical class
- Class I
- Dimensions
- Height 310mm; width 265mm; depth 122mm
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class I
- IP65
- Emergency BS 5266-1
Integrated LED driver, fixed output, DALI or Casambi. Microwave and photocell sensors with fixed output only.
Downloads
- Datasheet NELEUS.pdf Open Download
- UKCA / CE Declaration NELEUS-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
