NYLO BREAK SURFACE

Range code NYLO BREAK SF
NYLO BREAK SURFACE

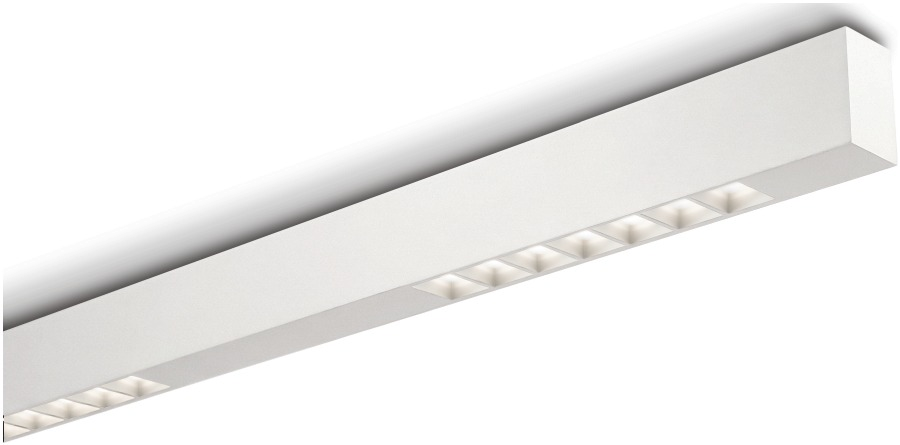

NYLO BREAK SURFACE puts the light where it is wanted and lets the line breathe: a slim 43mm surface profile carries groups of precision louvred lenses with plain sections between them, for crisp, symmetrical, UGR<19 light. 1120 to 2800mm, joinable into runs and shapes, at up to 7,282 lm.

Up to7,282lm Output (2800mm, 4000 K)
43mm Wide, 69mm deep
UGR<19 Louvred lens optic
75kh L80B10
Datasheet (PDF) Part-code builder Technical data Downloads
Applications
Offices Open plan areas Meeting rooms Corridors Reception areas Schools Retail Hospitality Low glare applications

Technical information

Enter the bold lumen value in Relux.

Photometric file format:

Higher emergency output (6 W) on request.

1120mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
11799131.0560 NYLO-BREAK-SF-9W-940-60-B-1120mm.LDT
13939154.8560 NYLO-BREAK-SF-9W-840-60-B-1120mm.LDT
233117137.1560 NYLO-BREAK-SF-17W-940-60-B-1120mm.LDT
271217159.5560 NYLO-BREAK-SF-17W-840-60-B-1120mm.LDT
1120mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
11579128.6560 NYLO-BREAK-SF-9W-940-76-B-1120mm.LDT
13669151.8560 NYLO-BREAK-SF-9W-840-76-B-1120mm.LDT
228617134.5560 NYLO-BREAK-SF-17W-940-76-B-1120mm.LDT
266017156.5560 NYLO-BREAK-SF-17W-840-76-B-1120mm.LDT
1680mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
176912147.4560 NYLO-BREAK-SF-12W-940-60-B-1680mm.LDT
208912174.1560 NYLO-BREAK-SF-12W-840-60-B-1680mm.LDT
349624145.7560 NYLO-BREAK-SF-24W-940-60-B-1680mm.LDT
406724169.5560 NYLO-BREAK-SF-24W-840-60-B-1680mm.LDT
1680mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
173512144.6560 NYLO-BREAK-SF-12W-940-76-B-1680mm.LDT
205012170.8560 NYLO-BREAK-SF-12W-840-76-B-1680mm.LDT
343024142.9560 NYLO-BREAK-SF-24W-940-76-B-1680mm.LDT
399024166.3560 NYLO-BREAK-SF-24W-840-76-B-1680mm.LDT
2240mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
235917138.8560 NYLO-BREAK-SF-17W-940-60-B-2240mm.LDT
278617163.9560 NYLO-BREAK-SF-17W-840-60-B-2240mm.LDT
466232145.7560 NYLO-BREAK-SF-32W-940-60-B-2240mm.LDT
542332169.5560 NYLO-BREAK-SF-32W-840-60-B-2240mm.LDT
2240mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
231417136.1560 NYLO-BREAK-SF-17W-940-76-B-2240mm.LDT
273317160.8560 NYLO-BREAK-SF-17W-840-76-B-2240mm.LDT
457332142.9560 NYLO-BREAK-SF-32W-940-76-B-2240mm.LDT
532032166.3560 NYLO-BREAK-SF-32W-840-76-B-2240mm.LDT
2800mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
294820147.4560 NYLO-BREAK-SF-20W-940-60-B-2800mm.LDT
348220174.1560 NYLO-BREAK-SF-20W-840-60-B-2800mm.LDT
582742138.7560 NYLO-BREAK-SF-42W-940-60-B-2800mm.LDT
677942161.4560 NYLO-BREAK-SF-42W-840-60-B-2800mm.LDT
2800mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
289220144.6560 NYLO-BREAK-SF-20W-940-76-B-2800mm.LDT
341620170.8560 NYLO-BREAK-SF-20W-840-76-B-2800mm.LDT
571642136.1560 NYLO-BREAK-SF-42W-940-76-B-2800mm.LDT
665042158.3560 NYLO-BREAK-SF-42W-840-76-B-2800mm.LDT

Light distribution

cd/klm
20040060080010001200
C0–C180 C90–C270

Intensities in cd/klm, so the shape applies to every output.

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range
NYLO
2 Version
Break: lens groups with blank sections
3 Mounting
Surface mounted
5 Colour temperature
4000 K, CRI >80
9 Length
1120mm, 2 lens groups
4 Output (W)
17 W Depends on: Colour temperature, Length
6 Body finish
White
7 Beam
60° beam
8 Baffle
Black baffle
10 Control gear
DALI dimming DT8: Only with tunable white 2700-6500 K, CRI >90
11 Emergency
No emergency
Your part code The wattage follows the length (tunable white 40 W at 2800mm high output, takes DT8 gear). The white baffle comes on the white body only. Continuous runs and L, T and X shapes: discuss with the diVa sales office.
Add to schedule

Also in the range

NYLO SUSPENDED Low glare LINEAR · SUSPENDED, LOUVRED OPTIC NYLO SUSPENDED Up to 7,282 lm 43 mm UGR<19 75k h NYLO SUSPENDED UP&DN Low glare LINEAR · SUSPENDED, UP & DOWN NYLO SUSPENDED UP&DN Up to 9,310 lm 43 mm 70/30 75k h NYLO RECESSED Low glare LINEAR · RECESSED, LOUVRED OPTIC NYLO RECESSED Up to 7,282 lm 57 mm UGR<19 75k h
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with NYLO BREAK SURFACE, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

  1. 01Surface 43 × 69mm aluminium profile; 1120 to 2800mm long
  2. 02Lens groups with blank sections: 2, 3, 4 or 5 groups by length
  3. 03Precision lenses in a louvre: symmetrical, UGR<19
  4. 0460° or 76° beam; black (B) or white (W) baffle, white baffle on white body
  5. 05840 / 830, 940 / 930 / 927 (CRI >90); tunable white 2700-6500 K
  6. 06Fixed output, DALI, DT8 or Casambi wireless (bDW), integral Tridonic gear
  7. 07Linear, L, T and X connectors for continuous runs and shapes
  8. 08IP40, IK02, Class I; L80B10 75,000 h

Specification

IP
IP40
IK
IK02
UGR
<19
Lifetime
75,000 h
Colour options
840, 830, 940, 930, 927, Tunable white 927-965 (DT8)
Tunable white
Yes (DT8), 2700-6500 K
Controls
FI, DALI, DT8 (tunable white), bDW
Emergency
EM, EMST, EMD2 (integral, 3 W)
Mounting
Surface mounted; end caps, linear, L, T and X connectors for runs and shapes, through-wiring
Finish
WHITE White, BLACK Black
Supply
230 V 50 Hz
Electrical class
Class I
Dimensions
43 x 69mm profile; lengths 1120 / 1680 / 2240 / 2800mm with 2 / 3 / 4 / 5 lens groups
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE
  • RoHS
  • WEEE
  • 230 V 50 Hz
  • Class I
  • IP40
  • Emergency BS 5266-1

Tridonic control gear as standard, integral to the luminaire: fixed output, DALI, DALI DT8 (tunable white) or Casambi wireless (bDW). Integral emergency: 3hr manual test, self-test or DALI-2 (3 W). IP40, IK02, ambient −20 to +35 °C.

diVa five year warranty

Downloads

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
