Linear · Recessed, louvred optic

NYLO RECESSED

Range code NYLO RE
NYLO RECESSED

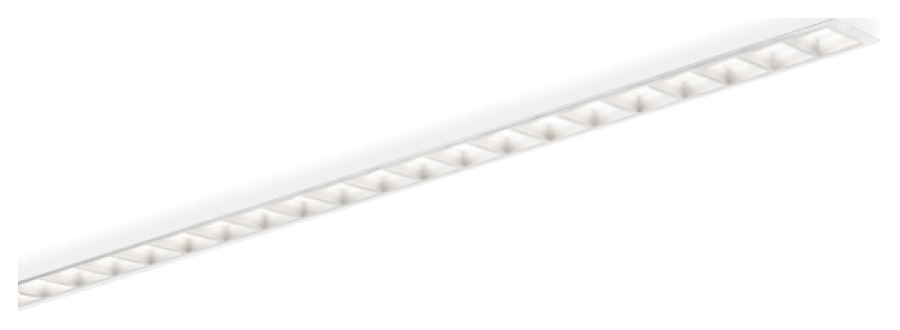

NYLO RECESSED sets a slim 57mm line of light flush into the ceiling: precision lenses in a louvre give crisp, symmetrical, UGR<19 light from a slot barely wider than two fingers. 280, 1120 or 1400mm lengths, joinable into runs and shapes, at up to 7,282 lm. Clips in without tools.

Up to7,282lm Output (1400mm, 4000 K)
57mm Trim; 47mm cut-out
UGR<19 Louvred lens optic
75kh L80B10
Datasheet (PDF) Part-code builder Technical data Downloads
Applications
Offices Open plan areas Meeting rooms Corridors Reception areas Schools Retail Hospitality Low glare applications

Technical information

Enter the bold lumen value in Relux.

Photometric file format:

Higher emergency output (6 W) on request.

280mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
11659129.4560 NYLO-RE-9W-940-60-B-280mm.LDT
13569150.7560 NYLO-RE-9W-840-60-B-280mm.LDT
280mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
11439127.0560 NYLO-RE-9W-940-76-B-280mm.LDT
13309147.8560 NYLO-RE-9W-840-76-B-280mm.LDT
1120mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
235917138.8560 NYLO-RE-17W-940-60-B-1120mm.LDT
278617163.9560 NYLO-RE-17W-840-60-B-1120mm.LDT
466234137.1560 NYLO-RE-34W-940-60-B-1120mm.LDT
542334159.5560 NYLO-RE-34W-840-60-B-1120mm.LDT
1120mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
231417136.1560 NYLO-RE-17W-940-76-B-1120mm.LDT
273317160.8560 NYLO-RE-17W-840-76-B-1120mm.LDT
457334134.5560 NYLO-RE-34W-940-76-B-1120mm.LDT
532034156.5560 NYLO-RE-34W-840-76-B-1120mm.LDT
1400mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
294820147.4560 NYLO-RE-20W-940-60-B-1400mm.LDT
348220174.1560 NYLO-RE-20W-840-60-B-1400mm.LDT
582742138.7560 NYLO-RE-42W-940-60-B-1400mm.LDT
677942161.4560 NYLO-RE-42W-840-60-B-1400mm.LDT
1400mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
289220144.6560 NYLO-RE-20W-940-76-B-1400mm.LDT
341620170.8560 NYLO-RE-20W-840-76-B-1400mm.LDT
571642136.1560 NYLO-RE-42W-940-76-B-1400mm.LDT
665042158.3560 NYLO-RE-42W-840-76-B-1400mm.LDT

Light distribution

cd/klm
20040060080010001200
C0–C180 C90–C270

Intensities in cd/klm, so the shape applies to every output.

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range
NYLO
2 Mounting
Recessed
8 Length
1120mm, cut-out 1124 x 47mm
4 Colour temperature
4000 K, CRI >80
3 Output (W)
34 W 9W: Only with 280mm, cut-out 284 x 47mm and 840, 830, 940, 930 or 927 (colour temperature) · 20W: Only with 1400mm, cut-out 1404 x 47mm and 840, 830, 940, 930 or 927 (colour temperature), or 1400mm, cut-out 1404 x 47mm and tunable white 2700-6500 K, CRI >90 · 40W: Only with 1400mm, cut-out 1404 x 47mm and tunable white 2700-6500 K, CRI >90 · 42W: Only with 1400mm, cut-out 1404 x 47mm and 840, 830, 940, 930 or 927 (colour temperature)
5 Body finish
White
6 Beam
60° beam
7 Baffle
Black baffle
9 Control gear
DALI dimming DT8: Only with tunable white 2700-6500 K, CRI >90
10 Emergency
No emergency
Your part code The wattage follows the length and colour temperature (tunable white has its own wattages, takes DT8 gear and comes in 1120 and 1400mm). The white baffle comes on the white body only. Continuous runs and L, T and X shapes: discuss with the diVa sales office.
Add to schedule

Also in the range

NYLO SUSPENDED Low glare LINEAR · SUSPENDED, LOUVRED OPTIC NYLO SUSPENDED Up to 7,282 lm 43 mm UGR<19 75k h NYLO SUSPENDED UP&DN Low glare LINEAR · SUSPENDED, UP & DOWN NYLO SUSPENDED UP&DN Up to 9,310 lm 43 mm 70/30 75k h NYLO BREAK SURFACE Low glare LINEAR · SURFACE, LOUVRED OPTIC NYLO BREAK SURFACE Up to 7,282 lm 43 mm UGR<19 75k h
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with NYLO RECESSED, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

  1. 01Recessed 57mm trim, 43 × 61mm body; 280, 1120 or 1400mm long
  2. 02Precision lenses in a louvre: symmetrical, UGR<19
  3. 0360° or 76° beam; black (B) or white (W) baffle, white baffle on white body
  4. 04840 / 830, 940 / 930 / 927 (CRI >90); tunable white 2700-6500 K
  5. 05Fixed output, DALI, DT8 or Casambi wireless (bDW), integral Tridonic gear
  6. 06Tool-free rapid-mounting brackets; cut-outs 47mm wide
  7. 07Linear, L, T and X connectors for continuous runs and shapes
  8. 08IP20 (IP43 optic), IK02, Class I; L80B10 75,000 h

Specification

IP
IP20 (IP43 optic)
IK
IK02
UGR
<19
Lifetime
75,000 h
Colour options
840, 830, 940, 930, 927, Tunable white 927-965 (DT8)
Tunable white
Yes (DT8), 2700-6500 K
Controls
FI, DALI, DT8 (tunable white), bDW
Emergency
EM, EMST, EMD2 (integral, 3 W; 1120 and 1400mm)
Mounting
Recessed in a 47mm wide ceiling cut-out on tool-free rapid-mounting brackets; linear, L, T and X connectors for runs and shapes
Finish
WHITE White, BLACK Black
Supply
230 V 50 Hz
Electrical class
Class I
Dimensions
57mm trim, 43 x 61mm body; lengths 280 / 1120 / 1400mm (297 / 1137 / 1417mm overall); cut-outs 284 / 1124 / 1404 x 47mm
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE
  • RoHS
  • WEEE
  • 230 V 50 Hz
  • Class I
  • IP20
  • Emergency BS 5266-1

Tridonic control gear as standard, integral to the luminaire: fixed output, DALI, DALI DT8 (tunable white) or Casambi wireless (bDW). Integral emergency on 1120 and 1400mm: 3hr manual test, self-test or DALI-2 (3 W). IP20 (IP43 optic), IK02, ambient −20 to +35 °C.

diVa five year warranty

Downloads

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
