Linear · Suspended, louvred optic

NYLO SUSPENDED

Range code NYLO SUSP DN
NYLO SUSPENDED

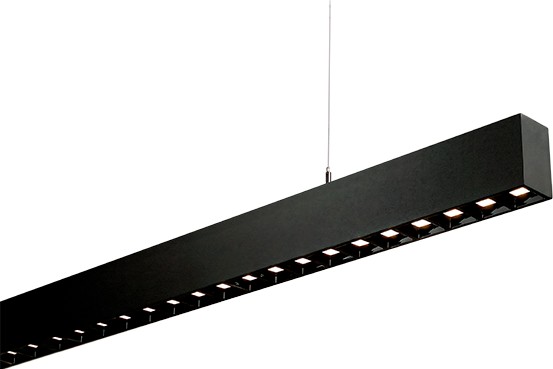

NYLO SUSPENDED is a slim 43mm line of light with precision lenses set in a louvre: crisp, symmetrical, UGR<19 light from a profile that all but disappears overhead. 1120 or 1400mm lengths, joinable into runs and shapes, at up to 7,282 lm. Small section, big performance.

Up to7,282lm Output (1400mm, 4000 K)
43mm Wide; 69mm deep
UGR<19 Louvred lens optic
75kh L80B10
Datasheet (PDF) Part-code builder Technical data Downloads
Applications
Offices Open plan areas Meeting rooms Reception areas Schools Libraries Retail Hospitality Low glare applications

Technical information

Enter the bold lumen value in Relux.

Photometric file format:

Higher emergency output (6 W) on request.

1120mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
235917138.8560 NYLO-SUSP-DN-17W-940-60-B-1120mm.LDT
278617163.9560 NYLO-SUSP-DN-17W-840-60-B-1120mm.LDT
466234137.1560 NYLO-SUSP-DN-34W-940-60-B-1120mm.LDT
542334159.5560 NYLO-SUSP-DN-34W-840-60-B-1120mm.LDT
1120mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
231417136.1560 NYLO-SUSP-DN-17W-940-76-B-1120mm.LDT
273317160.8560 NYLO-SUSP-DN-17W-840-76-B-1120mm.LDT
457334134.5560 NYLO-SUSP-DN-34W-940-76-B-1120mm.LDT
532034156.5560 NYLO-SUSP-DN-34W-840-76-B-1120mm.LDT
1400mm 60° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
294820147.4560 NYLO-SUSP-DN-20W-940-60-B-1400mm.LDT
348220174.1560 NYLO-SUSP-DN-20W-840-60-B-1400mm.LDT
582742138.7560 NYLO-SUSP-DN-42W-940-60-B-1400mm.LDT
677942161.4560 NYLO-SUSP-DN-42W-840-60-B-1400mm.LDT
1400mm 76° black baffle
Output lmWlm/WEmergency lm (3 W)Photometric file
289220144.6560 NYLO-SUSP-DN-20W-940-76-B-1400mm.LDT
341620170.8560 NYLO-SUSP-DN-20W-840-76-B-1400mm.LDT
571642136.1560 NYLO-SUSP-DN-42W-940-76-B-1400mm.LDT
665042158.3560 NYLO-SUSP-DN-42W-840-76-B-1400mm.LDT

Light distribution

cd/klm
20040060080010001200
C0–C180 C90–C270

Intensities in cd/klm, so the shape applies to every output.

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range
NYLO
2 Mounting
Suspended
3 Light
Downlight
5 Colour temperature
4000 K, CRI >80
9 Length
1120mm
4 Output (W)
34 W 20W: Only with 1400mm and 840, 830, 940, 930 or 927 (colour temperature), or 1400mm and tunable white 2700-6500 K, CRI >90 · 40W: Only with 1400mm and tunable white 2700-6500 K, CRI >90 · 42W: Only with 1400mm and 840, 830, 940, 930 or 927 (colour temperature)
6 Body finish
White
7 Beam
60° beam
8 Baffle
Black baffle
10 Control gear
DALI dimming DT8: Only with tunable white 2700-6500 K, CRI >90
11 Ceiling cup
Surface ceiling cup, Ø62 x 36mm
12 Suspension
3 m cables
13 Emergency
No emergency
Your part code The wattage follows the length and colour temperature (tunable white has its own wattages and takes DT8 gear). The white baffle comes on the white body only. Continuous runs and L, T and X shapes: discuss with the diVa sales office.
Add to schedule

Also in the range

NYLO SUSPENDED UP&DN Low glare LINEAR · SUSPENDED, UP & DOWN NYLO SUSPENDED UP&DN Up to 9,310 lm 43 mm 70/30 75k h NYLO RECESSED Low glare LINEAR · RECESSED, LOUVRED OPTIC NYLO RECESSED Up to 7,282 lm 57 mm UGR<19 75k h NYLO BREAK SURFACE Low glare LINEAR · SURFACE, LOUVRED OPTIC NYLO BREAK SURFACE Up to 7,282 lm 43 mm UGR<19 75k h
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with NYLO SUSPENDED, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

  1. 01Extruded aluminium profile, 43 × 69mm, 1120mm or 1400mm long; seamless end caps
  2. 02Precision lenses in a louvre: symmetrical, UGR<19
  3. 0360° or 76° beam; black (B) or white (W) baffle, white baffle on white body
  4. 04840 / 830, 940 / 930 / 927 (CRI >90); tunable white 2700-6500 K
  5. 05Fixed output, DALI, DT8 or Casambi wireless (bDW), integral Tridonic gear
  6. 06Integral emergency: 3hr manual test, self-test or DALI-2
  7. 07Linear, L, T and X connectors for continuous runs and shapes
  8. 08IP40, IK02, Class I; L80B10 75,000 h; Ta −20 to +35 °C

Specification

IP
IP40
IK
IK02
UGR
<19
Lifetime
75,000 h
Colour options
840, 830, 940, 930, 927, Tunable white 927-965 (DT8)
Tunable white
Yes (DT8), 2700-6500 K
Controls
FI, DALI, DT8 (tunable white), bDW
Emergency
EM, EMST, EMD2 (integral, 3 W)
Mounting
Suspended on two stainless steel cables (1, 3 or 5 m); recessed (S1) or surface (S2) ceiling cup carrying the mains
Finish
WHITE White, BLACK Black
Supply
230 V 50 Hz
Electrical class
Class I
Dimensions
Profile 43 x 69mm; lengths 1120 / 1400mm; L connector 122 x 122mm, T and X connectors 200 x 200mm
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE
  • RoHS
  • WEEE
  • 230 V 50 Hz
  • Class I
  • IP40
  • Emergency BS 5266-1

Tridonic control gear as standard, integral to the luminaire: fixed output, DALI, DALI DT8 (tunable white) or Casambi wireless (bDW). Integral emergency: 3hr manual test, self-test or DALI-2 (3 W). IP40, IK02, ambient −20 to +35 °C.

diVa five year warranty

Downloads

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
