NYSA 100

Range code NY100
NYSA 100

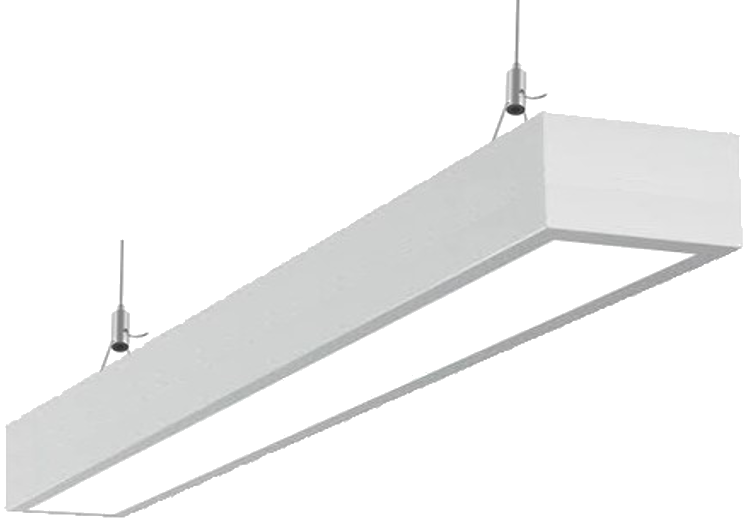

NYSA 100 is a slim suspended linear for offices and schools: a 100 x 80mm powder coated zintec body carrying two rows of diVa CREE LED boards behind a flush opal diffuser, 1200 or 1500mm, up to 11,520 lm at up to 211 lm/W. Fixed output, DALI, corridor function, Casambi or tunable white, with every emergency option. Clean lines, bright ideas.

Up to11,520lm 1500mm, 58.3 W
211lm/W Up to; diVa CREE LED boards
100mm 100 x 80mm profile
1200 · 1500 Lengths, mm
Datasheet (PDF) Part-code builder Technical data Downloads
Applications
Offices Schools Colleges Universities Reception areas Meeting rooms Foyers Circulation areas

Technical information

Enter the bold lumen value in Relux.

Photometric file format:

Higher emergency output (6 W) on request.

1200mm
Output lmWlm/WEmergency lm (3 W)Photometric file
375017.80210.7630 NY100-3750-840-1200.LDT
470022.50208.9630 NY100-4700-840-1200.LDT
528025.80204.7630 NY100-5280-840-1200.LDT
660032.70201.8630 NY100-6600-840-1200.LDT
792039.60200.0630 NY100-7920-840-1200.LDT
920046.70197.0630 NY100-9200-840-1200.LDT
1500mm
Output lmWlm/WEmergency lm (3 W)Photometric file
400019.00210.5630 NY100-4000-840-1500.LDT
500024.00208.3630 NY100-5000-840-1500.LDT
660032.30204.3630 NY100-6600-840-1500.LDT
8350 STD40.80204.7630 NY100-8350-840-1500.LDT
990049.50200.0630 NY100-9900-840-1500.LDT
1152058.30197.6630 NY100-11520-840-1500.LDT

Light distribution

cd/klm
100200300400500
C0–C180 C90–C270

Intensities in cd/klm, so the shape applies to every output.

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range
NYSA 100
6 Length
1500mm
2 Output (lm)
8,350 lm, 40.8 W Depends on: Length
3 CRI / CCT
80 CRI, 4000 K
4 Control gear
Fixed output Depends on: CRI / CCT
5 Colour
White
7 Suspension
1 m suspension kit
8 Emergency
No emergency
Your part code Outputs are LED board lumens. Tunable white (927-965) takes DT8, cSW or Casambi. Other lengths and CRI >90 to order.
Add to schedule
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with NYSA 100, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

  1. 01Suspended linear, 100 x 80mm powder coated zintec body
  2. 02Two rows of diVa CREE LED boards behind an opal diffuser
  3. 031200mm up to 9,200 lm, 1500mm up to 11,520 lm
  4. 04Up to 211 lm/W (LED boards); 3000, 4000 or 6500 K, CRI >80
  5. 05Tunable white 2700 to 6500 K (DT8, cSW or Casambi)
  6. 06Fixed output, DALI, corridor function, 1-10V or Casambi
  7. 07White, black or silver; any RAL colour to order
  8. 08Emergency EM, EMST or EMD2; 1 m suspension, 2 m or 5 m kits

Specification

IP
IP20
Lifetime
125,000 h
Colour options
830, 840, 865, tunable white 2700 to 6500 K
Tunable white
2700 to 6500 K
Controls
FI, DALI, swDIM, CF, 1-10V, DT8, bDW, cSW
Emergency
EM, EMST, EMD2
Mounting
Suspended on wires (1 m standard; 2 m and 5 m kits)
Finish
WH White, BL Black, SL Silver
Supply
230 V 50 Hz
Electrical class
Class I
Dimensions
1200 or 1500 x 100 x 80mm; 1 m suspension standard, 2 m or 5 m kits
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE
  • RoHS
  • WEEE
  • 230 V 50 Hz
  • Class I
  • IP20
  • Emergency BS 5266-1

Tridonic driver as standard. Helvar, Philips, Inventronics and unbranded options available upon request. DT8, cSW or Casambi with tunable white.

diVa five year warranty
