PROTEUS TUBE 24

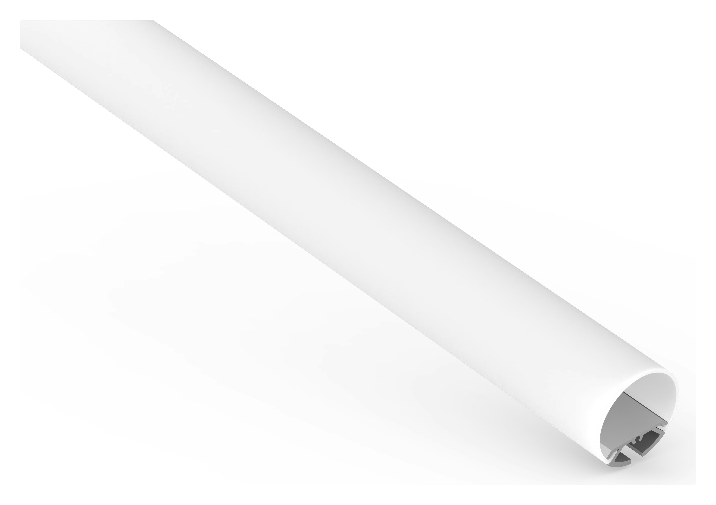

PROTEUS TUBE 24 is the slim round line: a Ø24mm aluminium tube with a round opal diffuser, on adjustable clips that let you aim it, or hung on a suspension kit. A kit of parts: profile and diffuser, LED strip, then driver and controls, each with its own code. Tell us the length; we size the rest.

Ø24mm Round aluminium tube

Up to14.4W/m LED strip load

Up to1,600lm/m LED strip (LLE-EX5/1600)

Surface Adjustable clips or suspension kit

Datasheet (PDF) PROTEUS LED kit builder Downloads

Applications

Shelving & displays Joinery Retail Hospitality Wardrobes Residential

PROTEUS LED kit builder

Pick one option in each position. Every combination shown is a valid build.

Start here: your LED strip installation lengths

LED strip length (m)

Number of lengths

Number of drivers

Profiles come in standard lengths (2000mm; some profiles also 3000mm) and are cut to length on site. Profile, strip, end caps, clips, joiners and drivers below are all counted from your lengths; for different lengths, add each one to your schedule in turn.

1 Profile & diffuser

1 Profile

PROTEUS TUBE 24, Ø24mm

2 Length

2000mm profile

3 Finish

Aluminium, silver finish

4 Diffuser

Opal diffuser

Profile code

2 LED strip

This profile takes LED strip up to 14.4 W/m and 14.5mm wide; only strips that fit are offered.

Strip code

3 Driver & controls

Driver code

Many other driver and control options are available: discuss with the diVa sales office.

4 Accessories

Code	Item	Quantity
PR/T24/EC	End cap, solid
PR/T24/ECH	End cap with cable hole (feed end)
PR/T24/MCL	Adjustable mounting clip

5 Summary of component selection

Code	Item	Qty

Profile and diffuser (part 1) with its accessories. LED strip (part 2) and driver and controls (part 3) follow as their own lines. Suspension kits on request.

Add to schedule

Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with PROTEUS TUBE 24, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.

Request a lighting design

Features

01Ø24mm round aluminium tube, round opal diffuser
02Takes 24 V LED strip up to 14.4 W/m and 14.5mm wide
03Adjustable clips: aim the light where it is needed
04Suspension kits on request
05Aluminium as standard; white, black or RAL to order
062000mm profiles as standard; custom lengths to order
07Driver sized from the length: fixed, DALI or Casambi
08End caps and clips on their own lines

Specification

Colour options: 827, 830, 840, 930, 940
Controls: Fixed output, DALI, Casambi (bDW)
Emergency: Not available
Mounting: Surface, adjustable clips (suspension kits on request)
Finish: AL Aluminium, silver finish, WH White (9003), BL Black
Supply: 24 V DC SELV (driver 230 V 50 Hz)
Dimensions: Tube Ø24mm, strip up to 14.5mm wide; 2000mm profiles (custom lengths to order)
Warranty: 5 years

Control gear, standards & warranty

UKCA
CE
SELV 24 V

24 V DC SELV LED strip: use only with the SELV constant-voltage driver supplied in the kit. Drivers sized from the length (strip load + 20%): Tridonic fixed output or DALI (IP20), Meanwell HLG fixed output (IP67), Casambi wireless (bDW). Several lengths can share one driver.

Downloads

Datasheet PROTEUS-TUBE-24.pdf Open Download

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
