PROTEUS TUBE 60

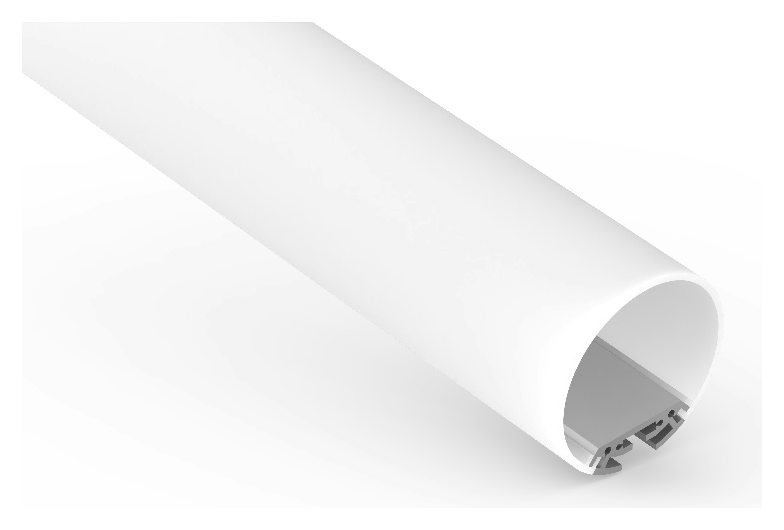

PROTEUS TUBE 60 hangs a round line of light in the space: a Ø60mm aluminium spine under a round opal diffuser that glows all the way round, on suspension kits. Up to 28.8 W/m of strip on a 30mm base. A kit of parts: profile and diffuser, LED strip, then driver and controls, each with its own code. Tell us the length; we size the rest.

Ø60mm Round aluminium tube

Up to28.8W/m LED strip load

Up to2,500lm/m LED strip (LLE-EX5/2500)

Suspended Suspension kits; surface kits to order

Datasheet (PDF) PROTEUS LED kit builder Downloads

Applications

Offices Reception areas Retail Hospitality Atriums Residential

PROTEUS LED kit builder

Pick one option in each position. Every combination shown is a valid build.

Start here: your LED strip installation lengths

LED strip length (m)

Number of lengths

Number of drivers

Profiles come in standard lengths (2000mm; some profiles also 3000mm) and are cut to length on site. Profile, strip, end caps, clips, joiners and drivers below are all counted from your lengths; for different lengths, add each one to your schedule in turn.

1 Profile & diffuser

1 Profile

PROTEUS TUBE 60, Ø60mm

2 Length

2000mm profile

3 Finish

Aluminium, silver finish

4 Diffuser

Opal diffuser

Profile code

2 LED strip

This profile takes LED strip up to 28.8 W/m and 30mm wide; only strips that fit are offered.

Strip code

3 Driver & controls

Driver code

Many other driver and control options are available: discuss with the diVa sales office.

4 Accessories

Code	Item	Quantity
PR/T60/EC	End cap
PR/T60/SU	Suspension kit
PR/T60/J180	180° straight joiner

5 Summary of component selection

Code	Item	Qty

Profile and diffuser (part 1) with its accessories. LED strip (part 2) and driver and controls (part 3) follow as their own lines. Surface mounting kits and CNC aluminium end caps on request.

Add to schedule

Also in the range

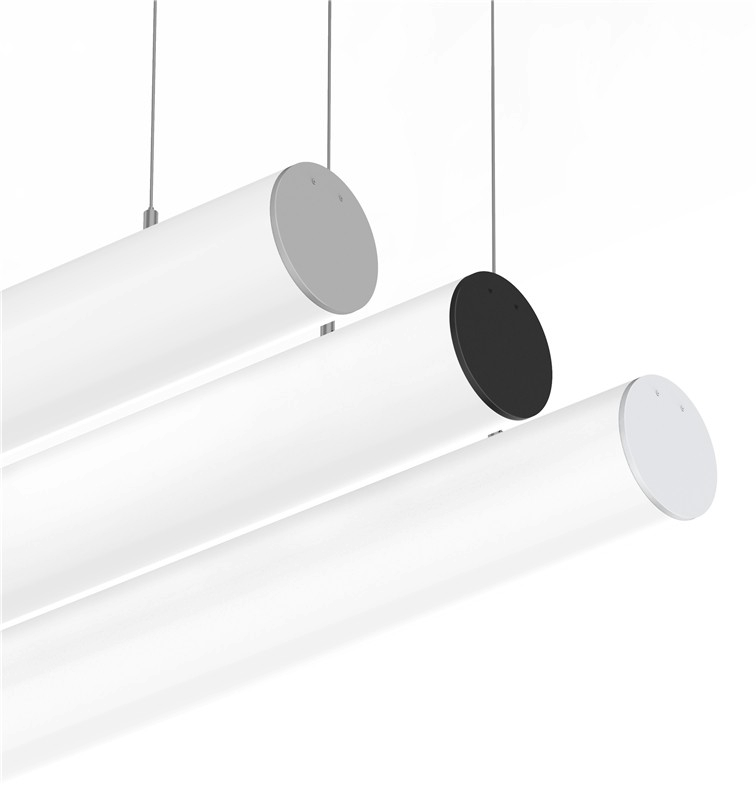

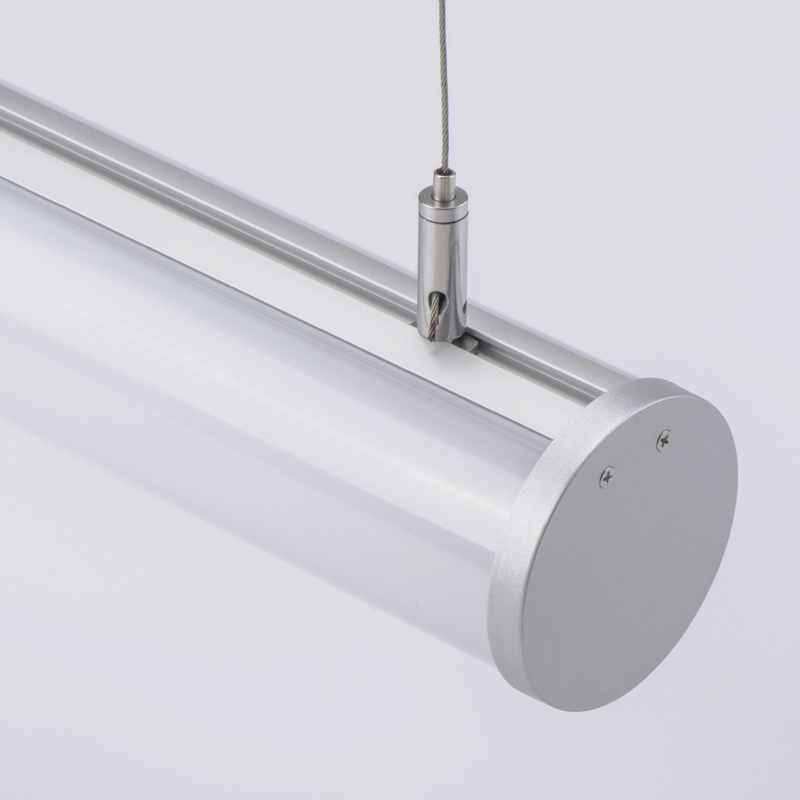

LINEAR · SUSPENDED FEATURE ASTERIOS Ø60 mm Up to 7,000 lm 200 lm/W 2000 mm

Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with PROTEUS TUBE 60, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.

Request a lighting design

Features

01Ø60mm round aluminium tube, glows all round
0230mm strip base, round opal PC diffuser
03Takes 24 V LED strip up to 28.8 W/m, single colour or RGBW
04Suspended on suspension kits, 2 per profile
05Aluminium as standard; white, black or RAL to order
062000mm or 2500mm profiles; custom to 6000mm
07Joined lengths with 180° joiners
08Driver sized from the length: fixed, DALI or Casambi

Specification

Colour options: 827, 830, 840, 860, 930, 940, 827-865
Controls: Fixed output, DALI, Casambi (bDW); colour changing and tunable white: DT8, DMX, Casambi (bDW), RF
Emergency: Not available
Mounting: Suspended, suspension kits (surface mounting kits on request)
Finish: AL Aluminium, silver finish, WH White (9003), BL Black
Supply: 24 V DC SELV (driver 230 V 50 Hz)
Dimensions: Tube Ø60mm (59.4mm high), 30mm strip base; 2000mm or 2500mm profiles (custom lengths to 6000mm)
Warranty: 5 years

Control gear, standards & warranty

UKCA
CE
SELV 24 V

24 V DC SELV LED strip: use only with the SELV constant-voltage driver supplied in the kit. Drivers sized from the length (strip load + 20%): Tridonic fixed output or DALI (IP20), Meanwell HLG fixed output (IP67), Casambi wireless (bDW). Several lengths can share one driver.

Downloads

Datasheet PROTEUS-TUBE-60.pdf Open Download

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
