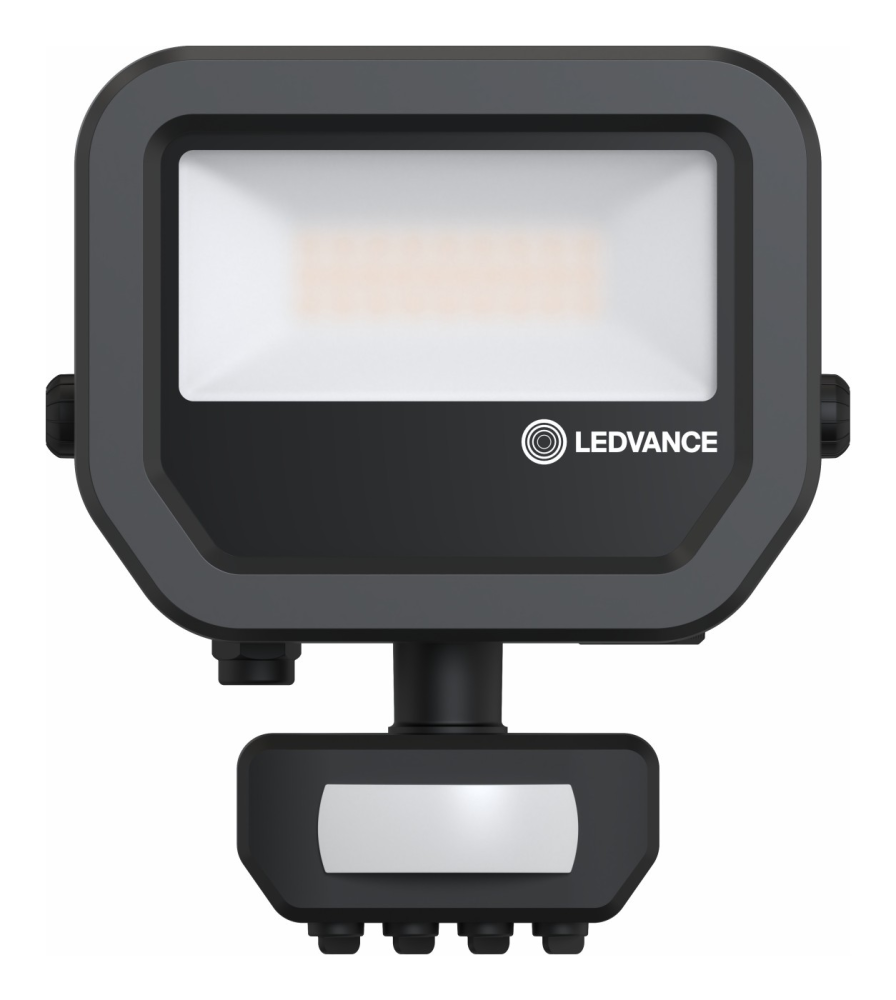

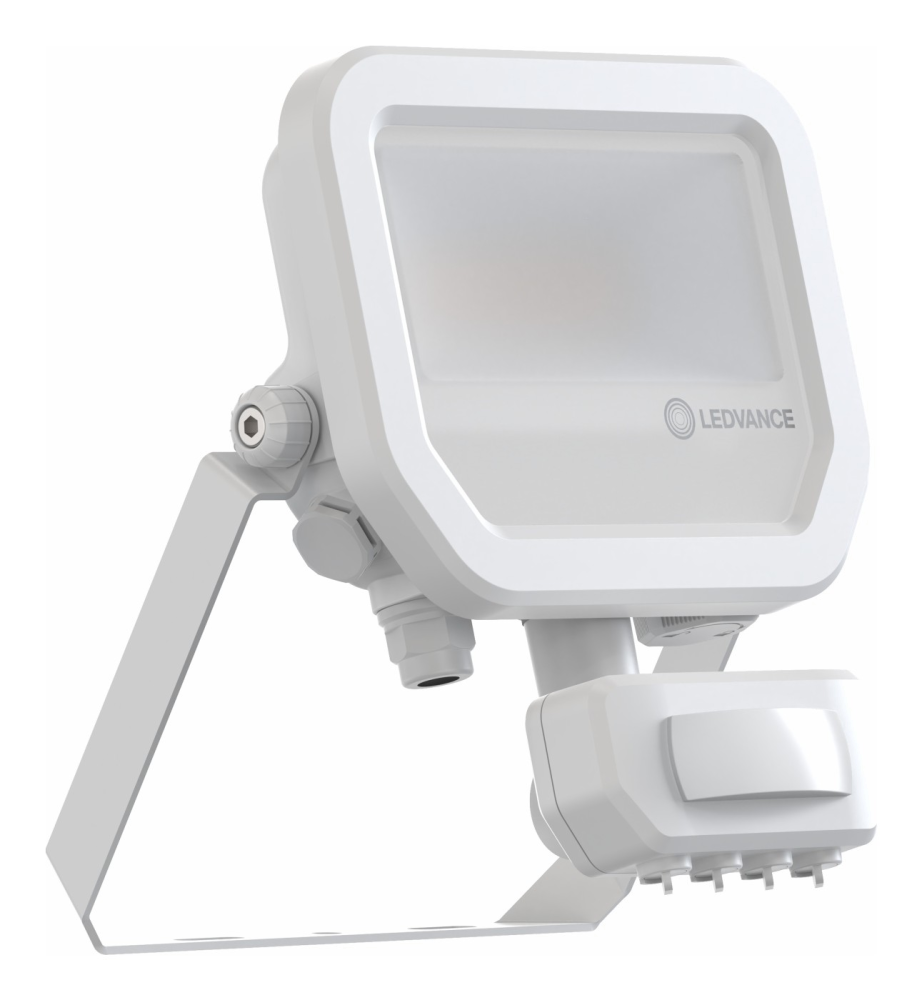

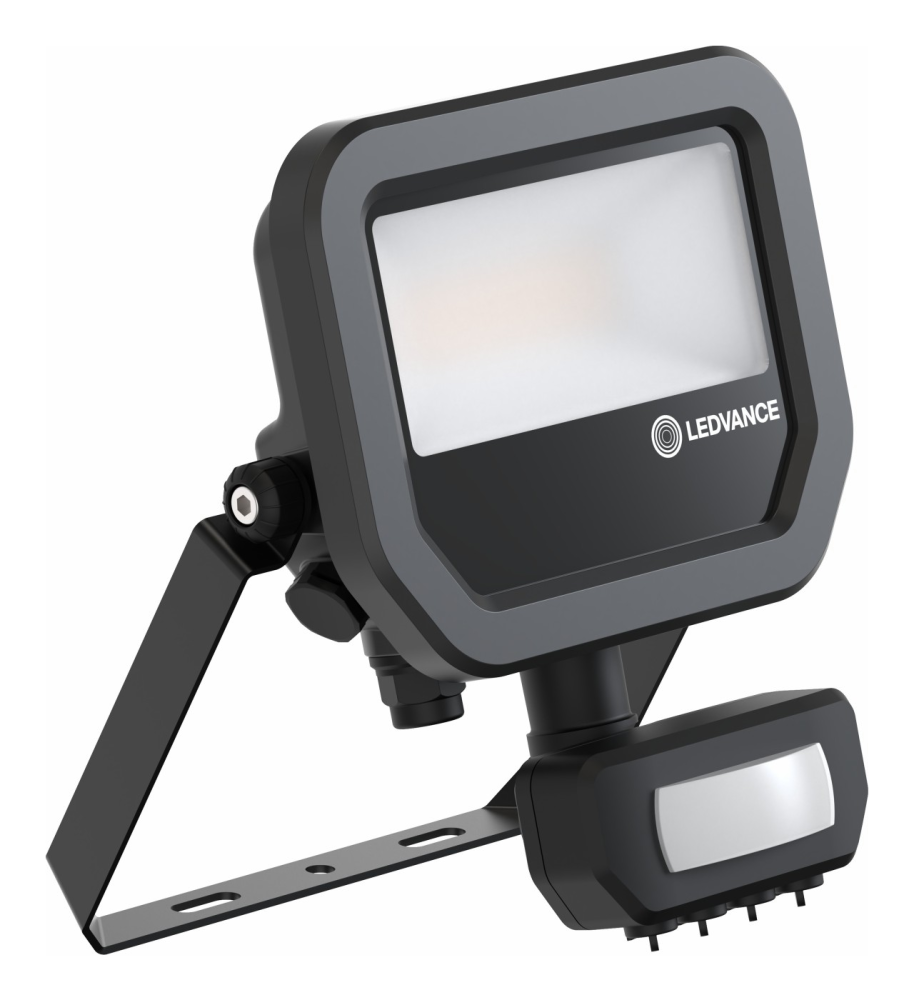

VULCAN PRO PIR is the LEDVANCE FLOODLIGHT SENSOR GEN 4: the VULCAN PRO floodlight with a flexible PIR motion and daylight sensor that pans 350° and tilts 200°, so detection points where it is needed. 1,200 to 6,000 lm at up to 145 lm/W, Multi Lumen steps on the housing, IP65. Lights on when someone arrives, off when they leave.
Up to6,000lm
145lm/W Up to
12m PIR detection range
IP65 · IK05 Class I
Applications
Technical information
Enter the bold lumen value in Relux.
Photometric file format:
136 x 170 x 57mm
| Output lm | W | lm/W | Photometric file |
|---|---|---|---|
| 1100 | 8.00 | 137.5 | VUPROPIR-1100-830.LDT |
| 1200 | 8.00 | 150.0 | VUPROPIR-1200-840.LDT |
157 x 183 x 57mm
| Output lm | W | lm/W | Photometric file |
|---|---|---|---|
| 2200 | 17.00 | 129.4 | VUPROPIR-2200-830.LDT |
| 2400 | 17.00 | 141.2 | VUPROPIR-2400-840.LDT |
201 x 219 x 57mm
| Output lm | W | lm/W | Photometric file |
|---|---|---|---|
| 5500 | 41.00 | 134.1 | VUPROPIR-5500-830.LDT |
| 6000 | 41.00 | 146.3 | VUPROPIR-6000-840.LDT |
Part-code builder
Pick one option in each position. Every combination shown is a valid build.
Your part code LEDVANCE FLOODLIGHT SENSOR GEN 4. Output codes are the higher Multi Lumen step at 4000 K; the lower step is selected on the housing. Photometric files for every output and colour temperature.
Also in the range
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with VULCAN PRO PIR, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting designFeatures
- 01LEDVANCE FLOODLIGHT SENSOR GEN 4 with PIR motion and daylight sensor
- 02Sensor pans 350° and tilts 200°; detection 2 to 12m, 40 to 160°
- 03Hold time 10 s to 12 min; daylight threshold 10 to 2,000 lux
- 04Always-on override by a mains switching pattern
- 051,200 to 6,000 lm, up to 145 lm/W; Multi Lumen step on the housing
- 06Symmetric 100° × 100° reflector, frosted tempered glass, ULOR 0%
- 07Die-cast aluminium, black or white; IP65, IK05, Class I
- 081 m H05RN-F cable; -30 to +50 °C; L80B10 75,000 h
Specification
- IP
- IP65
- IK
- IK05
- Colour options
- 830, 840
- Controls
- FI (PIR motion and daylight sensor)
- Mounting
- Adjustable bracket: wall, pole, floor or ceiling
- Finish
- BL Black (RAL 9017), WH White (RAL 9003)
- Supply
- 220-240 V 50-60 Hz
- Electrical class
- Class I
- Dimensions
- 136 x 170 x 57mm (1,200 lm); 157 x 183 x 57mm (2,400 lm); 201 x 219 x 57mm (6,000 lm)
- Warranty
- 5 years
Control gear, standards & warranty
- UKCA
- CE
- RoHS
- WEEE
- 230 V 50 Hz
- Class I
- IP65
LEDVANCE integrated driver, fixed output; Multi Lumen step selectable on the housing.
Downloads
- Datasheet VULCAN-PRO-PIR.pdf Open Download
- UKCA / CE Declaration VULCAN-PRO-PIR-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download
- Photometric files (LDT) 6 files Registered Sign in to download
Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
