Outdoor & exterior · Floodlight

VULCAN PRO

Range code VUPRO
VULCAN PRO

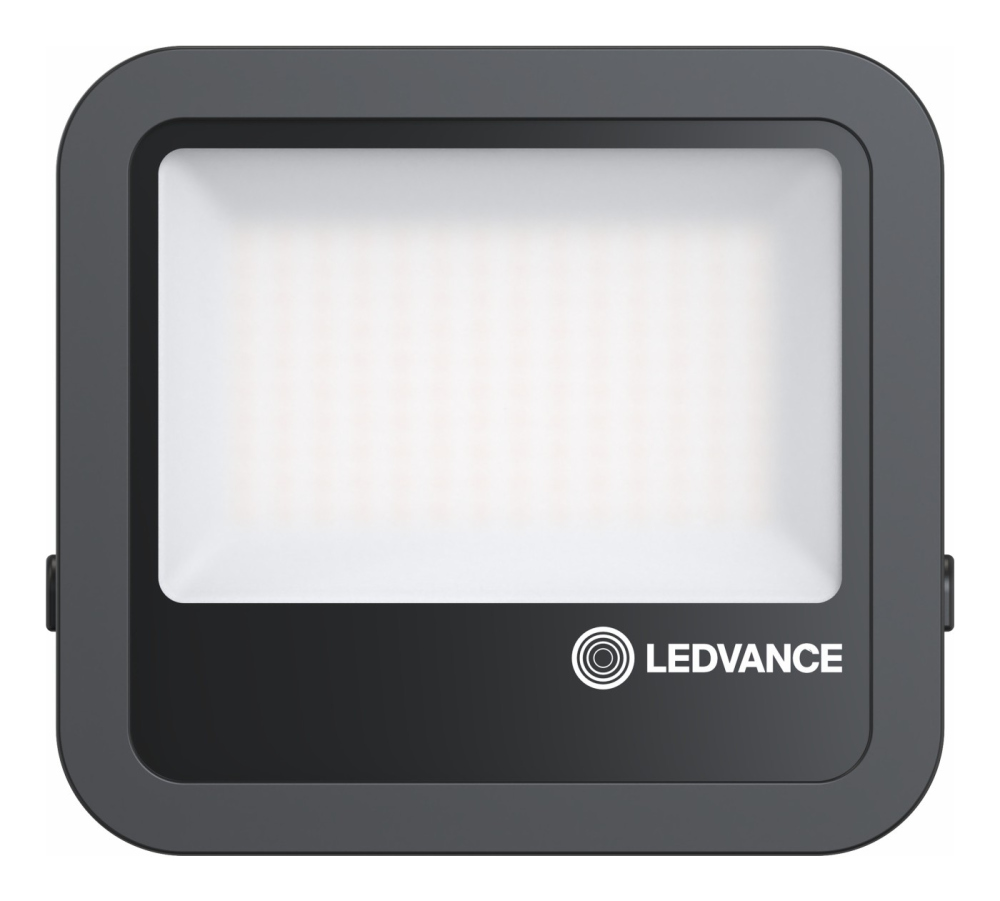

VULCAN PRO is the LEDVANCE FLOODLIGHT GEN 4: a reflector-based floodlight from 1,200 to 25,000 lm at up to 150 lm/W, with two Multi Lumen steps selectable on the housing, a frosted tempered glass diffuser for a smooth symmetric 100° beam and no upward light at 0° tilt. IP66, C4 corrosion class, black or white. Big beams, small bills.

Up to25,000lm
150lm/W Up to
100° Symmetric beam
IP66 · IK08 Class I
Datasheet (PDF) Part-code builder Technical data Downloads
Applications
Building exteriors Facades Car parks Yards Construction areas Security lighting Sports areas

Technical information

Enter the bold lumen value in Relux.

Photometric file format:

136 x 127 x 36mm
Output lmWlm/WPhotometric file
11008.00137.5 VUPRO-1100-830.LDT
157 x 141 x 38mm
Output lmWlm/WPhotometric file
220017.00129.4 VUPRO-2200-830.LDT
201 x 179 x 43mm
Output lmWlm/WPhotometric file
550041.00134.1 VUPRO-5500-830.LDT
236 x 236 x 52mm
Output lmWlm/WPhotometric file
915069.00132.6 VUPRO-9150-830.LDT
266 x 343 x 55mm
Output lmWlm/WPhotometric file
14000100.00140.0 VUPRO-14000-830.LDT
294 x 376 x 58mm
Output lmWlm/WPhotometric file
18600133.00139.8 VUPRO-18600-830.LDT
329 x 409 x 61mm
Output lmWlm/WPhotometric file
23400167.00140.1 VUPRO-23400-830.LDT

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range
VULCAN PRO
2 Output (lm)
10,000 lm, 69 W (lower step 53 W / 8,000 lm)
3 CRI / CCT
80 CRI, 3000 K
4 Control gear
Fixed output
5 Finish
Black, RAL 9017
Your part code LEDVANCE FLOODLIGHT GEN 4. Output codes are the higher Multi Lumen step at 4000 K; the lower step is selected on the housing. Photometric files for every output and colour temperature.
Add to schedule

Also in the range

VULCAN PRO PIR OUTDOOR & EXTERIOR · FLOODLIGHT WITH PIR SENSOR VULCAN PRO PIR Up to 6,000 lm 145 lm/W 12 m IP65 · IK05
Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with VULCAN PRO, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.
Request a lighting design

Features

  1. 01LEDVANCE FLOODLIGHT GEN 4, reflector-based optic
  2. 021,200 to 25,000 lm, up to 150 lm/W (840)
  3. 03Multi Lumen: two outputs selectable on the housing
  4. 04Symmetric 100° × 100° beam; ULOR 0% at 0° tilt
  5. 05Frosted tempered glass, breather membrane, waterstop gland
  6. 06Die-cast aluminium, black or white; C4 corrosion class
  7. 07IP66, IK07 (to 6,000 lm) / IK08, Class I, D-sign
  8. 08-30 to +50 °C; L80B10 75,000 h, L70B50 100,000 h

Specification

IP
IP66
IK
IK08
Colour options
830, 840, 865
Controls
FI
Mounting
Adjustable bracket: wall, pole, floor or ceiling
Finish
BL Black (RAL 9017), WH White (RAL 9003)
Supply
220-240 V 50-60 Hz
Electrical class
Class I
Dimensions
136 x 127 x 36mm (1,200 lm); 157 x 141 x 38mm (2,400 lm); 201 x 179 x 43mm (6,000 lm); 236 x 236 x 52mm (10,000 lm); 266 x 343 x 55mm (15,000 lm); 294 x 376 x 58mm (20,000 lm); 329 x 409 x 61mm (25,000 lm)
Warranty
5 years

Control gear, standards & warranty

  • UKCA
  • CE
  • RoHS
  • WEEE
  • 230 V 50 Hz
  • Class I
  • IP66

LEDVANCE integrated driver, fixed output; Multi Lumen step selectable on the housing.

diVa five year warranty

Downloads

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
