XANTHOS SLIMLINE - diVa lighting ltd

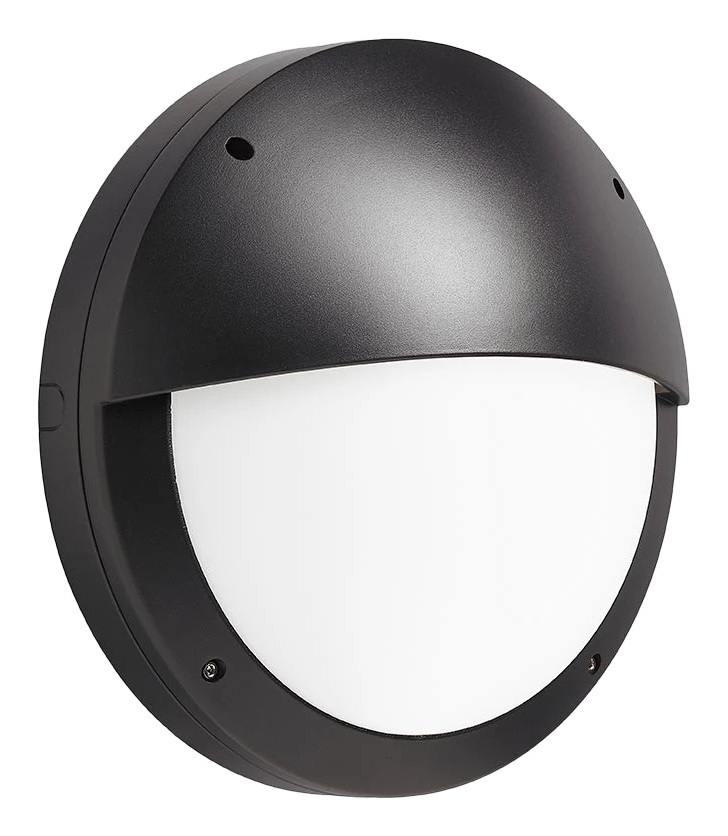

XANTHOS SLIMLINE is a round amenity bulkhead that takes the knocks: cast aluminium, IP65 and IK10, with an opal polycarbonate lens behind an open face, eyelid hood or crossblade grille. Up to 2,000 lm, fixed output or DALI, an optional microwave sensor and three hours of LiFePO4 emergency. Slim in profile, thick-skinned in service.

Up to2,000lm Open face; 22.6 W

Ø362mm 105mm deep

IP65 IK10, Class I

3h Maintained emergency, LiFePO4

Datasheet (PDF) Part-code builder Technical data Downloads

Applications

Walkways Car parks Tunnels Building exteriors Fire escapes Storage areas Schools

Technical information

Enter the bold lumen value in Relux.

Photometric file format:

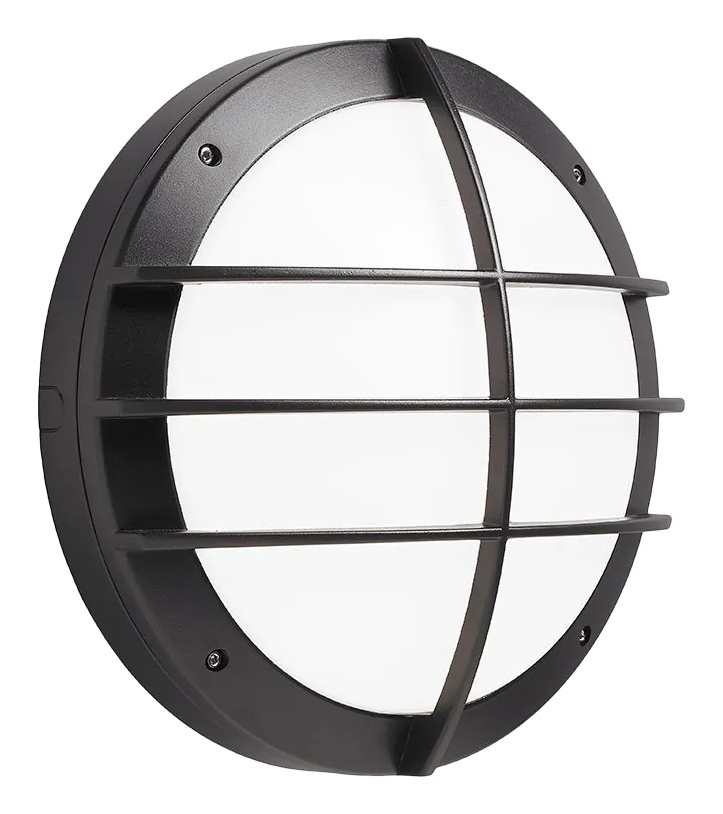

Crossblade grille

Output lm	W	lm/W	Photometric file
1660	22.60	73.5	XASL-1660-830-GR.LDT
1660	22.60	73.5	XASL-1660-835-GR.LDT
1660	22.60	73.5	XASL-1660-840-GR.LDT

Output lm	W	lm/W	Photometric file
1625	22.60	71.9	XASL-1625-830-HD.LDT
1625	22.60	71.9	XASL-1625-835-HD.LDT
1625	22.60	71.9	XASL-1625-840-HD.LDT

Output lm	W	lm/W	Photometric file
2000	22.60	88.5	XASL-2000-830-O.LDT
2000	22.60	88.5	XASL-2000-835-O.LDT
2000	22.60	88.5	XASL-2000-840-O.LDT

Light distribution

cd/klm

C0–C180 C90–C270

Intensities in cd/klm, so the shape applies to every output.

Part-code builder

Pick one option in each position. Every combination shown is a valid build.

1 Range

XANTHOS SLIMLINE

6 Front

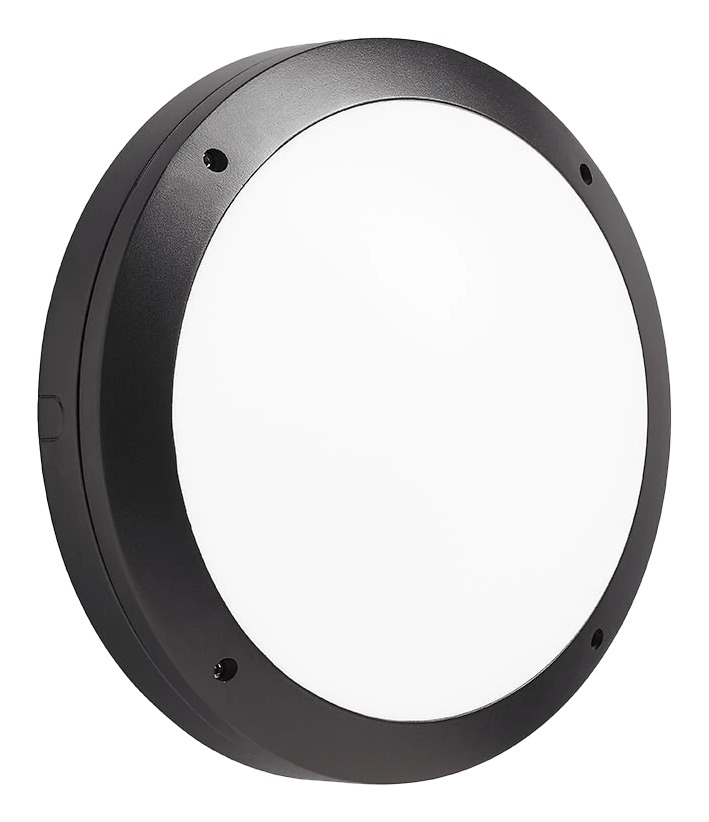

Open face

2 Output

2,000 lm, open face 1660: Only with crossblade grille · 1625: Only with eyelid hood

3 Colour temperature

80 CRI, 3000 K

4 Control gear

Fixed output

5 Colour

Black

7 Sensor

None

8 Emergency

No emergency

Your part code Output follows the front: open face 2,000 lm, crossblade grille 1,660 lm, eyelid hood 1,625 lm (22.6 W). White only with the open face. Maintained emergency, 3 hours; non-maintained by leaving out the switched live.

Add to schedule

Free lighting design service Not sure which output? Send us the drawings. We lay out the scheme with XANTHOS SLIMLINE, calculate it in Relux to EN 12464-1 and return marked-up plans with part codes.

Request a lighting design

Features

01Round IP65 amenity bulkhead, Ø362 x 105mm
02Cast aluminium body, opal polycarbonate lens
03Open face, eyelid hood or crossblade grille
04Up to 2,000 lm at 3000, 3500 or 4000 K
05Fixed output or DALI; microwave sensor option
06Maintained 3hr emergency, LiFePO4 battery
07Vandal resistant, IK10; black or white
08Ambient up to +35 °C (emergency 0 to +25 °C)

Specification

IP: IP65
IK: IK10
Colour options: 830, 835, 840
Controls: FI, DALI
Emergency: EM standard, EMD2 DALI-2 / self-test (maintained, 3 hours, LiFePO4; 400 / 325 / 320 lm)
Mounting: Surface (wall or ceiling)

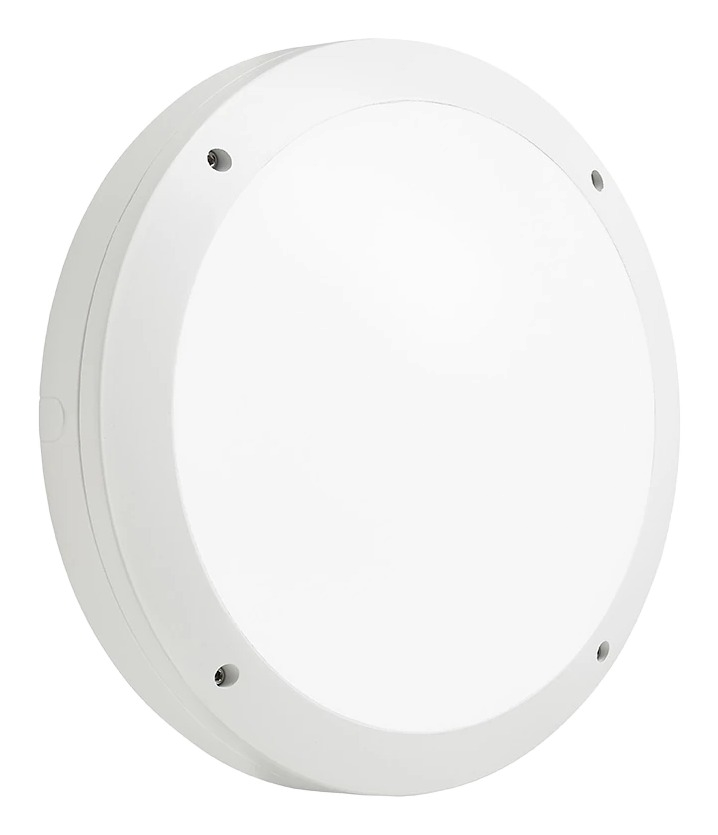

Finish: BL Black, WH White (open face only)
Supply: 230 V 50 Hz
Electrical class: Class I
Dimensions: Ø362 x 105mm; surface mounted, wall or ceiling
Warranty: 5 years

Control gear, standards & warranty

UKCA
CE
RoHS
WEEE
230 V 50 Hz
Class I
IP65
Emergency BS 5266-1

Integral driver: fixed output or DALI. Optional integral microwave presence detector (fixed output gear). Integral maintained emergency, 3 hours, two 2.3 Ah LiFePO4 cells; non-maintained by leaving out the switched live. Bluetooth (BLE) or Casambi wireless DALI emergency on request. Ambient up to +35 °C (emergency versions 0 to +25 °C).

Downloads

Datasheet XANTHOS-SLIMLINE.pdf Open Download
UKCA / CE Declaration XANTHOS-SLIMLINE-DECLARATION-OF-CONFORMITY.pdf Registered Sign in to download
Photometric files (LDT) 9 files Registered Sign in to download
Show all 9 files

Need photometric files, installation instructions or a BIM object not listed here? Ask our technical team.
